XS Scuba DIN Valve
See all XS Scuba items

XS Scuba DIN Valve

SKU: XSSDV
(5)

This item is no longer available.

Here are Similar Valves & Manifolds:

Recommended Alternatives

undefined undefined: Picture 1 regular
XS Scuba Isolation Manifold
$365.85
$359.95
undefined undefined: Picture 1 regular
XS Scuba Din/Yoke Valve Pro 3442 psi(230 bar) EANX
$75.00
undefined undefined: Picture 1 regular
XS Scuba Crossbar with Isolator
$149.00
$121.95
undefined undefined: Picture 1 regular
Thermo by XS Scuba Deluxe K-Valve
$84.00
undefined undefined: Picture 1 regular
XS Scuba Modular Pro Valve
$149.00
$121.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary material of the XS Scuba DIN Valve?

The XS Scuba DIN Valve is made from marine-grade brass, triple chrome-plated for protection against salt water corrosion.

What is the purpose of the color-coded rings on the valve's hand wheel?

The color-coded rings on the hand wheel allow you to visually check the status of the valve. A green ring indicates the valve is fully open and ready for diving, while a red ring means the valve is off.

What is the service pressure of the XS Scuba DIN Valve?

The XS Scuba DIN Valve is designed for air service only at a service pressure of 300 bars (4,350 psi). However, it can be converted to 3500 psi (240 bars) with a safety plug change.

What is the purpose of the Teflon coating on the valve seat assembly?

The Teflon coating on the valve seat assembly ensures years of smooth operation, reducing friction and wear.

What is the function of the one-piece safety plug?

The one-piece safety plug is protected within the valve body to guard against damage during transport.

jAMES C : What pressure rupture disc is installed from the factory?GENE H : The burst disc is rated for use with 3500psi service fill pressure. I am unsure what pressure will cause rupture of the disc, but greater than 4000psi and less than the 5000psi hydro test pressure .
William C : Will this valve take a screw in yoke adapter for use with HP yoke?JOHN L : I don't believe it can. I haven't been able to find one that is long enough.LUIS C : Yes.OSCAR W : No it is a 300 dinDEAN C : I need more information- please contact me at my site, Dirt E. Harry, topairgun dot com.
Shopper : I see this valve is a 7/8 thread. Does this valve come marked "air service only"? I want to use is with nitrox.WILLIAM M : I've been using mine with nitrox, but only with pre-blended nitrox, up to 36%. I wouldn't be using it as-is if I were using the partial pressure method, that is, filling with pure O2 and then adding compressed air to get my nitrox.LUIS C : You can use it with nitrox. If you want it contact me. It did not fit my tank. PO box 195586; San Jusn ; PR 00919OSCAR W : Yes it does! I rebuilt valve soon as I got it and replaced with nitrox compatible components and o2 cleanedEdward M : I Think it is marked air only, but I had mine cleaned and use it with nitrox. The shop I use is aware it's clean.... other shops never question it. It's a great valve btw.
MIKE R : whats the thread diameter?DEAN C : 7/8" x 14 UNF threads- typically fits 88 cu/ft carbon fiber 4500 psi tanks like the Magnum ForceZACHARY F : Not standard, its the smaller one for old hp steel tanks. 7/8 I think?ZACHARY F : Not standard, its the smaller one for old hp steel tanks. 7/8 I think?
Shopper : Why Did You Choose This?STEVE C : Have older tanks am going to use with sidemount

Reviews about this item

Review Summary

2019-09-11T09:26:12

Rated 5 out of 5

Great Valve!

My daughter bought some older steel tanks that were in a twin setup and when she took them apart to use as singles we found out they were 7/8" threaded tanks - something the seller in Oklahomacity failed to tell her knowing she was going to use the tanks as singles. No local shop had 7/8" threads but I found them here and they work great. I changed my 1st stage to DIN with a fitting I puchased here for a Sherwood SR2 and it works great and is a breeze to install or change back to a yoke. I highly recommentd this valve and 120 steel tanks to stay under longer and with less lead in your BCD, If you dive with someone who sips less air, get the 100 or 120 tanks to stay down with them, have some spare air if needed and wear less lead weights. I am 5'11" and the 120's fit like a charm.

Daniel R.

2018-12-13T07:34:27

Rated 5 out of 5

din valve

really like the fast open and close with colored on - off handle. very handy.

James A.

2016-01-21T08:01:34

Rated 4 out of 5

great valve for older cylinders.

A great valve for older cylinders with 7/8 threads. However, dam lawyers got their hands in it by stamping air only on it. I had it cleaned for nitrox and will have to put a sticker over the engravement. I also had to have the burst disk changed as it was designed to blow around 7500 psi which was a bit over what the cylinder would have popped at. But once installed I like it. Operation is smooth, and the color code makes it a snap to know if it's open or closed.

Edward M.

2014-09-22T20:00:00

Rated 5 out of 5

Not DIN 300 7/8" Threads

I own several of these in DIN200 with screw out insert so you can dive it YOKE as well. Best valves I own. I needed two for a pair of HP130 Steel tanks that I was breaking down from doubles to dive individually. After a couple of phone calls, we determined that I couldn't get a convertable DIN200 valve with the 7/8" threads but this DIN300 was the only way I could go. Problem is when I got it, they were 3/4" threads... there was no other options in stock or offered by Leisure Pro so I had to go with another supplier/manufacturer.

MICHAEL J.

2012-10-09T20:00:00

Rated 5 out of 5

xs scuba din valve

fast delivery and well packaged

Mark

XS Scuba DIN Valve Specifications

  • Material

    Valve Body: Chromed Brass, Seat: Teflon Coated

  • Type (Yoke, Din, Convertible)

    DIN

  • Nitrox Ready

    No, Air Use Only

  • Thread Size

    7/8"-14 UNF

About XS Scuba DIN Valve

FEATURED REVIEWS

Not DIN 300 7/8" Threads

By MICHAEL J.

I own several of these in DIN200 with screw out insert so you can dive it YOKE as well. Best valves I own. I needed two for a pair of HP130 Steel tanks that I was breaking down from doubles to dive individually. After a couple of phone calls, we determined that I couldn't get a convertable DIN200 valve with the 7/8" threads but this DIN300 was the only way I could go. Problem is when I got it, they were 3/4" threads... there was no other options in stock or offered by Leisure Pro so I had ...

View full Review

Great Valve!

By Daniel R.

My daughter bought some older steel tanks that were in a twin setup and when she took them apart to use as singles we found out they were 7/8" threaded tanks - something the seller in Oklahomacity failed to tell her knowing she was going to use the tanks as singles. No local shop had 7/8" threads but I found them here and they work great. I changed my 1st stage to DIN with a fitting I puchased here for a Sherwood SR2 and it works great and is a breeze to install or change back to a yoke. I...

View full Review

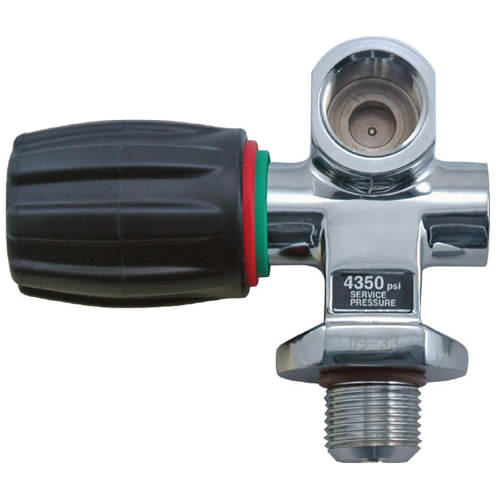

XS Scuba's DIN Valves are designed and manufactured for long life and heavy use. The DIN Valve is no exception. Valve is made of marine grade brass with triple bright chrome plating for long life protection in salt water. Precision machined from high tension brass and chrome plated valve stems for years of service and corrosion free operation. Easy grip soft rubber safety hand wheel with stainless steel insert ensures long life and large ribs make turning handle easy even when wearing gloves. This unique safety hand wheel allows the diver to visually see if the valve is completely turned on and off with a set of colored rings that appear on the valve side of the hand wheel. If you see Red" the valve is off. If you see Green" the valve is completely open and ready for diving. New hand wheel takes the guess work out of knowing your valve is fully open and ready for diving.

Valve bonnets are O-ring sealed. Valve has a dedicated DIN outlet for air service only at 300 bars (4,350 psi) service pressure. You won't need to crank" on the valve when you open and close it with the 1.5-hand wheel rotation from full-on to fully-off. The valves seat assembly is Teflon coated for years of smooth operation and a one-piece safety plug protected within the valve body guards against damage during transport. Vale has a 5/32" hex key dip tube and can be converted to 3500 psi (240 bars) with a safety plug change. All this and more makes this the valve of choice for the serious diver.

XS Scuba DIN Valve Features

  • XS Scuba DIN Valve
  • Dedicated 300 bar (4,350 psi) DIN Outlet
  • 7/8"-14 UNF Standard Inlet Threads
  • Air Service Only
  • 1.5 Hand Wheel Rotations from Fully-On to Fully-Off
  • 5/32" Hex Key Dip Tube Included
  • Service Pressure: 300 bar (4,350 psi)
  • Unique Color Coded Safety Hand Wheel
  • Unique Color Coded Safety Hand Wheel:
    Red" Valve is Off
    Green" Valve is Completely Open and Ready for Diving
  • Chrome Plated Durable Brass Valve Stem
  • Teflon Coated Valve Seat
  • O-Ring Sealed Bonnet
  • Easy Grip Rubber Hand Wheel
  • Valve Body: Marine Grade Brass w/Triple Bright Chrome Plating

Warranty Information

This product has a limited warranty of 24 months.

Best Price Guaranteed + 5% OFF

Submit a price match

30/90 FREE Returns

Worry-free returns

Sell your Used Gear

Get started in 3 easy steps

Key Features

  • Dedicated 300 bar (4,350 psi) DIN outlet
  • 7/8"-14 UNF standard inlet threads
  • Color coded safety hand wheel
  • Chrome plated brass valve stem
  • Teflon coated valve seat

What's in the box:

  • XS Scuba DIN Valve and Dip Tube
