XS Scuba Modular Pro Valve 3000 psi Right Hand Orientation

SKU: XSSMPV30R MFR: VX200R-30N-VI
$105.95
$115.00
Save: $9.05 (8%)

Key Features

  • Dive confidently with the reliable XS Scuba Pro Valve, crafted from durable chromed brass.
  • Enjoy versatility with this convertible valve, easily switching between Yoke and DIN configurations.
  • Nitrox ready up to 40%, this valve enhances your scuba experience with enriched air fills.
  • The 3/4"-14 NPSM thread size ensures a secure fit for most standard scuba tanks.
  • Experience smooth, consistent airflow with the nylon seat and Teflon-coated brass components.
  • Upgrade your scuba gear with this XS Scuba valve for enhanced safety and performance underwater.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

GERRY Y : Does the right and left valves have the same length , or width on either side?Mario C : yes twin sided
Shopper : Why Did You Choose This?JASON M : This is a good valve for sidemount

Reviews about this item

Review Summary

2014-08-26T20:00:00

Rated 5 out of 5

My Favorite Valve

I bought this to replace a cheap valve on a pony bottle that was not sealing correctly. I wanted a left-handed valve for easier hose routing, and like the red/green color coded valve that makes determining open/close status easy. I have these valves on all of my tanks and wouldn't consider anything else. They always seal well, and open and close with only about a turn and a half--much nicer than the usual valves.

Richard K.

XS Scuba Modular Pro Valve Specifications

  • Materials

    Body & Stems; Chromed Brass, Seat; Nylon w/Teflon Coated Brass

  • Type (Yoke, DIN, Convertible)

    Convertible

  • Nitrox Ready

    Yes, Up to 40%

  • Thread Size

    3/4"-14 NPSM

About XS Scuba Modular Pro Valve

FEATURED REVIEWS

My Favorite Valve

By Richard K.

I bought this to replace a cheap valve on a pony bottle that was not sealing correctly. I wanted a left-handed valve for easier hose routing, and like the red/green color coded valve that makes determining open/close status easy. I have these valves on all of my tanks and wouldn't consider anything else. They always seal well, and open and close with only about a turn and a half--much nicer than the usual valves.

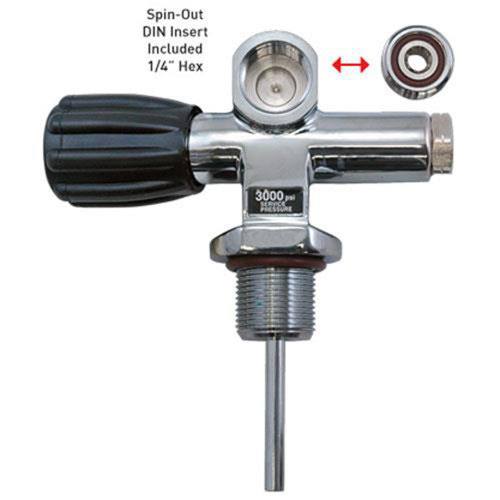

XS Scuba's Valves are designed and manufactured for long life and heavy use. The Modular Pro Valve is no exception. Valve is made of marine grade brass with triple bright chrome plating for long life protection in salt water. Precision Machined from high tension brass and chrome plated valve stems for years of service and corrosion free operation. Easy grip soft rubber safety hand wheel with stainless steel insert ensures long life and large ribs make turning handle easy even when wearing gloves. This unique safety hand wheel allows the diver to visually see if the valve is completely turned on and off with a set of colored rings that appear on the valve side of the hand wheel. If you see Red" the valve is off. If you see Green" the valve is completely open and ready for diving. New hand wheel takes the guess work out of knowing your valve is fully open and ready for diving.

Valve bonnets are O-ring sealed. You won't need to crank" on the valve when you open and close it with the 1.5-hand wheel rotation from full-on to fully-off. The valves seat assembly is Teflon coated for years of smooth operation and a one-piece safety plug protected within the valve body guards against damage during transport. The Pro Valve will accommodate both Yoke and DIN regulators with its removable 230 bar (3,336 psi) DIN insert which can be removed using a 1/4" hex key wrench. The Faber HP Series steel cylinders rated up to 3442 psi (240 bars). Valve has a 5/32" hex key dip tube and is Nitrox compatible up to 40%.

With its modular design the Modular Pro Valve can be converted to a manifold with the addition of XS Scuba's Crossbar with Isolator (SKU: XSSCWI). By having two single cylinders, one with a left hand and one with a right hand modular Pro Vale you can remove the modular plug of each valve and connect the valves together with the crossbar isolator for a double cylinder set. Once you finish diving the double rig you can easily convert the system back to single cylinder configurations allow greater versatility to your cylinders. Modular Pro Valves are available for cylinder pressures of 2400 psi (165 bars), 3000 psi (200 bars) and cylinders rated to 3442 psi (240 bars).

XS Scuba Modular Pro Valve Features

  • XS Scuba Modular Pro Valve:
  • Unique Modular Design allows Single or Double Cylinder Set Ups
  • Convertible Valve for Yoke or DIN Regulators
  • 2 Models and 3 Pressure Ratings to Choose
  • Service Pressure Aluminum: 3000 psi (200 bars) and 3300 psi (230 bars), X-Series Steel 3442 psi (240 bars)
  • 1.5 Hand Wheel Rotations from Fully-On to Fully-Off
  • Standard Yoke Outlet with Spin-Out DIN Insert Converts to 230 bar (3,336 psi) DIN Outlet
  • 1/4" Hex Key Wrench Removable DIN Insert
  • 3/4" - 14 NPSM Standard Inlet Threads
  • Chrome Plated Durable Brass Valve Stems
  • O-Ring Sealed Bonnets
  • Teflon Coated Valve Seats
  • Easy Grip Rubber Hand Wheels
  • Factory Cleaned and Nitrox Ready Up to 40%
  • Unique Color Coded Safety Hand Wheel:
    Red; Valve Off
    Green Valve Completely Open & Ready for Diving
  • Valve Body: Marine Grade Brass w/Triple Bright Chrome Plating

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Dive confidently with the reliable XS Scuba Pro Valve, crafted from durable chromed brass.
  • Enjoy versatility with this convertible valve, easily switching between Yoke and DIN configurations.
  • Nitrox ready up to 40%, this valve enhances your scuba experience with enriched air fills.
  • The 3/4"-14 NPSM thread size ensures a secure fit for most standard scuba tanks.
  • Experience smooth, consistent airflow with the nylon seat and Teflon-coated brass components.
  • Upgrade your scuba gear with this XS Scuba valve for enhanced safety and performance underwater.

What's in the box:

  • XS Scuba Modular Pro Valve with Dip Tube
