2021-06-21T07:25:21

Rated 5 out of 5

Great mid tier regulator !

During my certification I used both a Titan and a Legend reg, so I knew what to I wanted to experience in terms of performance. I purchased the core supreme because it is rated for both warm and cold water (heat sinks in place). The venturi is handy, the purge button works as it should, the lip guard can be removed if you want (be careful not to lose it). I recommend getting the Din variant as you can use it with both Din and Yoke (provided you have an adapter). The experience in breathing with this regulator is quite comfortable and relaxed. You really cannot go wrong with this regulator at that price point, it performs really well.

Larry H.

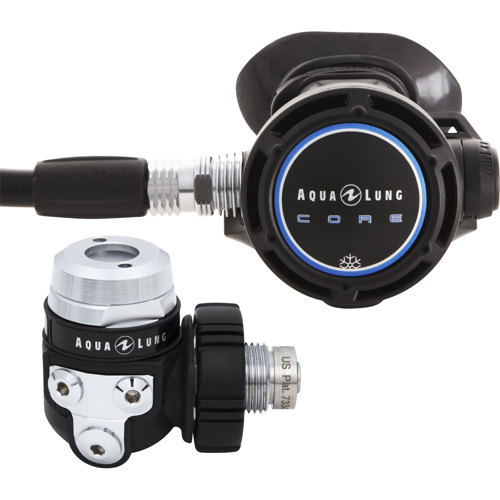

Aqua Lung Core Supreme Regulator, DIN Specifications

  • 1'st Stage Type

    Balanced Diaphragm

  • LP Ports

    Four, 3/8" UNF Thread

  • HP Ports

    Two, 7/16 UNF Thread

  • Adjustable 2'nd Stage

    Yes, Dive/Pre-Dive Venturi (Free Flow) Switch

  • Nitrox Compatible

    Yes, Up to 40% O2

  • 2'nd Stage Type

    Pneumatically Balanced Downstream Demand Valve

  • Materials

    First Stage: Chrome Plated Brass
    Second Stage: Techno-Polymer, Polyurethane, Silicone

  • Hose Length

    28.7" (73cm)

  • Hose Thread

    3/8"

  • Total Weight

    24.27 oz (688g)

  • UPC Code

    888183164128

4 Accessories for Aqua Lung Core Supreme Regulator, DIN

  • All Accessories (4)
  • Regulator Accessories (3)
  • Scuba Tools & Tool Kits (1)

About Aqua Lung Core Supreme Regulator, DIN

FEATURED REVIEWS

Great mid tier regulator !

By Larry H.

During my certification I used both a Titan and a Legend reg, so I knew what to I wanted to experience in terms of performance. I purchased the core supreme because it is rated for both warm and cold water (heat sinks in place). The venturi is handy, the purge button works as it should, the lip guard can be removed if you want (be careful not to lose it). I recommend getting the Din variant as you can use it with both Din and Yoke (provided you have an adapter). The experience in breathing wi...

View full Review

The Aqua Lung Core regulator's amazing breathing, which is rated as superior on the ANSTI breathing machine, coupled with its generous features, at an attractive mid-range price, provides the best value of any regulator offered today. The Core comes standard with Aqua Lung's unique, patented, auto-closure device (ACD) which seals water out. The ACD keeps corrosive water out of the first stage inlet by automatically closing as the Core is removed from the cylinder valve. This prevents internal lubrication from washing away and is safer for elevated percentages of oxygen. An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.The balanced diaphragm chrome plated marine brass first stage provides superior, consistent performance and the pneumatically-balanced second stage results in smooth, easy breathing.

Available in DIN with a service pressure of 300 bars (4350 psi) maximum. The T-shape of the first stage optimizes the location of the 4 MP ports and 2 HP ports. The Core uses parts that are common to other Aqua Lung models for easier servicing. The easy-to-grip venturi lever prevents unwanted free-flow at the surface while giving a performance boost at depth. A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water. The Supreme Versions are: Specially adjusted to resist freezing. Equipped with a lip shield on the second stage to keep lips warm. The Core regulator is compatible with EAN 40 new, out of the box. Equipped with Aqua Lung's patented Comfo-Bite mouthpiece along with a reusable mouthpiece clamp. The regulator weighs 24.27 oz. (688 g) and comes with a 28.7" (73cm) low pressure 3/8" threaded hose and owner's manual.

Aqua Lung Core Supreme Regulator, DIN Features

  • Core Supreme Regulator, DIN:
  • Amazing Breathing, Rated Superior-On ANSTI Breathing Machine
  • Mid-Range Price, Provides Best Value of Any Regulator Offered Today
  • Comfo-Bite Mouthpiece
  • Aqua Lung's Unique, Patented, Auto-Closure Device (ACD)
  • Nitrox Ready Out-of-the-Box
  • Hose: 28.7" (73cm) 3/8" Threaded
  • Weight: 24.27 oz. (688 g)
  • Owner's Manual
  • First Stage: Aqua Lung Core
  • Compact Balanced Diaphragm First Stage
  • Chrome Plated Marine Grade Brass Construction
  • Inherently Environmentally Sealed to Keep-Out Contaminates
  • Delicate Internal Parts Not Exposed to Contaminants: Salt, Sand, Chlorine or Pool Acids
  • Secondary Environmental Diaphragm Membrane:
    First Stage Completely-Sealed-Off
    Dry Ambient Pressure Chamber
    Second-Layer of Corrosion Resistance & Prevention of Freezing In-Cold-Water-Use
  • Auto-Closure Device (ACD):
    Keeps Corrosive Water Out-of-First Stage Inlet
    Ensures Top Performance
    Added Protection when Rinsing & In-Storage
    First Stage Maintains Peak Performance Over-Time
    Retains Internal Lubrication Longer
    Safer for Nitrox Use
  • T-Shape: Less Brass Lighter Weight, More-Compact
  • Four, 3/8" UNF LP Ports
  • Two, 7/16 UNF HP Ports
  • Ports Angled for Optimum Hose Configuration
  • Second Stage: Aqua Lung Core
  • Pneumatically Balanced Design
  • Delivers Gas at Constant Pressure
  • Easy Work-of-Breathing
  • Breathing Effortless Independent of Depth or Tank Pressure
  • Venturi Switch:
    Helps Prevent Free-Flow
    Works at Surface & when Regulator Out-of-Diver's Mouth
    Easy-to-Grip Venturi Lever
    Performance Boost at Depth
  • 2 - Comfo-Bite Mouthpieces Installed, Standard w/Bite Wings in Box
  • Mouthpiece Reduce Jaw Fatigue
  • Equipped w/Lip Shield, Keeps Lips Warm

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Amazing Breathing
  • Attractive Mid-Range Price
  • Comfo-Bite Mouthpiece
  • Balanced Diaphragm 1'st Stage
  • Pneumatically Balanced 2'nd Stage
  • Venturi Switch

What's in the box:

  • 1'st Stage
  • 2'nd Stage Regulators
  • Low Pressure Hose
  • Owner's Manual
  • MFG Limited Lifetime Warranty
