SeaLife SportDiver Ultra Underwater Smartphone Housing

SKU: SLFSUSH MFR: SL405

Key Features

  • Capture stunning underwater photos & videos with your smartphone using this housing.
  • Explore depths down to 130' (40m) with this rugged, reliable smartphone underwater housing.
  • Enjoy easy access to camera functions via simple controls for effortless shooting underwater.
  • Crafted from durable polycarbonate, stainless steel, & aluminum for long-lasting performance.
  • The optical glass lens port ensures crystal-clear images with your smartphone's camera lens.
  • Use the vacuum pump system for leak prevention, ensuring your phone stays safe and dry.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Protect+.* Learn more

1 Year

$27.99

2 Year

$54.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Tom A : Does this work with the Pixel 9?IAN R : Yes!
Shopper : Would this fit the new Samsung s25 unltra?Miguel L : Yes, the case will fit the Samsung S25 Ultra.
ANDREW B : Will this housing work with Google Pixel 5a phone?darrick c : Hello Andrew, yes, this would work for a Pixel 5A: <a href="https://www.sealife-cameras.com/compatibility-chart/google-pixel/" target="_blank">https://www.sealife-cameras.com/compatibility-chart/google-pixel/.</a>
Mark B : Hello, What is the width of the optical port on the KRH05? I am wondering if it will fit both lenses of the XREAL Beam Pro phone style camera. Those lenses are separated by 50mm. I see that the older model KRH05 has large enough internal dimensions to fit the XREAL Beam Pro. The KRH08V2 does not.darrick c : Hello Mark, if the phone is not listed on the manufacture site it would not work in the housing. Here is the measurement of the internal space: 6.49 x 3.15 x 0.38" (165 x 80 x 9.7mm).
JOE P : What is the difference between this new Ultra model and the previous model that costs $50 less?darrick c : Hello Joe, the new version will fit the newer and larger style phone that are currently out on the market. If you phone fits in both versions than yes, go with the older model and save money.

Reviews about this item

Review Summary

2025-07-09T04:41:46

Rated 2 out of 5

Needs improvement! Pics ok if system works.

Rubber tabs in housing will not hold phone. If you bump the unit, the phone becomes dislodged. This includes jumping into water. Forget pics on that dive... You will have to fabricate some extra hold downs, such as using rubber tubing, fuel line pieces or similar to keep phone in place. The included mounts only hold 2 sides of phone plus a spring piece on top. The extra rubber is needed between the unmounted side of the phone and housing. You will also need some pieces between the phone & top cover to keep it from moving towards cover from the base of the housing. The foam pieces to block the gap to prevent light from coming in around the sides of the camera/phone do not stick very well, nor are they big enough. They need various sizes to cure this. Other than the above, the idea is sound, but if there are issues with connectivity, you have to restart the camera & housing which involves opening up the unit Not good if on the water.

David M.

2024-07-22T19:11:22

Rated 4 out of 5

Modest setup grants you a soundly-made device with good picture quality and settings (NOTE: This is a review of the original, smaller model)

(*NOTE:* This is a review of the original model) I hadn't considered owning an underwater phone housing, but chanced upon the Sportdiver in a raffle. I'm thrilled to have it, since my 2011 Reefmaster Mini camera is no longer supported. I had to acclimate to the size and simple setup of the Sportdiver, but love its secure design, photo quality, and settings. My concerns were eased over some sink tests, outdoor experience, and assuring e-mails with SeaLife representative Sven Harms. Should this item interest you, inform yourself first. SeaLife has a phone compatibility chart on its website. Though my Moto-G Play phone was listed too large to fit, it does! Its true dimensions are marginally smaller than those the manufacturers provided for SeaLife. Don't leave that to luck. Their Ultra model can fit some larger phones, but has a different window orientation. Even a few phones that fit may not have supported operating systems. In the Box: As pictured, you'll get the trappings to power the device and keep it dry for your first few uses. I'm particularly pleased with the wrist strap and removable red filter, but feel the kit could have come with a small brush for first-time owners. It can be difficult to clear fine sand grains from the buttons or twist lock without one. If you intend to make regular use of this housing, you'll eventually need more moisture munchers, batteries, and occasionally O-Rings. One muncher lasted four of my dives. Size and Handling: The Sportdiver is larger than some simpler submersible point-and-shoot cameras and won't fit into a small belt pouch as they do. That allows such a large range of phones to properly wear it, but also makes stabilizing it a two-handed matter for me. Even so, the wrist strap and cleverly contoured front surface make it easy to grasp. It isn't heavy, but buoyancy may vary by phone model. Keep the Sportdiver tethered or clipped to you at all times-carelessness may cost you two devices. App and Setup: Likewise, the app and software are easy to grasp. The manual and on-screen prompts are clear, but you should practice setup and test it in a sink or pool before using it in the wild. Try to reach your dive site a few minutes earlier to ready the housing without haste. I've had no leak issues, but the Sportdiver's alarm is definitely voluble. Don't be alarmed to hear it when you dry and open the unit after use. There's a little delay in button response and menu navigation when you use this Bluetooth device, but don't hammer the buttons impatiently. You won't have the option to capture video with too little memory. I try to have 700MB-1GB open when my phone dives in this housing. Settings: The Sportdiver's price rivals that of some good introductory underwater cameras (esp. if used,) but you indirectly upgrade it any time you get a suitable phone with stronger cameras. This captures much clearer and wider pictures than my old Reefmaster Mini, with more thorough settings like ISO, White Balance, Manual Focus, and Shutter Speed. I especially enjoy the three-shot-burst mode, which eases timing with moving subjects. If you're wont to learning and exploring these settings, you only stand to improve! Just know that a few shooting modes and features are only available to certain operating systems or phone camera builds. I don't think it can use your phone's flash, but such an accessory is available. But before even that, your own skills and site conditions are factors. Get a handle on your position and buoyancy, and you'll have time to calmly observe these settings and their effects. The best learning chances may come while snorkeling in clear water or diving with an air supply. *Tip: The manual doesn't mention it, but if you pull the shutter while in Settings mode, you return directly to Photo mode. Issues: Over my four present uses, the Sportdiver's seal has been faultless! But sand became lodged beneath the buttons on my first use, disabling some of them for the dive. This may only be an issue for shore divers or those near muddy bottoms. I remedied it with an air duster and a small brush, and it thankfully hasn't recurred. Take care never to lose the valve cap--if you did, the device couldn't seal. I'm happy with the design, but perhaps the cap could use a small tether. The red filter sometimes drifts and blocks my shots while detached. You may want to pocket it when you don't need it. Construction: I trust the solid plastic construction of the device. Although its large window has a screen protector, I'd never want to drop it--I've seen no mention of drop resistance. Also, take care not to subject it to harsh, direct sunlight for long. I'm eager to improve my use of this phone dive suit throughout the season. I respect its potential not only in recreation and study, but as a means of showing freelance clients property conditions. Thanks for the superb prize, SeaLife and <a href="http://Scuba.com," target="_blank">Scuba.com,</a> and thanks for your polite and professional patience, Sven!

Tykwon G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Dive into your next Adventure

Accidents happen. Purchase a protection plan to keep your favorite Scuba.com gear protected from covered accidental damage and failure.

Repair or Replacement

Repair or Replacement

If your equipment stops working, we'll repair it at no additional cost! And if we can't fix it, we'll replace it!

Accidental Damage

Accidental Damage

Protection for your equipment from unintentional breaks, drops, rips, and spills.

Failure Protection

Failure Protection

When your gear experiences a mechanical or electrical failure, you’re covered.

Zero Deductible

Zero Deductible

We’ll never charge you a deductible after the purchase of a plan. No fees. No deductibles. No hidden costs.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy with 24/7 online support.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Protect+ powered by Extend is available for purchases to customer in the United States. Not available for purchases internationally or U.S territories.

SeaLife SportDiver Ultra Underwater Smartphone Housing Specifications

Smartphone Housing

Smartphone Housing

Jump to...
  • Material

    Polycarbonate housing with 304-316 stainless steel and hard-anodized T6061-grade aluminum metal hardware

  • Compatible phones

    Works with iPhone, Samsung Galaxy and most other Android phones

  • Depth rating

    130' (40m)

  • Power

    2x AAA batteries (alkaline or NiMH)

  • Battery Life

    50 hours

  • Two LED Indicators

    Leak Alarm pressure indicator: Flashing green when vacuum pressure has not been applied; Solid green when vacuum pressure is okay; Flashing red if a leak is detected
    Power / Wireless connection status: Flashing blue when powered on and not wirelessly connected; Solid blue when powered on and wirelessly connected

  • Wireless technology

    Bluetooth Low Energy (LE)

  • App language

    English

  • Instruction manual

    Includes printed Instruction Manual in English. Spanish, German, French, Italian and Dutch languages may be downloaded from SeaLife website

  • Controls

    Shutter, Mode, Up (Zoom / Focus +), Down (Zoom / Focus -), Playback and Camera Settings

  • Operating temp

    33 to 110 Degree F (1 to 38 Degree C)

  • Storage temp

    33 to 110 Degree F (1 to 38 Degree C)

  • O-ring

    Main O-ring (1): TPE rubber material
    Vacuum Check Port O-rings (2): Silicone rubber material
    Note: O-rings require silicone lube (included). Replacement O-ring kit part # is SL40010

  • Lens port

    Optical glass lens port with anti-reflective coating applied to inner lens surface
    Lens frame allows attachment of color-correction filter while underwater

  • LCD window

    Optical grade polycarbonate full-screen display window (Screen Protector available - sold separately)

  • Tripod mount

    Three standard 1/4-20 tripod threads to attach accessories

  • Lanyard

    SeaLife deluxe padded lanyard with swiveled attachment clip

  • Buoyancy

    Positive 2.8 oz (80g) UW housing only - with batteries, red filter and Moisture Muncher
    Subtract weight of phone to calculate total UW buoyancy in seawater

  • Certification

    CE, ROHS, FCC (FCC ID: 2ACKF-SL400)

  • Country of Origin

    Designed/Engineered in USA, Made in China

SportDiver App for iOS

Jump to...
  • App compatibility

    Supports smartphones with current and previous operating system installed, which is subject to change as determined by Apple or Google

  • Modes

    Photo - captures single image with each push of the shutter
    Video - Push shutter to start/stop video recording
    Settings - Adjust camera settings (See below)
    Playback - View photos and videos

  • iOS Settings

    Lens: Select single or multiple lenses (Depends on phone model)
    Focus: Automatic or Manual
    White Balance (WB): Auto or manual (3000 to 8000K) in 100K increments
    Tint: +150 to -150 color tint in 10-unit increments
    Exposure Value (EV): -3.0 top +3.0 in .3 stop increments

  • iOS Settings (Contd.)

    RAW+JPEG: Capture RAW image file (Depends on phone model)
    Video Resolution: 4K, 1080p or 720p
    Power Save: Off, 1 min, 2 min or 5 min. (Push any button to wake-up)
    Display Brightness: From 10% to 100%
    Leak Alarm: On or Off (Audio alarm and warning message if leak is detected)
    On-screen data: Displays exposure settings (can be enabled or disabled)

  • Android Settings

    Lens: Select single or multiple lenses (Depends on phone model)
    Focus: Automatic or Manual
    Shutter Speed: Auto or manual (1/30 to 1/2000 sec)
    ISO: Auto or manual (50 to 3200)
    Exposure Value (EV): -3.0 top +3.0 in .3 stop increments

  • Android Settings (Contd.)

    White Balance (WB): Auto, Manual, UW Deep, UW Shallow, Daylight, Cloudy
    Manual WB: (2000 to 1000K) in 100K increments
    3-Shot Burst: Captures 3 images within 1 second
    Photo Resolution: Select from phone's native photo resolution settings
    Video Resolution: 4K, 1080p or 720p
    Color Effects: Off, Black & White, Negative, Sepia

  • Android Settings (Contd..)

    RAW+JPEG: Capture RAW image file (Depends on phone model)
    Power Save: Off, 1 min, 2 min or 5 min. (Push any button to wake-up)
    Display Brightness: From 10% to 100%
    Leak Alarm: On or Off (Audio alarm and warning message if leak is detected)
    On-screen data: Displays exposure settings (can be enabled or disabled)

  • Important

    Some settings may not be available depending on the phone make/model
    Some settings are blocked-out (not accessible) depending on other conflicting settings
    Lens selection setting may not include all available phone lenses
    Telephoto lens is available for Android phones
    Check Apple App Store and Google Play store for any SportDiver app updates

  • Delete Function

    Yes - push OK button twice to delete selected file in Playback mode

  • Battery Level Indicator

    Indicates remaining battery life of phone and underwater housing

  • Zoom

    Yes - from 1x to 10x in 0.5x increments

  • File Location

    Photos and videos are saved to phone's Photos app for editing and sharing

Battery

Jump to...
  • Battery info

    Required, included

  • Battery type

    AAA

  • Battery material

    Alkaline

  • Battery quantity

    2

Physical

Jump to...
  • Dimensions

    External: 8.4 x 4.9 x 2.2" (213.1 x 125.7 x 54.8mm)
    Internal: 6.49 x 3.15 x 0.38" (165 x 80 x 9.7mm)

  • Weight

    22.6 oz (641g) UW housing only - without batteries, filter, Moisture Muncher
    24.0 oz (680g) UW housing only - with batteries, filter, Moisture Muncher, 10x med. grip tabs

  • UPC Code

    077068414056

About SeaLife SportDiver Ultra Underwater Smartphone Housing

Removable Underwater Color Filters
Easy Control
Locking & O-Ring to keep moisture out
Dual Leak Alarms, Anti-fog
Access Popular Camera Settings

The SeaLife SportDiver is a compact and lightweight underwater housing for smartphones. The SportDiver housing will allow divers to take photos and video with their smartphone down to 130 feet or 40 meters. The SportDiver can encase most Android models and all iPhones from iPhone 8 through iPhone 15 Pro Max. The heavy-duty housing is constructed of Polycarbonate, stainless steel, aluminum and optical grade glass. And while the SportDiver housing is "heavy duty", it is not heavy, weighing less than 1.5 pounds (641 grams), and is lightweight for travelling and offers almost neutral buoyancy in water depending on which smartphone model is used.

The SportDiver is easy to hold and use and offers a large shutter lever and rear control buttons for easy operation, even with dive gloves. Snorkelers and Divers can get more creative with their photos or video shot by using advanced camera settings. Adjust Zoom, Exposure (EV), Auto/Manual Focus, White Balance, Tint, Lens selection, RAW+JPEG mode, Live Photo and Background Blur (on available phone models).

The SportDiver housing includes the free SportDiver app, unlike other smartphone housing apps, there are no annoying in-app purchases or ads. You can easily switch between photo and video mode. The SportDiver App uses your phone's camera technology native to each phone model. The app supports the present and previous versions of OS, the app is updated according to new versions of the OS. The App Playback mode shows full size photos and videos with vertical thumbnail strip to easily locate your images. Videos start playing automatically when selected. All files are also saved to the phone's camera roll. The SportDiver housing automatically connects to your smartphone and the SportDiver app using Bluetooth Low Energy (LE) 5 wireless technology. No cables or buttons touch the phone and offers ultra-low power consumption for both the phone and the housing which is powered by two AAA batteries that last over 50 hours of continuous use.

For enhanced imaging results, a removable underwater color-correction filter is included with the SportDiver which restores natural underwater colors. The filter easily attached or removes underwater and includes a safety tether to prevent loss. The SportDiver housing features triple 1/4-20 tripod mounts which mounts to any light or light tray with standard tripod threads such as SeaLife's range of Sea Dragon underwater photo/video lights.

For the phone's safety and protection, the SportDiver has a sturdy holding spring and rubber grip tabs that securely hold the smartphone in place and add shock-protection. The SportDiver has "Dual Leak Alarms" which include an internal moisture alarm and a vacuum pressure alarm which alert the diver with on-screen warnings, audio and LED signal in the unlikely event the waterproof seal is compromised and there's a loss of housing pressure or moisture is detected. The door of the SportDiver is sealed with a TPE O-ring and a robust cam-lock sealing latch that easily and securely locks waterproof door. To prevent interior fogging from residual moisture, the SportDiver uses the anti-fogging agent "Moisture Muncher" capsule which prevents fogging and internal condensation.

Important: Some settings may not be available depending on the phone make/model. Settings may be blocked out or not accessible depending on conflicting settings. For example, Portrait (background blur) setting is only available with multi-lens iPhones. Lens selection setting may not include all available phone lenses; the telephoto lens not available for Android phones.


Features

Works with iPhone, Samsung Galaxy and most other Android phones.
iPhone: iPhone 8 through iPhone 15 Pro Max
Android: Samsung: Galaxy S9 and up & most other Android phones

Important: Some settings may not be available depending on the phone make/model. Settings may be blocked out or not accessible depending on conflicting settings. Lens selection setting may not include all available phone lenses; the telephoto is available for Android phones.

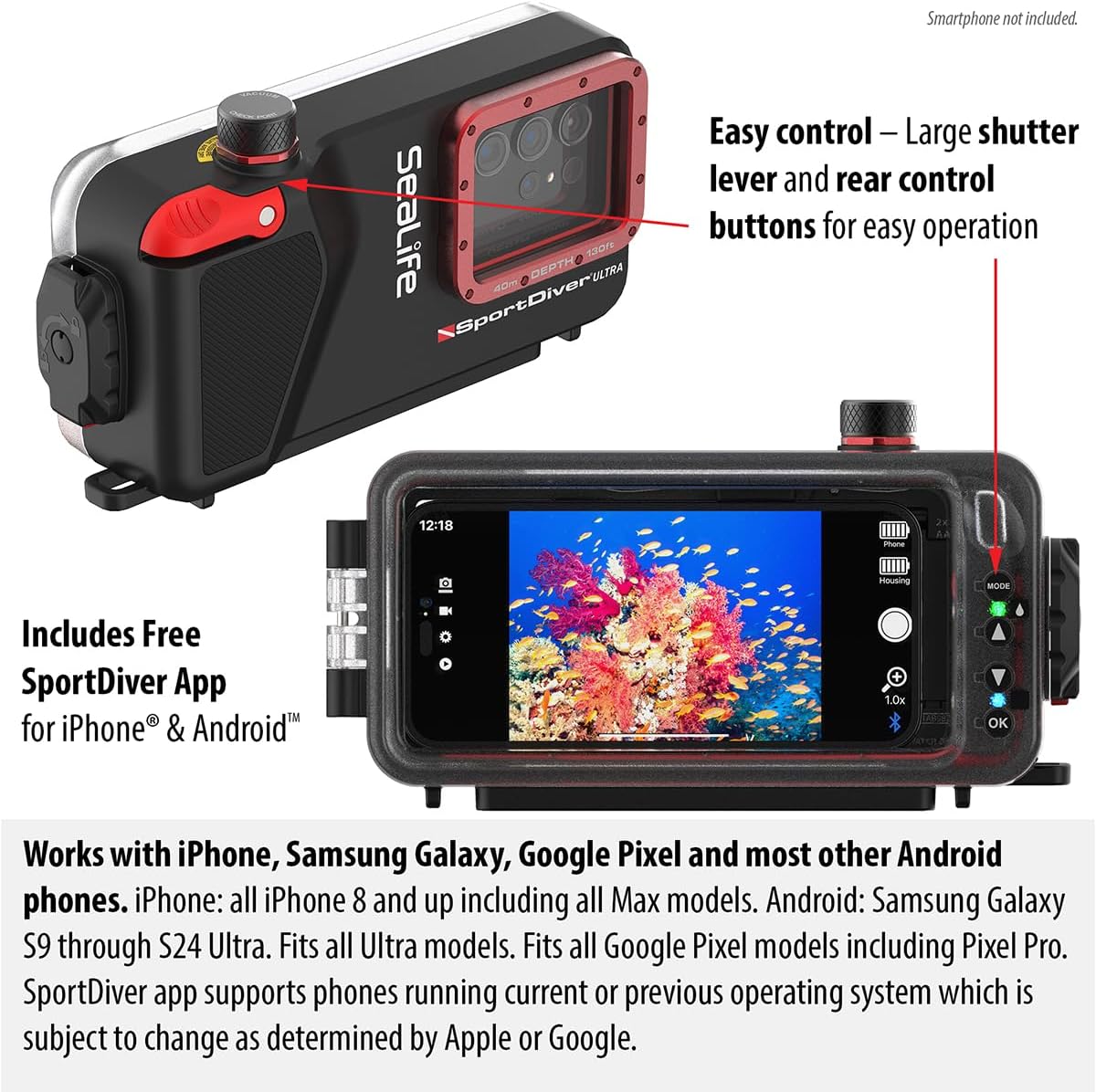

Easy control
Large shutter lever and rear control buttons for easy operation, even with dive gloves

Access popular camera settings
Get creative with your shot by using advanced camera settings. Select lens, video resolution, adjust zoom, exposure, manual focus, white balance, RAW+JPEG mode, and more. Note: Some settings may not be available depending on the phone make/model

Shoot photos or record video
Easily switch between photo and video mode, App uses the phone's native camera technology

Dual Leak Alarms
Includes internal moisture sensor and internal vacuum pressure alarm; Alerts diver with on-screen warning, audio and LED signal in the unlikely event the waterproof seal is compromised

Removable underwater color-correction filter restores natural underwater colors

Includes SeaLife SportDiver camera app designed by SeaLife
Intuitive layout and controls that utilizes the smartphone's native camera technology. Developed by SeaLife - Not a 3rd party app developer. Free download available in App Store or Google Play Store. No annoying in-app purchases or ads, unlike other underwater smartphone housing apps

Playback photos and videos
App Playback mode shows full size photos and videos with vertical thumbnail strip to easily located your shots. Videos start playing automatically when selected. All files are also saved to phone's photo app

Bluetooth wireless technology
SportDiver Housing automatically connects to your smartphone using Bluetooth Low Energy (LE) 5 wireless technology. No cables or buttons touch the phone. Ultra-low power consumption

Triple 1/4-20 tripod mounts
Mounts to Flex-Connect or any tray with standard tripod threads<

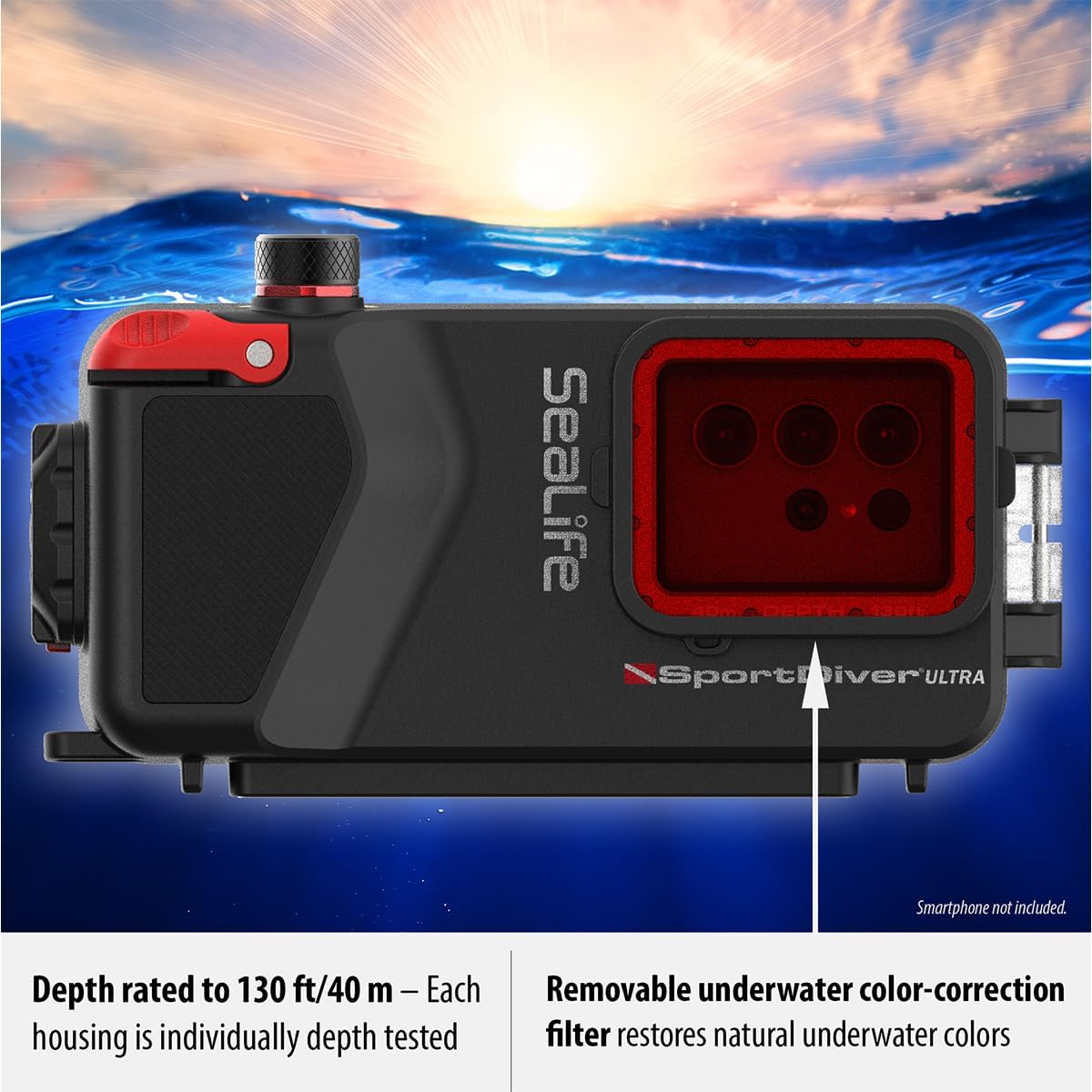

Depth rated to 130ft / 40m
Each housing is individually depth tested

SeaLife SportDiver Ultra Underwater Smartphone Housing Features

  • Compatible with iPhone 8 to iPhone 15 Pro Max and Samsung Galaxy S9 and newer
  • Supports current and previous iOS and Android operating systems
  • Easy controls with large shutter lever and rear buttons
  • Dual Leak Alarms with moisture and pressure sensors
  • Removable color-correction filter for natural underwater colors
  • Proprietary SeaLife SportDiver app as intuitive controls
  • Playback mode for easy photo and video review
  • Bluetooth LE 5 ensures efficient connectivity
  • Triple tripod mounts for flexible mounting

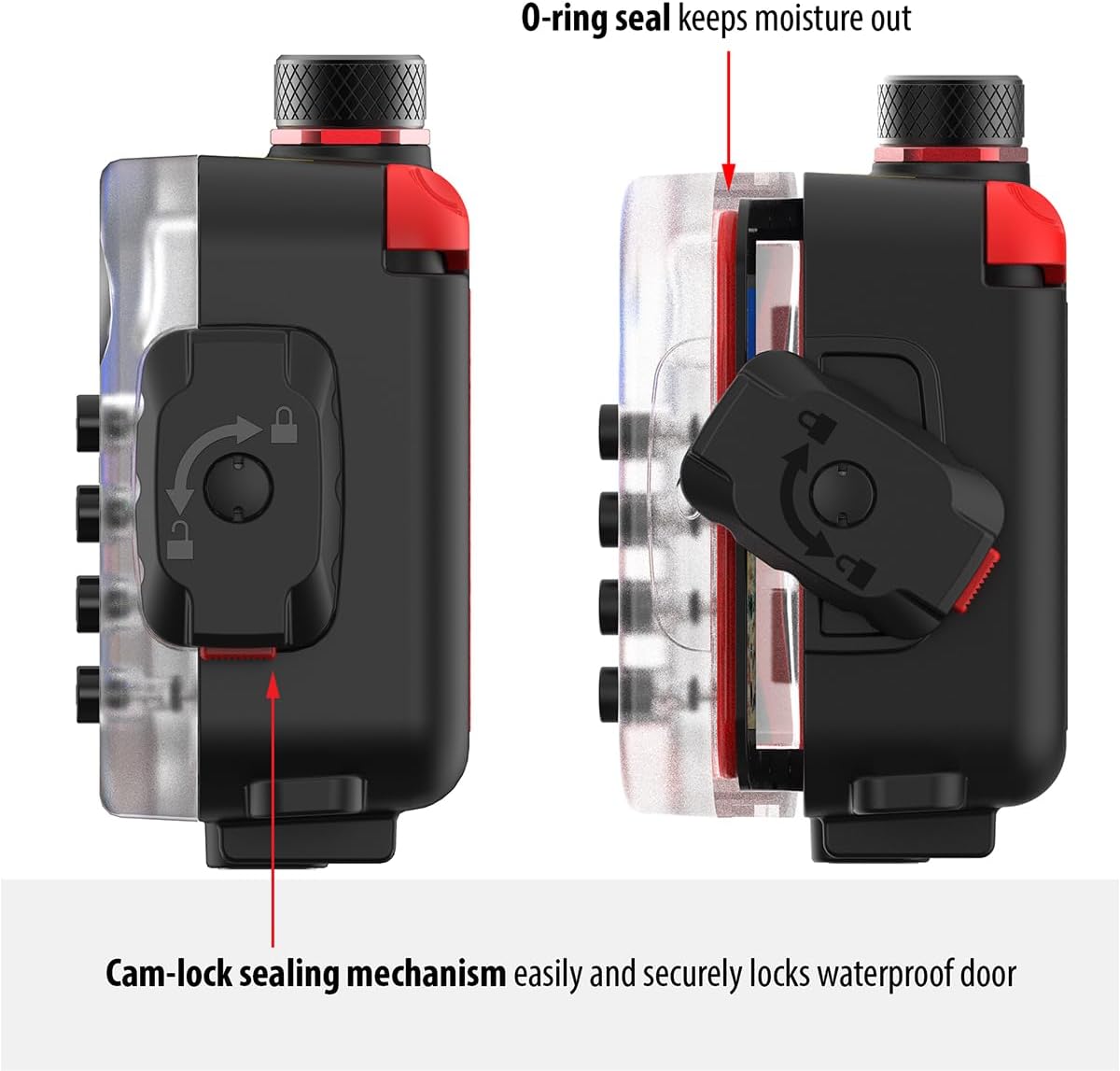

  • Secure cam-lock sealing mechanism
  • Over 50 hours of use with two AAA batteries
  • Anti-fog design as Moisture Muncher capsule
  • Depth tested to 130 feet for reliable underwater performance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning underwater photos & videos with your smartphone using this housing.
  • Explore depths down to 130' (40m) with this rugged, reliable smartphone underwater housing.
  • Enjoy easy access to camera functions via simple controls for effortless shooting underwater.
  • Crafted from durable polycarbonate, stainless steel, & aluminum for long-lasting performance.
  • The optical glass lens port ensures crystal-clear images with your smartphone's camera lens.
  • Use the vacuum pump system for leak prevention, ensuring your phone stays safe and dry.

What's in the box:

  • Sportdiver Underwater Smartphone Housing
  • Red Color-Correction Filter
  • Vacuum Pump
  • Rubber Grip Tabs
  • Spare O-Rings
  • O-Ring Lubricant
  • O-Ring Removal Tool
  • Deluxe Wrist Strap With Clip
  • Moisture Muncher Sampler Pack (1 Capsule)
  • 2x AAA Alkaline Batteries
  • EVA Carry Case
