Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw & Industrial Case

SKU: QYSFV6SURKCC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Joe H : Is it possible to add a longer tether and get down to 400 ft depth?darrick c : Hello Joe, no, the manufacture does not have that option as a set-up for these.
Shopper : Does this have any sonar attachments?darrick c : Hello, not at this time., if you are looking for sonar you would need to look at different products.
Shopper : what about accumulator?Mario C : not aware of any
Shopper : Why Did You Choose This?RYAN O : newer model with great price for the kit

Reviews about this item

Review Summary

Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw & Industrial Case Specifications

Camera
  • Sensor

    1/2.3" SONY CMOS

  • Effective Pixels

    12MP

  • ISO Range

    100-6400 in Auto/Manual

  • Field of View

    166 Degree

  • Aperture

    f/2.5

  • Minimum Focusing Distance

    0.4 m

  • Electronic Shutter Speed

    5-1/5000 second

  • Burst shooting

    1/3/5/7/10 frames

  • White Balance

    2500K - 8000K

  • (WB)

    Auto/Manual

  • Exposure Compensation

    - 3 EV - + 3 EV

  • Photo Resolution

    4:3: 4000 x 3000

  • Photo Format

    JPEG, DNG

  • Video Resolution

    4K UHD: 25/30 fps
    1080P FHD: 25/30/50/60/100/120 fps
    720P HD: 25/30/50/60/100/120/200/240 fps

  • Video Format

    MPEG4- AVC/H.264, HEVC/H.265

  • Stabilization

    EIS (Electronic Image Stabilization)

  • Internal Storage

    64 GB standard

Camera: LED Beams

Jump to...
  • Brightness

    4000 lumen

  • CCT

    5500 K (Correlated Color Temperature)

  • Beam Angle

    120 Degree

  • Dimming

    3

  • Thrusters

    6 (4x Vector + 2x Horizontal)

  • Maneuverability

    6 DOF (Degree of Freedom): Moving: left & right, up & down, forward & backward, Rotation: 360 Degree pitch, 360 Degree roll, 360 Degree yaw

  • Posture Lock

    Able to lock the +/- 0.1 Degree pitch angle or +/- 0.1 Degree roll angle and moving in any direction

  • Hovering Accuracy

    Able to keep the ROV suspending in +/- 1 cm

  • Speed

    Maximum 3 knots (1.5 m/s) in still water

  • Depth Rating

    328' (100m)

  • Operating Temperature Range

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Rated Capacity

    9000 mAh/97.2Wh

  • Dimension

    15 x 13 x 5.6" (383 x 331 x 143mm)

  • Weight

    8.6 lbs (3.9kg)

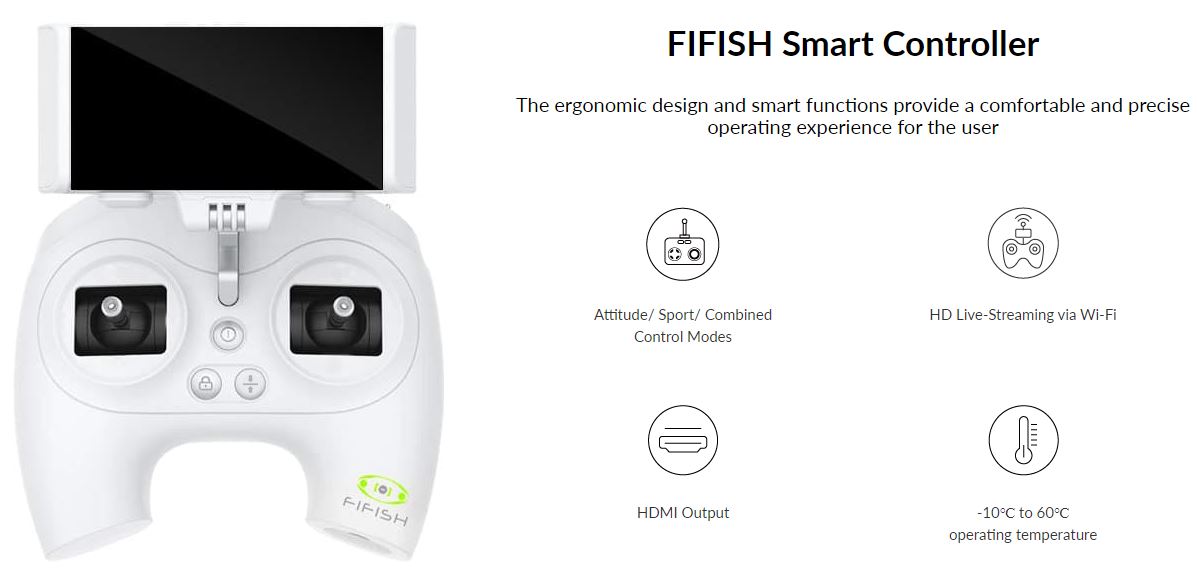

Remote Controller

Jump to...
  • Wireless

    Wi-Fi supported

  • Battery Life

    Up to 4 hours

  • Copy & Download

    Micro SD card Slot
    Format in FAT32 (no greater than 32GB)
    Format in EXFAT (no greater than 64GB)

Teather

Jump to...
  • Breaking Force

    80 kgf

  • Length

    Standard 328' (100m) on Spool
    Customized Accepted

Charger/AC Adapter

Jump to...
  • ROV

    Input: 100-240 V, 50/60 Hz, 1.3 A MAX
    Output: 12.9 V = 6A

  • RC

    Input: 100-240 V, 50/60 Hz, 0.5 A MAX
    Output: 5 V = 3A

  • Capability

    Hold up to 328' tether (100m)

  • System

    iOS 10.0.0 or later
    Compatible with iPhone 6S or later
    Android 5.0 or later
    Compatible with Samsung S7 or later, Huawei Mate 9 or later, Mi Mix 2 or later

  • LIVE-Streaming

    720P, 25/30fps
    480P, 25/30fps

  • Stream User NO.

    Max 2 Devices

Robotic Claw

Jump to...
  • Clamping force

    100N

  • Towing force

    100N

  • Clamp lock

    Yes

  • UPC Code

    761700444975

About Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw & Industrial Case

Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw

Qysea FIFISH V6 Underwater ROV Kit

The Qysea FIFISH V6S combines all of the award-winning features of the FIFISH V6 with a substantial upgrade in battery capacity and the addition of a compact and powerful robotic claw.

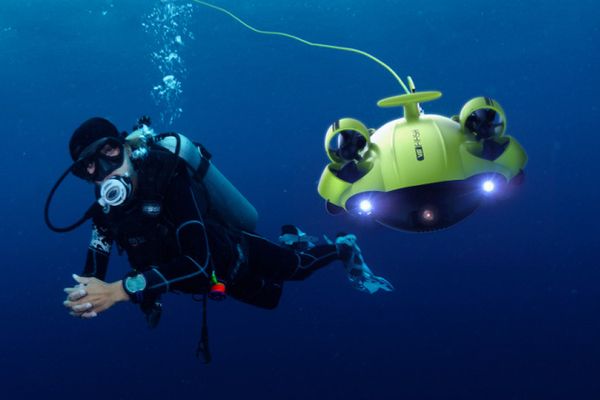

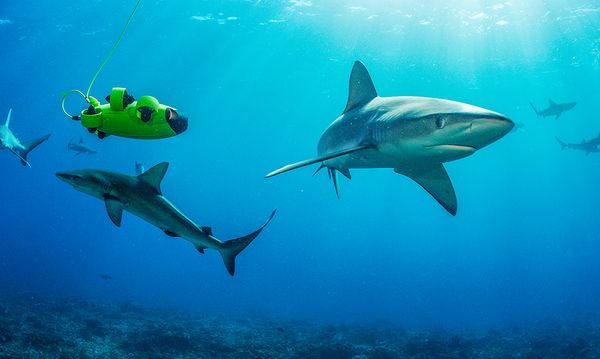

Imagine you dive down across the ocean landscapes, or seamlessly glide through the waters with manta rays, all the while broadcasting Live. The dream is now a reality! The world’s first 4K omni-directional consumer underwater drone, the FIFISH V6, and now FIFISH V6S, are made to take on all your underwater exploration.

Upgrade Your Underwater Toolbox

FIFISH V6S's neutrally bouyant robotic arm delivers a clamping and towing force of 100N, with the capability to retrieve large and heavy objects with the rugged tether cable.

World’s First 4K Omni-directional Consumer Underwater Drone

Enhanced Power for Long-Lasting Dives

The V6S is powered by Premium Panasonic batteries that enable extended dive times of up to 6 hours and reduce downtime with safe and quick charging capabilities.

Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw

World’s First 4K Omni-Directional Consumer Underwater Drone

Fishing, exploring, photographing, treasure hunting, study marine life, filming. Great for anyone who wants to explore the underwater world.

Qysea FIFISH V6 Underwater ROV Kit

Complete Freedom of Movement

World’s First 4K Omni-directional Consumer Underwater Drone

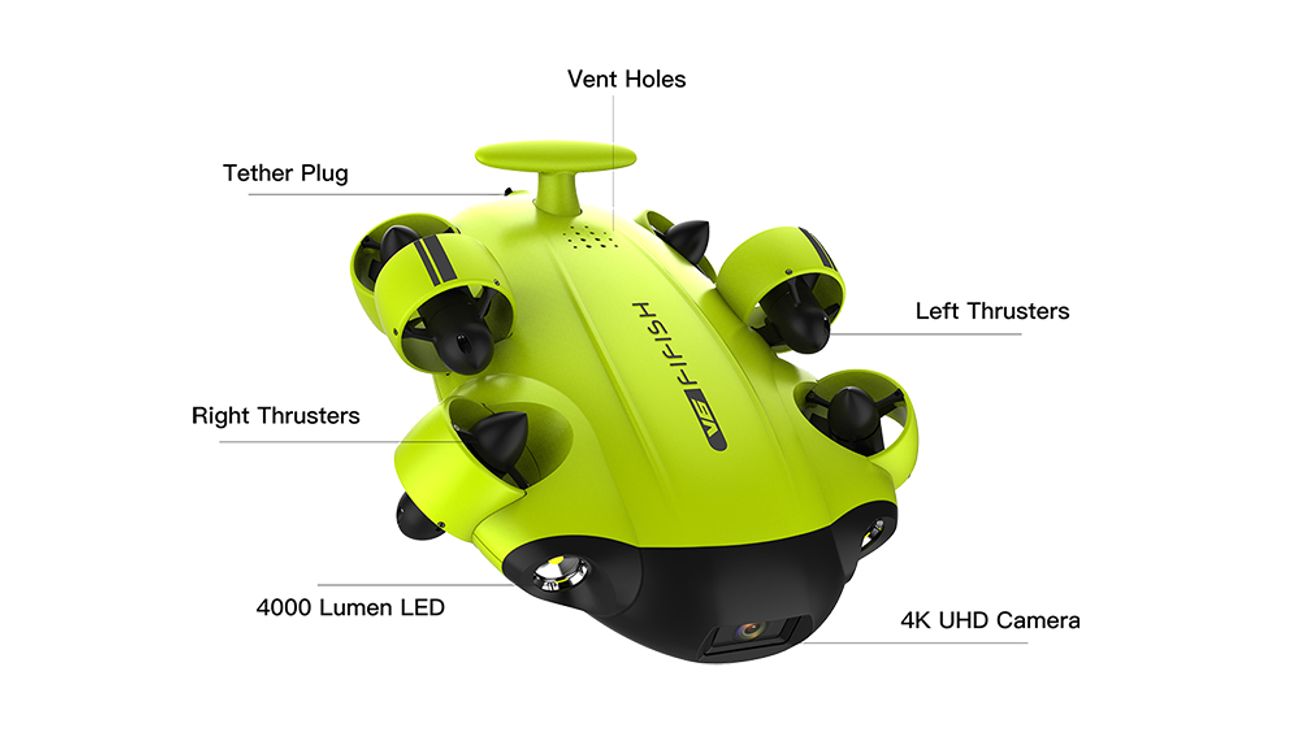

Complete Freedom of Movement FIFISH V6 and V6S apply its patented vector thrusters to achieve 6 degrees of mobility and all angles of movement. Not only is it capable of lateral movements and vertical ascents, but the V6 and V6S can also rotate in 360° flips, rolls and pivots. Its Posture Lock™ function allows the V6 and V6S to hold and lock down its angle with ±0.1° degree accuracy while moving any direction of choice. Users can also perform an exciting array of movement combinations -from rolls while moving forwards or downward tilt while moving sideways- to capture underwater content with full creative control.

Stable Photographic Platform

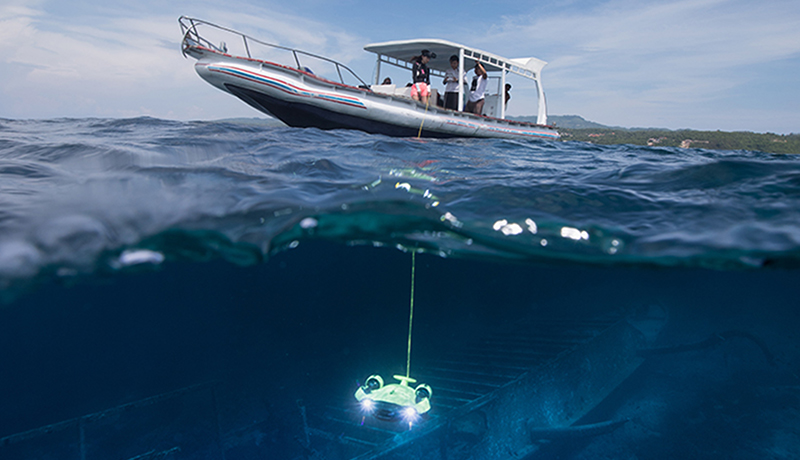

From treasure hunting and exploring through shipwrecks or gliding alongside marine animals, FIFISH V6 and V6S's stabilizing algorithm provides smooth and accurate points of view for all underwater-capturing needs, giving the user ability to create powerful and memorable cinematic shots with just a simple touch.

World’s First 4K Omni-directional Consumer Underwater Drone

4K Ultra High-Definition Camera

World’s First 4K Omni-directional Consumer Underwater Drone

The FIFISH V6 and V6S come equipped with a 4K ultra high-definition camera, capable of enhancing the vivid details of the underwater environment. The equally impressive 1080p at 120 frames-per-second option delivers smooth slow-motion footage that lets users capture more detail out of a single shot. Moreover, FIFISH V6 is armed with a 166° adaptable field-of-view lens display, providing the bigger picture that connects users seamlessly with the ocean life and its ecosystems. FIFISH V6 and V6S offer advanced compression in its videos, through applying the H.265 codec that results in better storage efficiency with greater detail.

Combined 4,000 Lumen Lighting

World’s First 4K Omni-directional Consumer Underwater Drone

With a combined 4,000 lumen lights at the head, with different levels of adjustable brightness, FIFISH V6 and V6S deliver you remarkably vibrant and stunning underwater content. V6 and V6S manual option mode for adjusting shutter speed, white balance selection, saturation, and exposure satisfies the most professional requirements of photographers, making post-editing tasks highly user-friendly. Film and photograph cinematic selfies with the fascinating backdrop of the surrounding oceanic environment.

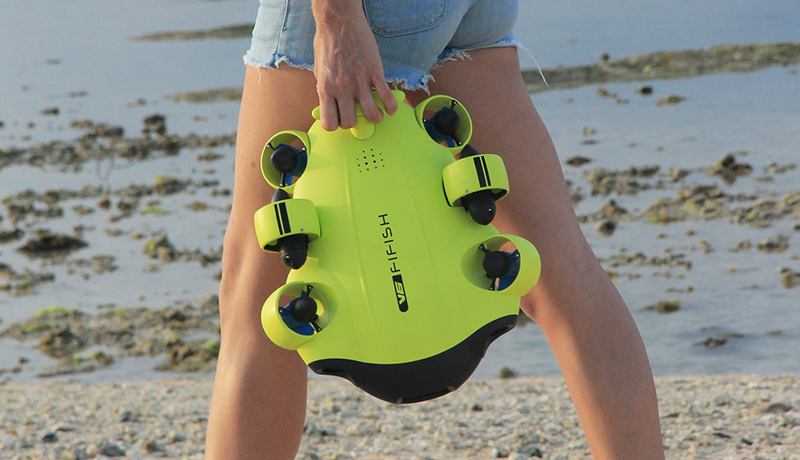

Built to Last

The V6S’s premium Panasonic built-in 9-cell battery provides an up to 6 hours diving time and is ensured to withstand temperatures ranging from -10 to 60°C. From the Arctic Oceans to Tropic Islands, FIFISH V6S is a reliable companion in the user’s quests for deep-sea explorations and cinematography as well as salvage, rescue, aquaculture and offshore maintenance work.

World’s First 4K Omni-directional Consumer Underwater Drone

An Immersive VR Adventure

FIFISH V6 and V6S integrates VR smart technology that immerses users into the underwater world. The VR box and APP combination provides an elevated and captivating controlling experience. Paired with an advanced VR Head Tracking function, the drone can be controlled not only in the first-person-view, but users get full 360° control of the drone’s rotations simply by moving their head.

World’s First 4K Omni-directional Consumer Underwater Drone
World’s First 4K Omni-directional Consumer Underwater Drone
World’s First 4K Omni-directional Consumer Underwater Drone
World’s First 4K Omni-directional Consumer Underwater Drone

Extend Your Reach And Increase Your Capability
• Fully powered robotic arm
• Increased battery capacity (60% more power than the V6)
• Dive up to 6 hours in a single dive (Depending on different working modes)

The V6s Combines ALL Of The Award Winning Features Of The V6 With A Substantial
Upgrade In Battery Capacity And The Addition Of A Full Functioning Robotic Arm

High Quality, Increased Capacity, Longer Life
The V6s is powered by Premium Panasonic batteries that enable extended dive times of up to 6 hours and reduce down time with a safe and quick charge

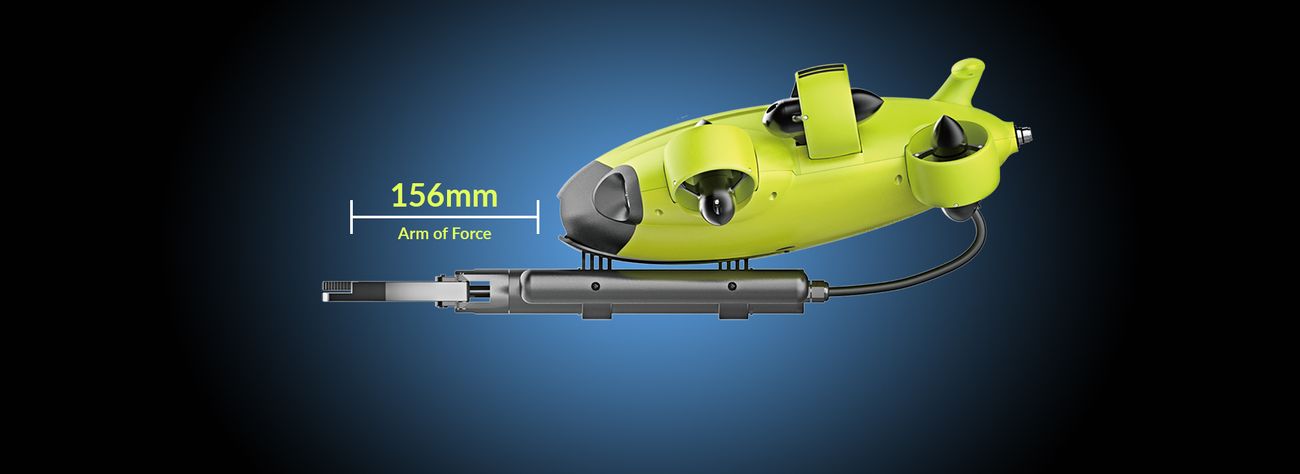

Upgrade Your Underwater Tool Box With The NEW V6s - Featuring A Neutrally Buoyant Robotic Arm
• Superior user experience
• Precise operation

Small In Size, Strong In Force, Flexible In Operation
• 100N clamping force, with clamp lock function
• 100N towing force

Superior Towing Capacity Redefines The Operational Concepts Of Compact ROVs
Drag, drop, tow, and salvage objects with neutrally buoyant robotic arm and cables

Superior Component Material Selected For Durability
• Stainless steel 316 watertight connector (anti-rust and anti-corrosion)
• Plug tested over a thousand times for reliable durability

Application Scenario
• Underwater Photography
• Salvage Rescue
• Pipeline Inspection
• Fish Farming
• Ship Inspection

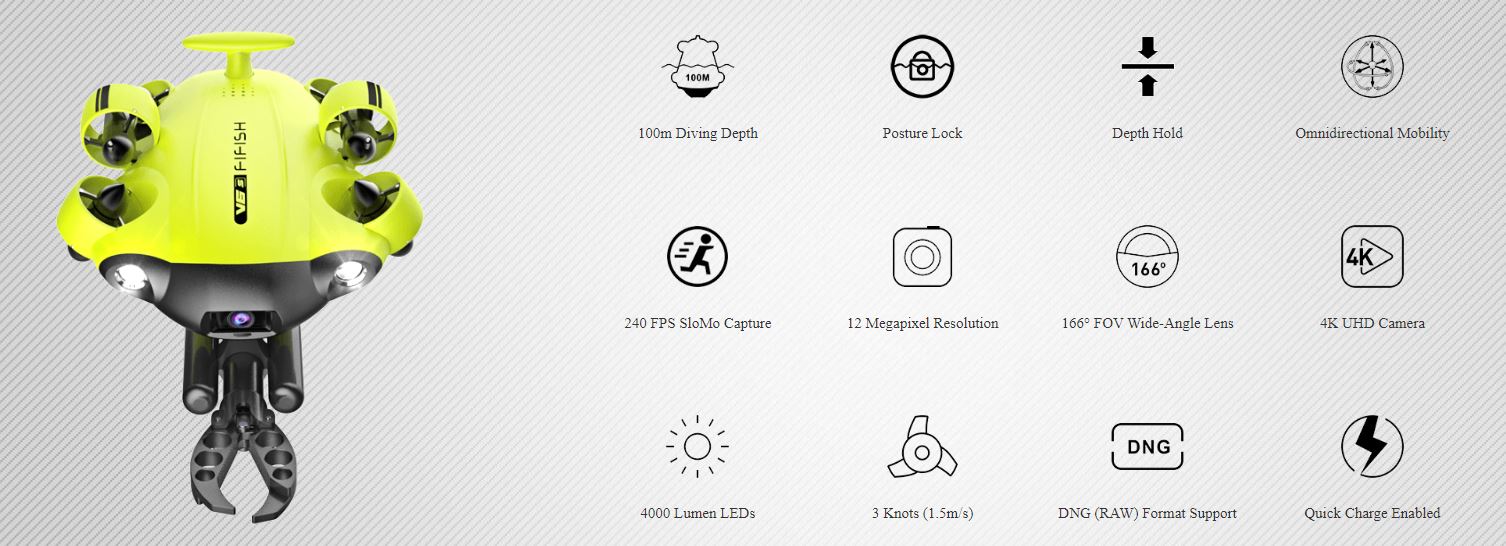

Qysea FIFISH V6S Underwater ROV Kit with Robotic Claw & Industrial Case Features

  • 100m Depth Rating
  • FIFISH Posture LockTM
  • Depth Holding
  • 6 DOF(Degree of Freedom)
  • Slow motion at 240 fps
  • 12 Megapixels
  • 166 Degree FOV
  • 4K UHD Camera
  • 4000 Lumen LEDs
  • 3 Knots
  • RAW image in DNG
  • Quick Charge

Warranty Information

This product has a limited warranty of 12 months.

- -

Key Features

  • 100m Depth Rating
  • FIFISH Posture LockTM
  • Depth Holding
  • 6 DOF(Degree of Freedom)

What's in the box:

  • FIFISH V6s Underwater ROV
  • V6S Robotic Claw
  • Remote Controler (RC)
  • 328' Tether
  • Adapter (ROV + RC)
  • Quick Start Guide
  • Tether Spool
  • VR Headset

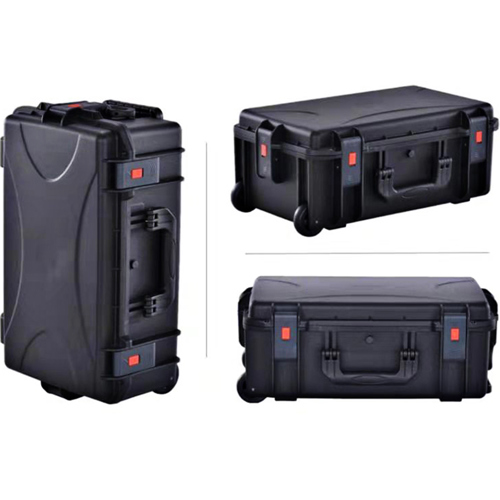

  • Industrial Carrying Case
  • MFG 1 Year Limited Warranty
