Dive Rite TransPac XT / Rec EXP Package

SKU: PCKDDRER

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

DAVID K : I'm not sure if I have my rec exp wing attached to the transpac properly because there is so much play up and down and left to right and doesn't seem to be aligned straight on the lumbar pad. Manual is very vague about attaching the wing. Am I the only one having this issue? Can anyone help me? DaveYAN G : This is a hybrid, and it can be used for both. Transpac does not use a hard backplate, it is a soft pack. Please call me directly for more clarification: 800-637-6880.YAN G : This is ready to dive, for doubles. This is a doubles set, which is why the stabilizer plates are included. Here is the STA: <a href="http://www.leisurepro.com/p-div1090ss/dive-rite-stainless-steel-single-tank-adapter-sta" target="_blank">http://www.leisurepro.com/p-div1090ss/dive-rite-stainless-steel-single-tank-adapter-sta.</a>YAN G : Unfortunately, this wing is not designed to be used without a single tank adapter (for single tanks). <a href="http://www.leisurepro.com/p-div1090ss/dive-rite-stainless-steel-single-tank-adapter-sta" target="_blank">http://www.leisurepro.com/p-div1090ss/dive-rite-stainless-steel-single-tank-adapter-sta</a> For doubles, you would use the stabilizer plates and attach everything to the bolts and secure with wing nuts.
George S : Does system come already assembled?YAN G : No, it does not.

Reviews about this item

Review Summary

Dive Rite TransPac XT / Rec EXP Package Specifications

Harness Assembly

Harness Assembly

Jump to...
  • Materials

    Backpack: 1,000-Denier Ballistic Nylon, Nylon Webbing & Molded Foam
    Hardware: Stainless Steel & Acetyl-Resin

  • Cylinder Capacity

    Single or Double Tanks

  • Stainless Steel D-Rings

    Yes, Shoulders: 2 to 4 (Harness Size Dependent)
    Waist Strap: 2
    Crotch Strap: 1

  • Crotch Strap

    Yes

  • Dry Weight

    XS/SM: 4 lbs 4 oz (1.92kg)
    MD: 4 lbs 8 oz (2.1kg), LG: 4 lbs 12 oz (2.15kg), XL: 4 lbs 14 oz (2.2kg), XXL: 5 lbs (2.23kg)

  • Buckles

    Waist: Latch-Style
    Shoulders & Chest: Squeeze Style Quick-Release Buckles

  • Webbing Tensile Strength

    7,000 lbs (3175kg) Breaking Strength

  • BC Body

    Wing, Back Inflator

  • Buoyancy Bag

    45 lbs (20.4kg)

  • Valves

    Over-Pressure Relief/Dump Valve

  • Oral Inflator

    Dive Rite Power Inflator

  • Materials

    Outer Bag; 1,000-Denier Cordura
    Bladder; 210-Denier Nylon Urethane Laminated,
    Grommets; 316-Stainless Steel

  • Weight

    3.12 lbs (1.41kg)

Stabilizer Plate

Jump to...
  • Purpose

    Mounting Twin Cylinders

  • Plate Material

    Stainless Steel

  • Dimensions

    4.25 x 1.5" (10.8 x 3.8cm)

  • Plate Weight

    7.8 oz (220g)

Weight Pockets

Jump to...
  • Materials

    Pockets: 1680-Denier Ballistic Nylon Fabric
    Buckles: Acetyl
    Grommets: Nickel Plated Brass

  • Weight Capacity

    Total: 32 lbs (14.52kg)

  • Releasable

    Yes

  • Closure

    Weight Compartment: Hook & Loop
    Accessory Pocket: Zipper

About Dive Rite TransPac XT / Rec EXP Package

Looking for a Great Tec Harness with Wing for Doubles Set-Up? Diver Rite has just what you're looking for! The Dive Rite TransPac Rec EXP Package consists of the following items:

DIVT3300 Dive Rite TransPac XT:
The Package starts with the Dive Rite TransPac XT Harness, exceptionally rugged, yet beautifully streamlined, the TransPac XT redefines expectations about function and comfort in Scuba harnesses. Dive Rites radically updated TransPac XT now provides a true mountaineer backpack design with an integrated hip belt, molded foam lumbar support and ergonomic shoulder pads. Available in multiple sizes with easy customization options at the shoulder and waist plate, the TransPac XT is designed to fit any size diver, including children.

The TransPac XT evenly balances weight across the hips and back distributing the weight of single or double tanks. The wrap-around hip belt made of dual density foam, snugly hugs the lower back giving critical support and cushioning. Narrow, double foam shoulder pads fit perfectly beneath the 2" (5.1cm) shoulder webbing to give chafe free comfort. The high-tech, molded foam lumbar pad is contoured in all the right places with mesh airflow channels for instant draining topside and doubles as a lift bag sleeve with an integrated pocket. Chest support strap provides ultimate load distribution and when used with the removable, 1.5" (3.8cm) crotch strap provides outstanding stability and comfort in the water. Transition plates at the shoulders allow for quick addition/deletion of hardware and finite adjustments. Dual cam straps with stainless-steel buckles are positioned to give plenty of head room for easy maneuvering in the water.

Neutrally buoyant, the TransPac XT weighs less than 5 lbs (2.29kg) and packs flat for travel. The soft backpack is 1,000-Denier ballistic nylon and the side plates and hardware are marine grade stainless-steel. The shoulder straps feature pivot rings at chest and Acetyl resin squeeze style quick-release buckles for easy don/doff. There are four 2" (5.1cm) D-rings on each shoulder strap on sizes M-XXL and 2 each on XS & SM. The harnesses 2" (5.1cm) nylon webbing is rated to 7,000 lbs (3175kg) breaking strength. The TransPac XT weighs 4.25 lbs to just less than 5 lbs (1.93 to 2.26kg) depending on size. The TransPac XT comes with an owner's manual.

DIVB4300 Dive Rite Rec EXP Wing:
The Rec EXP is the flagship of Dive Rite's innovative line of 360-degree, donut-style wings. Donut wings tend to provide greater stability and control in the water, improving diver buoyancy and trim. The Rec EXP is shorter than Dive Rite's traditional Rec Wing, which means it now fits a wider range of diver statures; whereas Dive Rite's traditional Rec Wing is best suited for tall divers or divers who require more buoyancy at the waist.

A hybrid wing, the Rec EXP can be worn on single or double tanks making it one of Dive Rite's most popular wings. When diving with a single tank, The Rec EXP Wing has 2 clips on each side attach to D-rings on the back-plate, keeping the wing close to the diver's body. This avoids the taco effect of the wing wrapping around the tank, away from the diver, which diminishes buoyancy control.

At full lift capacity, the Rec EXP has 45 lbs (20.4kg) of lift and can accommodate two 85 cubic feet (12 liter) back mounted cylinders. The Rec EXP Wing Series is built with value driven and durable 1680-ballistic nylon EXP material that is resistant to tears and abrasions. The Rec EXP line's toughness is further enhanced with a heavy-duty, radio frequency (RF) welded 210-denier nylon urethane laminated bladder. The Rec EXP has urethane flanges welded in place which makes it easy to switch out corrugated hose and over-pressure relief valves without tools. The Rec EXP comes with either a 16" or 12" (40.6cm or 30.5cm) elbowed inflator and a 3/8' threaded low-pressure hose for attachment to the first-stage regulator. Wing has a lower left front over-pressure relief/dump valve. Two sets of marine-grade 316-stainless-steel grommet mounting holes are used to attach the wing to the harness and/or to double tanks and set diver's trim. The Rec EXP measures approximately (H x W) 24 x 23" (60.9 x 58.4cm) deflated and weighs 3.12 lbs (1.4kg). The Rec EXP Wing comes with owner's Manual


DIV2084 Dive Rite TransPac Stabilizer Plates for Doubles:
Stainless-steel TransPac Stabilizing Plates firmly secure a TransPac to any set of double tanks that uses industry standard bands & bolts. They are curved to fit the spacing of double tanks, & are the only item needed to connect a TransPac Harness & Wing to a set of double tanks. The TransPac Harness and the Wing end up being sandwiched between the double tanks and the stabilizing plates, with the stabilizing plates functioning like large washers. Dive Rite TransPac Stabilizer Plates are corrosion resistant and sold as a pair. Plates measure 4.25 x 1.5" (10.8 x 3.8cm) and weigh 7.8 oz (220g).

DIV3232 Dive Rite 32 lbs (14.5kg) QB Weight Pocket:
The Dive Rite 32 lbs (14.5kg) Quick Buckle (QB) Weight Pockets consist of an insert pocket that easily releases when the handle is pulled and a holster that stays securely on the waist belt. The insert pocket has two compartments to separate heavy weights and keeps them from slipping inside. Designed to be worn with the Trans-Pac Harness the 32 lbs (14.5kg) QB Weight Pockets are worn vertically w/each pocket holding up to 16 lbs (7.3kg) of weight securely in position throughout the dive. Simple, top loading pocket protects divers from an inadvertent buoyancy event by keeping weight securely in place. Worn at an angle on the waist belt for easier access, the right-hand pocket is identified by the Dive Rite logo while the left-hand pocket is plain, without a Logo.

Weight pockets are made from durable 1680-denier ballistic nylon fabric & are tear and abrasion resistant. Pockets attach to standard 2" (5cm) webbing of harness or BCD waist strap w/2" (5cm) nylon webbing loops on the back of pockets. Acetyl quick-release buckle is used to easily open and close the pocket. The Dive Rite Weight Pockets come with nickel plated brass grommets that are resistant to rust & corrosion. TransPac Package is proudly made in the U.S.A.

Dive Rite TransPac XT / Rec EXP Package Features

  • TransPac XT / Rec EXP Package:
  • Complete Harness & Wing System w/Hardware
  • Single- or Double-Cylinder System
  • Owner Manuals
  • Made-In-U.S.A.
  • Harness: Dive Rite TransPac XT
  • Exceptionally Rugged, Beautifully Streamlined
  • Redefines Expectations of Function & Comfort-In Scuba Harnesses
  • Mountaineer Backpack Design
  • Integrated Hip Belt, Molded Foam Lumbar Support & Ergonomic Shoulder Pads
  • Easy Customization Options
  • Designed to Fit Any Size Diver, including Children!
  • Evenly Balances Weight Across Hips & Back
  • Harness Usable with Single or Double Tanks
  • Wrap-Around Hip Belt:
    Made of Dual Density Foam
    Snugly Hugs Lower Back
    Give Critical Support & Cushioning
  • Narrow, Double-Foam Shoulder Pads for Chafe-Free Comfort
  • Mesh Airflow Channels for Instant Draining, Doubles-As Lift-Bag Sleeve w/Integrated Pocket
  • Chest-Support Strap Provides Ultimate Load Distribution
  • Removable 1.5" (3.8cm) Crotch Strap
  • Chest-Support Strap & Crotch Strap: Provide Outstanding Stability & Comfort in Water
  • Transition Plates at Shoulders for Quick Addition/Deletion of Hardware
  • Transition Plates: Finite Adjustments
  • Dual Cam Straps w/Stainless Steel Buckles
  • Soft Backpack: 1,000-Denier Ballistic Nylon
  • Side Plates & Hardware: Marine Grade Stainless Steel
  • Shoulder Straps w/Pivot Rings at Chest & Acetyl-Resin Squeeze Style Quick-Release Buckles for Easy Don/Doff
  • Four 2" (5.1cm) D-Rings On-Each Shoulder Strap, Sizes M-XXL
  • Two 2" (5.1cm) D-Rings On-Each Shoulder Strap, Sizes XS & SM
  • 2" (5.1cm) Nylon Webbing: Rated to 7,000 lbs (3175kg) Breaking Strength
  • Weight: 4.25 lbs to Less than 5 lbs (1.93 to 2.26kg) Depending On-Size
  • Buoyancy: Neutral
  • Available in Multiple Sizes
  • Back Inflator (Wing): Dive Rite Rec EXP
  • Accommodate Two 85 cu. ft. (12 liter) Back Mounted Cylinders
  • Single or Double Tank Wing System
  • Lift: 45 lbs (20.4kg)
  • Construction:
    Outer Bag; Durable 1680-Ballistic Nylon EXP Material
    Tears & Abrasion Resistant
    Inner Bladder; Heavy-Duty, Radio Frequency (RF) Welded 210-Denier Nylon Urethane Laminated
  • Welded In-Place Urethane Flanges:
    Easy to Switch-Out Corrugated Hoses & Over Pressurization Valves
    No Tools Required
  • 16" or 12" (40.6cm or 30.5cm) Elbowed Inflator
  • 3/8" Threaded Low-Pressure Hose
  • Over-Pressure Relief/Dump Valve
  • Two Sets of Marine-Grade 316-Stainless Steel Grommet Mounting Holes
  • Dimensions (Deflated): Approximately (H x W) 24 x 23" (60.9mc x 58.4cm)
  • Weight: 3.12 lbs (1.41kg)
  • Stabilizer Plates for Doubles: Dive Rite TransPac Stabilizer Plates
  • Material: Stainless Steel
  • Firmly Secure TransPac to Any Set of Double Tanks
  • Curved to Fit the Spacing of Double Tanks
  • Hard Back-Plate Not Needed
  • Works w/Industry-Standard Bands & Bolts
  • Weight Pockets: Dive Rite 32 lbs (14.5kg) QB
  • Quick Buckle (QB) Weight Pockets
  • Insert Pocket Easily-Releases when Handle Pulled
  • Holster Stays Securely-On-the-Waist Belt
  • Insert Pocket wit 2-Compartments, Separate Heavy Weights & Prevent Weights Slipping Inside
  • Designed for Trans-Pac Harness
  • Worn-Vertically Each Pocket Holds Up to 16 lbs (7.3kg) of Weight Securely-in-Position
  • Simple, Top-Loading Pocket
  • Angled On-Waist Belt for Easier-Access
  • Easy ID Left-&-Right Hand Pocket Design
  • Materials:
    Pocket: Durable Tear & Abrasion Resistant 1680-Denier Ballistic Nylon Fabric
    Acetyl Quick-Release Buckle
    Resistant to Rust & Corrosion Nickel Plated Brass Grommets
  • Attach to Standard 2" (5cm) Webbing of Harness or BCD Waist Strap
  • 2" (5cm) Nylon Webbing Loops for Mounting
  • Acetyl Quick-Release Buckle: Easily-Open-&-Close Pocket
  • Dimensions: (H x W x D) 8.5 x 6 x 1.5" (21.6 x 15.3 x 3.8cm)
  • Weight (empty): 20.8 oz (510g)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Dive Rite TransPac XT package: Perfect for single or double tank scuba diving.
  • EXP Wing provides 45 lbs of buoyancy for optimal control underwater, great for scuba.
  • Includes quick-release weight pockets; ditch weights easily in any dive emergency scenario.
  • Stainless steel stabilizing plates included for secure mounting of twin scuba cylinders.
  • Harness crafted from 1000-Denier Ballistic Nylon for maximum durability on any dive.
  • This Dive Rite package includes a MFG 1 Year Limited Warranty for peace of mind.

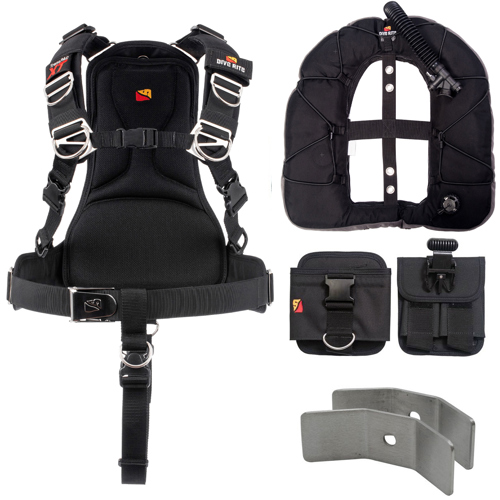

What's in the box:

  • TransPac
  • Rec EXP Wing
  • LP Hose
  • QB Weight Pockets
  • Stabilizing Plates
  • Owner Manuals
  • MFG 1 Year Limited Warranty
