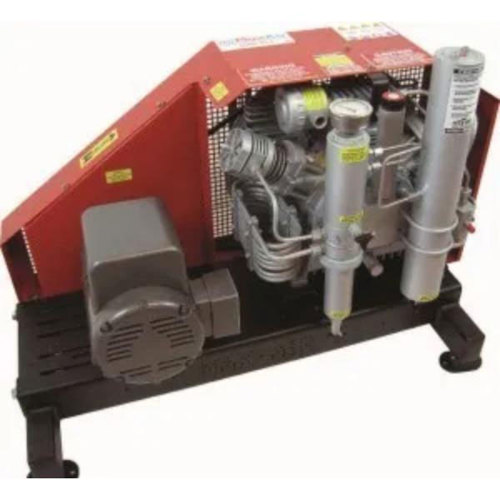

Max-Air 90 STD 3-Phase Electric 220-V Compressor

The Max-Air 90 standard is a dependable, high quality, breathing air compressor designed for continues duty at an affordable price. Heavy duty design has commercial, marine, military, dive, police, paintball, and fire department applications. The Max-Air 90 standard is ideal for dive centers, pleasure boats, and fixed installation. Compare the Max-Air 90 standard prices and features with any of the competition. Compressor is a three-phase electric 220 Volt with a 7.5 HP AC motor. Compressor provide 10.8 SCFM (305.8 liters) with a maximum pressure output of 5000 psi (340 bar).

The compressors 10.8 SCFM (305.8 liters) volume can fill an 80 cu. ft.(2,265.4 liter) tank in approximately 7.5 min. The compressor weighs 315 lbs. (142.88 kg) and measures (L x D x H) 40" x 20" x 29" (101.6cm x 51cm x 73.66cm). Mounted on a durable powder coated steel frame with an adjustable motor/belt tensioning base (All Standard "E" models must be hard wired to an on/off electrical fused panel by a licensed electrician). Compressors have manual condensate valve, tri-chemical breathing air purification system with activated carbon/molecular sieve 13X/hopcalite and the disposable purification cartridge is convenient and easy to replace. Breathing air processing capacity of 10,000 cubic feet (283,168.5 liters) at 72 DegreeF(22.22 Degree C) or approx. 18 hours run time and new large capacity separators for hot/humid climates. Compressors are equipped with pressure maintaining valve for optimum air processing, intake filter, and pressure relief valves on all stages.

Compressor comes equipped with digital hour meter. Unit has an oil filled final pressure gauge 0-5800 psi (400 bar), and 2 filling hose with on/off valve with bleed (SCUBA yoke or SCBA). The compressor is a continuous duty, air cooled, three stage, three cylinder high pressure, compressor, and has all stainless steel inter-stage and final stage coolers. The compressors maximum pressure is 5000 psig (340 bar) approximately, with an output of 9 F.A.D. 10.8 SCFM charging rate. The lubrication system is a splash lubrication with oil thrower pin. The compressors oil capacity is 58 fl. oz. (1.7 liters), and requires the use of Max-Lube 501 synthetic compressor oil (see SKU: MXA35O1). Compressor noise level is 81 dB at 9.84' (3m). Compressors come complete with a spare parts list and owner's manual.

Compressors are shipped via Trucking Company, Shipping rates will be quoted at the time of order, UPS Shipping rates are not valid for the compressors

At the time of the order we need to know the following:
1). What the final pressure setting should be. There will be an additional charge if we ship a compressor and then have to exchange, resent, or replace the final pressure relief valve.
2). We need to know whether you want Scuba or SCBA fill whip.
3). We also need to know if the delivery address is residential or commercial. If we are not given this information we will charge the residential rate which is $75.00 more. If we are told it is commercial and it turns out to be residential when the unit is delivered you will be charged the additional $75.00.

Time required to fill an 80 cu. ft. cylinder from 500 to 3000 psig
Based on charging an 80 cu. ft. cylinder from 500 to 3000 psig
