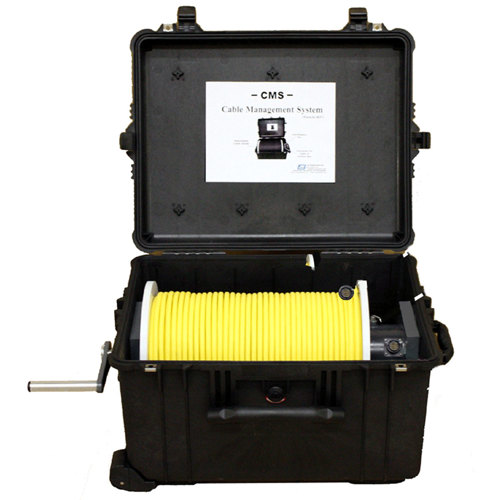

J.W. Fisher Cable Management System CMS-1

The J. W. Fisher Cable Management System (CMS) is a cable reel with slip rings which allow complete and continuous operation of electronic equipment while deploying or retrieving cable. The cable is manually coiled and uncoiled using the removable hand crank. The CMS-1 cable reel holds 250' (76m) of J.W. Fishers ROV cable or 500' (152.5m) of J.W. Fishers side scan cable (cables not included). The CMS-1 is housed in a Pelican 1620 case. Reel assemblies are constructed of high impact PVC for years of trouble-free performance. Case come with wheels and a retractable handle for ease of transportation and storage. System Information: CMS-1 slip rings electrical contacts, 2 circuits (wires) at 10 amps (up to 240 v ac/dc), 6 circuits (wires) at 2 amps and 2 separate coax cables (uses 4 circuits). The CMS-1 system weighs 48 lbs. (21.77kg).

When the tough get-going and need to tote their equipment along, the Pelican PL1620 Case is a versatile option. The PL1620 is a chemical-resistant, corrosion-resistant, airtight, watertight, dustproof, crushproof case. The Pelican PL1620 defends your sensitive equipment against harsh weather conditions, bumps, drops, jolts and shocks. The case is equipped with easy open double throw latches, two stainless steel pad lockable hasps, stainless steel hardware, and has large, comfortable fold down over-molded rubber carry handles. When you case is loaded easy transport is provided with the retractable trolley handle and wheel system. Its exclusive polymer O-ring and latches seal perfectly and includes an automatic purge valve for quick equalization after changes in atmospheric pressure.

Case has a MIL C-4150J and IP-67 (Ingress Protection) certifications. Case has interior dimensions of (L x W x H) 21.48" x 16.42" x 12.54" (54.56cm x 41.7cm x 31.85cm), with a volume of 4,422.9 cubic inches (72.48 liters). The external dimensions are (L x W x H) 24.64" x 19.39" x 13.78" (62.6cm x 49.25cm x 35cm). Case is manufactured in the USA.
