Hawkeye by Norcross Hand Held Depth Finder

SKU: HWKHHSL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : does this unit work through ice?Raymond C : I never tried it but in should, you would need to make a dam out of snow, fill with water and then hold the depth finder in the puddle. I had planned on doing this to map a pond but it was spring feed and never froze over.
Shopper : What is depth rating of the device (not the depth it measures, but the depth one can take it down to)?Raymond C : Interesting because the paperwork with mine said it's not waterproof enough for diving. I use it on the sailboat for checking depthJEFFERY W : The following is from the manufacturer's manual which is available online: USER’S GUIDE H22PX – HawkEye® Handheld Sonar System USING FOR DIVING The H22PX is waterproof to 200 ft (61 m), allowing you to use it as a range finder or target finder for snorkeling or diving. Keep in mind that the sonar signals must be directed at a solid surface that is within 200 ft (61 m) to display depth readings. • You must be certain to aim the Device at an object or the bottom within this range. • ALWAYS be certain to attach the Wrist/Safety Strap to your person, as the device will float to the surface if released.
Ingrid K : Is there another attachable device to attach to diver/ person so to pick up the object if searching location? ThanksROBERT H : Nope - simply sends out sonar waves and measures distance by time it takes for sound to reflect back. Large objects (like people or schools of fish) will reflect the sonar back (if the depth finder unit is pointed directly at their location) showing they are closer than the bottom.YAN G : No, not for this unit.
Shopper : is the unit on your website model hawkeye h22fx?YAN G : Yes, this one is H22FX.

Reviews about this item

Review Summary

2017-12-25T05:37:05

Rated 4 out of 5

Good for checking depth

This is for use on a boat, not waterproof enough for a dive.

Raymond C.

2016-02-02T19:00:00

Rated 4 out of 5

depth finder

works great wish the read out was on top like marcum depth finder. cant beat the price though. flash light is handy in the dark

tim s.

2015-01-23T19:00:00

Rated 4 out of 5

This is a boat tool, not a dive light!

"Depth Range 2.5' to 200' (0.8 to 61 meters" That means it will read to 200', the unit is only waterproof to 3' so this is for use on the boat, not a handheld side scan sonar for limited viz diving. It's easy to use however if you want water temps let the unit hang over the side in the water for the temp to settle or you'll just get the housing temp like your dive computer gives you when you first get in. The light is plenty bright for deck use. I'll be using this to map new dive sites and as the depth finder and deck light on my sailboat Warranty repairs are fast, my unit had an issue. Norcross sent me a UPS label and I had it back in 10 days.

Latitude A.

Hawkeye by Norcross Hand Held Depth Finder Specifications

  • Unit Dimensions

    (L x W x D) 7" x 2" x 2") 177mm x 50mm x 50mm)

  • Display Dimensions

    1.6" x .75" (40 mm x 19mm)

  • Display Type

    Polarized Liquid Crystal Icon

  • LCD Backlighting

    Yes, Green LED SoftGlow

  • Power Requirements

    4 AA Batteries (not included)

  • Current Drain

    40mA, Nominal

  • Imperial/Metric

    Yes

  • Depth Range

    2.5' to 200' (0.8 to 61 meters

  • Depth Readout Increments

    1/10th Precision

  • Frequency

    200 kHz

  • Beam Angle

    25° Degrees

  • Battery Life

    30-Hours Continuous Use

  • Operating Temperature

    0° to 122°F (-18° to 50°C)

  • UPC Code

    818800225031

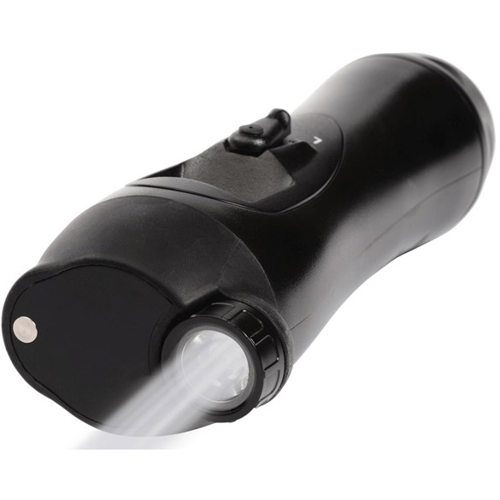

About Hawkeye by Norcross Hand Held Depth Finder

The Hawkeye by Norcross Hand Held Depth Finder, Temperature and LED flashlight has automatic range and sensitivity, which delivers uninterrupted depth reading from 2.5' to 200' (0.8 to 61 meters) in 1/10th precision. It gives air and water temperature readings to the nearest 1/10th degree. The fish indicator displays fish in the sonar beam, and adaptive software programming, minimizes false readings. Its easy touch user interface gives one-touch access to depth and temperature readings. The shoot-thru technology, allows readings through ice or boat hulls, so you can tell what is swimming down there. The flashlight has a waterproof battery compartment, for 4 x AA batteries (not included).

The depth and temperature are displayed in both imperial or metric (Ft/°F or M/°C). The LCD display is completely glare-free with soft glow backlighting, which allows viewing in any light condition. The high intensity LED flashlight has 4 interchangeable lens colors and provides an emergency SOS signaling mode if needed. The flashlight provides 20 lumens of brightness. The transducer frequency is 200 kHz, with a beam angle of 25° degrees. The depth finder has an operating temperature of 0° to 122°F (-18° to 50°C). The depth finder measures (L x W x D) 7" x 2" x 2") 177mm x 50mm x 50mm) with a display window measuring 1.6" x .75" (40 mm x 19mm) The depth finder comes with a friendly color coded operation manual, free access to a 4 hour online technical support center and is covered by a 24 month limited warranty.

Hawkeye by Norcross Hand Held Depth Finder Features

  • Hawkeye by Norcross Hand Held Depth Finder
  • Hand Held Depth Finder, Temperature and LED Flashlight
  • Automatic Range and Sensitivity
  • Uninterrupted Depth Reading from 2.5' to 200' (0.8 to 61 meters) in 1/10th Precision
  • Air & Water Temperature Readings to Nearest 1/10th Degree
  • Fish Indicator: Displays Fish in Sonar Beam
  • Adaptive Software Programming: Minimizes False Readings
  • Easy Touch User Interface: One-Touch Access to Depth & Temperature Readings
  • Shoot-Thru Technology: Allows Readings Thru Ice or Boat Hulls
  • Flashlight with Waterproof Battery Compartment
  • Power: 4 x AA Batteries (not included)
  • Imperial or Metric Display (Ft/°F or M/°C)
  • LCD Display: Glare Free with Green Soft Glow Backlighting
  • Display: Allows Viewing in Any Light Condition
  • High Intensity LED Flashlight with 4 Interchangeable Lens Colors
  • Emergency SOS Signaling Mode
  • Flashlight Provides 20 Lumens of Brightness
  • Transducer Frequency: 200 kHz
  • Transducer Beam Angle: 25° Degrees
  • Operating Temperature of 0° to 122°F (-18° to 50°C)
  • Dimensions: (L x W x D) 7" x 2" x 2") 177mm x 50mm x 50mm)
  • Display Window Dimensions: 1.6" x .75" (40 mm x 19mm)
  • Friendly Color Coded Operation Manual
  • Free Access to 24 Hour Online Technical Support Center
  • 2 Year Limited Warranty

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Glare-free display with soft glow backlighting
  • Displays depth and temperature reading
  • Air and water temperature readings
  • Adaptive software program, Easy touch user interface
  • Waterproof battery compartment
  • LED flashlight with 4 interchangeable lens and SOS mode

What's in the box:

  • Hawkeye by Norcross Hand Held Depth Finder with 4 Replacement Flashlight Lenses
  • Wrist Lanyard
  • Battery Holder (batteries not included)
  • Waterproof Battery Cap and Color Operation Manual
