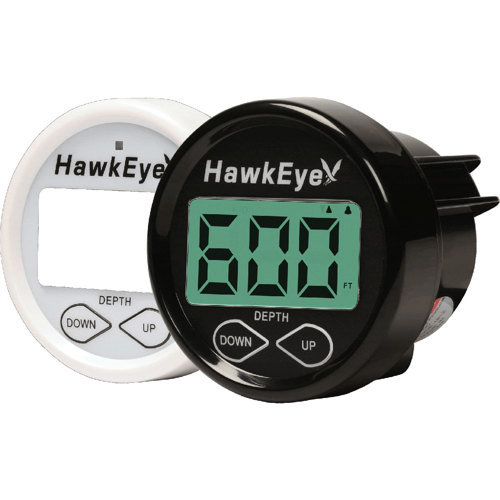

Hawkeye by Norcross 2B Digital Depth Sounder

SKU: HWKDT2B MFR: DT2B-TM
$99.99

Key Features

  • Get precise depth readings with this Hawkeye depth sounder, from 2.5' to 600'.
  • Ensure safer navigation with real-time data, thanks to the reliable sonar sensor.
  • Enjoy clear visibility in any light with the SoftGlow LCD backlighting feature.
  • Easy to install with included transom mount transducer and mounting hardware.
  • Know the water depth with 1/10th ft./meter resolution on digital display.
  • Long-lasting use with minimal power drain; nominal 40mA current consumption.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Protect+.* Learn more

1 Year

$9.49

2 Year

$15.99

3 Year

$23.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Can you shoot thru the hull with the transducer?IAN R : You cannot. You must mount this externally using the included hardware.
Shopper : How is the transducer mounted ?darrick c : Hello, Available in both transom mount and 2” thru-hull configurations, to match your vessel’s requirements and personal preference.
Shopper : SKU: HWKDT2B  MFR:  DT2B-TM  Which  SKU: # one is for white unit?darrick c : Hello, both color faceplates come with this model.
Richard S : Does this come with the necessary transducer kit?Mario C : This is what is listed for the kit: Included with the DT2B Display are black, white face plates and black, white bezel trim rings, integrated waterproof plug & play connector and fuse holder, flush mount bracket and thick dash extension. Included with the Dual Mount Transducer are 30' (9.2 meters) with 2-pin connector removable transom mounting arms, pivot bracket, 2 angle shims, cable clam, cable anchors and stainless-steel mounting hardware. What's in the box: Hawkeye by Norcross 2B Digital Depth Sounder Transducer Mounting Hardware
Shopper : Can I lengthen transducer cable by 15' and use any 200Khz transducer?darrick c : Hello, you would need to contact the manufacture directly.

Reviews about this item

Review Summary

2025-06-09T20:00:00

Rated 5 out of 5

DepthTrax 2B

Great unit, works fine. Good price and easy to install.

John B.

2024-04-08T20:00:00

Rated 5 out of 5

DIY

I followed the directions. Prepared three spots in the hull of our 44' Carver and tested them, they all checked good. Ran the wire to the fly bridge, used all of it. Placed the transducer under starboard engine with epoxy ordered with the unit and let it cure for a day. Ran the boat over a 22 mile trip comparing depth readings with Garmin Active Captain chart data that varied from 14' to 70' and they matched.??

Gary G.

2023-09-07T20:00:00

Rated 5 out of 5

Haven't got everything installed yet, just ordered a mounting bracket Looks perfect for the job I need. Thanks

Joel P.

2023-06-04T20:00:00

Rated 5 out of 5

Installed worked perfect! plug and play.

Michael B.

2022-11-23T19:00:00

Rated 5 out of 5

The very best customer support.

After initial problems with the product,during which Norcross customer support (specifically Jacob) were superbly patient (I probably caused the "fault") and constant, determined help, supplying a replacement display unit even before I returned the old one. There is no doubt in my mind that Norcross support is one of the very best supporters in business; maybe THE best.

BILL M.

2022-11-23T19:00:00

Rated 5 out of 5

The very best customer support.

After initial problems with the product,during which Norcross customer support (specifically Jacob) were superbly patient (I probably caused the "fault") and constant, determined help, supplying a replacement display unit even before I returned the old one. There is no doubt in my mind that Norcross support is one of the very best supporters in business; maybe THE best.

Bill M.

2022-09-15T04:19:40

Rated 5 out of 5

AAA

Perfect setup

anthony g.

2022-08-02T20:00:00

Rated 5 out of 5

Works well, direct responsive readout. Peace of mind navigating lake Champlain.

david b.

2022-07-27T20:00:00

Rated 5 out of 5

Must have for any boat

Why did I wait so long to replace my depth finder? This thing is great. Easy to install, easy to setup, and works amazing. I'm already planning on buying one for my next boat. My only suggestion would be to add a mute button to the alarm. It is loud, which is great when you need it, but is rather annoying when you launching, retrieving, or beaching the boat somewhere.

Mike D.

2021-09-04T20:00:00

Rated 5 out of 5

Great

Easy to read numerals and easy programming.

Daniel S.

2021-08-26T20:00:00

Rated 5 out of 5

fabulous

I had a Hawkeye from 2004 that worked only very rarely, probably because I had bedded it in silicone caulk inside the hull. This time around Hawkeye included a small amount of two part slow cure epoxy. Wow, what a difference, it reads well everywhere in the muddy silted in Chesapeake. Here's to better gunkholing :)/

William B.

2021-08-26T20:00:00

Rated 5 out of 5

fabulous

I had a Hawkeye from 2004 that worked only very rarely, probably because I had bedded it in silicone caulk inside the hull. This time around Hawkeye included a small amount of two part slow cure epoxy. Wow, what a difference, it reads well everywhere in the muddy silted in Chesapeake. Here's to better gunkholing :)/

Willim B.

2021-08-26T20:00:00

Rated 5 out of 5

fabulous

I had a Hawkeye from 2004 that worked only very rarely, probably because I had bedded it in silicone caulk inside the hull. This time around Hawkeye included a small amount of two part slow cure epoxy. Wow, what a difference, it reads well everywhere in the muddy silted in Chesapeake. Here's to better gunkholing :)/

Customer

2020-12-03T19:00:00

Rated 5 out of 5

Impeccable service

I appreciated the service and the way I was kept informed about the progress of my order could not have asked for more

james b.

2020-11-17T19:00:00

Rated 5 out of 5

Time will tell

Haven't really used it yet, have not got it mounted yet, just tested where I am going to mount the transducer in the hull. this will be a winter project here in Ohio.

Ed B.

2020-09-28T20:00:00

Rated 5 out of 5

I will let you know how it works!

Did not use the depth finder yet. It is being installed on my 1958 Aristocrat Cruiser Wooden Boat.

Customer

2020-09-08T20:00:00

Rated 5 out of 5

Best Thru-the-Hull Depth finder I could find. Easy to install and works great!

Installed this Thru-the-Hull depth finder as described in the installation manual. Be sure to use their 2part slow cure epoxy and apply to both sensor and boat bottom. Cure takes 24hrs so tape down to hull with duct tape while curing. The rest of the install was a breeze and it worked really well.

Mark M.

2020-09-02T20:00:00

Rated 5 out of 5

Great

ORDERED THE DEPTH FINDER I WAS LOOKING FOR, WITHOUT ANY PROBLEMS. BUT AS OF SEPT. THIRD I HAVE NOT GOTTEN THE PACKAGE, PLEAS CHECK ON THIS .THANK YOU D.HYATT

David H.

2020-08-30T20:00:00

Rated 5 out of 5

AWESOME SUPPORT!!

Product Support is EXCELLENT! After my 3-decade old depth finder display died, I contacted NorCross Marine support asking if the DepthTrax 2B would work with my existing transducer (it Does!!). The Support team responded Super Quick and provided all the info I needed regarding product and purchase options as well as installation support. I am very happy with the product purchase and even more impressed by the level of service I received. 5 Stars!

Lou F.

2020-08-18T20:00:00

Rated 5 out of 5

Great

100 positive

Harry A.

2020-07-30T20:00:00

Rated 5 out of 5

Pretty good unit.

Replaced a faulty D11S Micro Depthfinder, and this ine, while having a much larger footprint works so much better. I wish it had an on/off switch for use on my Waverunner. The display is big and very legible and it only occasionally loses the depth reading.

Ralph B.

2020-07-26T20:00:00

Rated 4 out of 5

Good

Easy interface

Carol P.

2020-07-16T20:00:00

Rated 5 out of 5

Great

Great

isaac c.

2020-07-06T17:02:43

Rated 1 out of 5

Does not work as directed.

So far I could not get it to work. I will try to relocate it and attach with different material. But to me I mounted it as directions called for and it powers up but will not beep or show a reading. So at this point very disappointed with it. In a couple weeks from now when it get out on a lake again I will try hanging outside the boat like the directions say but that is very hard once you have the dash together and it is installed on this onboard boat. There is enough cable for this but just annoys me. As my hull is solid fiberglass no foam to block the sonar. Again it maybe faulty but I ordered it a few months ago when working on the dash putting gauges in the boat and all the other gauges I installed work great. So at this point I am not happy as useless if not reading the depth.

CARL M.

2020-06-08T20:00:00

Rated 5 out of 5

Great

Installation of dash unit was super easy (though the previous dash hole was a bit smaller than the unit face). Very easy to set K/O, shallow water and deep water alarms.

Amanda R.

2020-05-30T20:00:00

Rated 5 out of 5

good unit

Works great right out of the box. Easy to use. Accurate

Karl A.

2020-04-29T20:00:00

Rated 5 out of 5

Great

Have not yet received the unit. My rating is based on the helpfulness in answering my questions prior to purchase.

Kurt R.

2020-01-21T19:00:00

Rated 5 out of 5

Great

Came to UK just as promised, only VAT to pay

Paul C.

2019-11-20T13:17:53

Rated 5 out of 5

excetional and easy to use depth finder

simple to install and use.

James S.

2019-06-25T20:00:00

Rated 5 out of 5

This was an excellent choice to replace the existing in dash depth finder. Very easy to install and works awesome.

Daniel G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Dive into your next Adventure

Accidents happen. Purchase a protection plan to keep your favorite Scuba.com gear protected from covered accidental damage and failure.

Repair or Replacement

Repair or Replacement

If your equipment stops working, we'll repair it at no additional cost! And if we can't fix it, we'll replace it!

Accidental Damage

Accidental Damage

Protection for your equipment from unintentional breaks, drops, rips, and spills.

Failure Protection

Failure Protection

When your gear experiences a mechanical or electrical failure, you’re covered.

Zero Deductible

Zero Deductible

We’ll never charge you a deductible after the purchase of a plan. No fees. No deductibles. No hidden costs.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy with 24/7 online support.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Protect+ powered by Extend is available for purchases to customer in the United States. Not available for purchases internationally or U.S territories.

Hawkeye by Norcross 2B Digital Depth Sounder Specifications

  • Unit Dimensions

    Not Specified by Manufacturer

  • Display Dimensions

    1.65 x .87" (42 x 22mm)

  • Display Type

    Polarized Liquid Crystal Icon

  • LCD Backlighting

    Yes, SoftGlow½

  • Power Requirements

    11-14 VDC 200mA

  • Current Drain

    40mA, Nominal

  • Imperial/Metric

    Yes

  • Depth Range

    2.5' (70cm) to 600' (180 meters)

  • Depth Readout Increments

    1/10th ft./meter

  • Transducer/Sonar Sensor Type

    Transom/Glue-In or Thru-Hull Mount Transducers

  • Cable Length

    30' (9.2 meters)

  • Frequency

    200 kHz

  • Beam Angle

    14 Degree

  • Alarm Signals

    Multiple

  • UPC Code

    818800103919

About Hawkeye by Norcross 2B Digital Depth Sounder

FEATURED REVIEWS

DepthTrax 2B

By John B.

Great unit, works fine. Good price and easy to install.

DIY

By Gary G.

I followed the directions. Prepared three spots in the hull of our 44' Carver and tested them, they all checked good. Ran the wire to the fly bridge, used all of it. Placed the transducer under starboard engine with epoxy ordered with the unit and let it cure for a day. Ran the boat over a 22 mile trip comparing depth readings with Garmin Active Captain chart data that varied from 14' to 70' and they matched.??

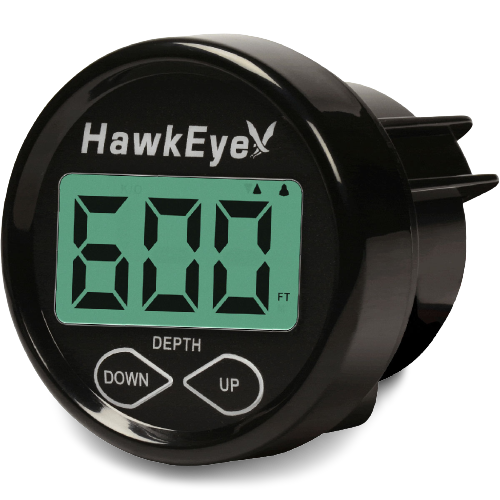

Hawkeye by Norcross 2B Digital Depth Sounder

Hawkeye by Norcross 2B Digital Depth Sounder

The DepthTrax 2B is a powerful dashboard depth finder. Its SONAR technology uses advanced algorithmic programming to deliver precise depth readings 4 times per second up to a depth of 600 feet. Available in transom-mount or thru-hull configurations to match your specific needs.

Powerful

Utilizing SONAR technology and the most advanced algorithmic programming available today, the DepthTrax 2B delivers precise depth readings 4 times per second, allowing you to take plane readings at up to 60 MPH.

Hawkeye by Norcross 2B Digital Depth Sounder

Versatile

The DepthTrax 2B is available in both transom mount and 2” thru-hull configurations, to match your vessel’s requirements and personal preference. Both black and white faceplates and bezels are included, to match the look and feel of your dashboard.

Hawkeye by Norcross 2B Digital Depth Sounder

Reliable

The keel offset function automatically adjusts depth readings to account for your vessel’s draft requirements. DepthTrax Intelligent SONAR auto-intensifies bottom echoes for error-free readings in even the murkiest of waters. Dual depth alarms can be set to alert you when a specified maximum or minimum depth is reached.

Hawkeye by Norcross 2B Digital Depth Sounder

Key Features

• The DepthTrax 2B’s powerful SONAR depth finder instantly and accurately measures water depth up to 600 feet

• Dual alarms can be set to produce an audible alarm once a maximum and minimum depth has been measured.

• Automatic range & sensitivity. No need to dig through menus to get performance from your unit - we take care of just about everything for you.

• Keel offset automatically adjusts depth readings to account for your vessel’s draft requirements.

• Available in both transom mount and 2” thru-hull configurations, to match your vessel’s requirements and personal preference.

• LED backlighting for low power consumption

• Polarized LCD for glare-free viewing

• Fully waterproof display

• Designed and supported in the USA

• Industry-leading 2-year “You Break It… We Fix It” Warranty

The DepthTrax 2B is an updated version of DepthTrax 1B. Following years of exhaustive R&D and field testing, Hawkeye updated the SONAR algorithms of the DepthTrax 2B to reach new depths. Able to reach depths of 600' (180 meters) and tuned for high speed performance, the DepthTrax 2B reaches deeper and performs faster than any depth finder Hawkeye ever produced.

The DepthTrax 2B delivers a combination of performance and affordability unrivaled in any other depth sounder. The foundation of the DepthTrax 2B is Hawkeye's proprietary algorithmic programming, which significantly reduces false readings and produces unmatched precision. Depth readings are updated four times per second on the no glare, polarized LCD icon display. EasyTouch Programming gives one-touch access to the user adjustable settings: Keel offset adjustment automatically adjusts depth readings for a vessels' draft requirements. Dual upper and lower depth alarms can be set throughout the full depth range. A 3-stage Advanced Warning System Degree Clearly signals an alarm condition with an audible alarm, an ultra-bright red LED warning light and LCD alarm indicators. One-touch alarm muting instantly turns off audible depth alarms. User selectable feet or meter readout. Automatic memory retention of all user settings.

Hawkeye even incorporated a waterproof plug and play transducer connector and a waterproof fuse holder. Finally, Hawkeye perfected customization with their patented interchangeable face/bezel system. The DepthTrax 2B includes white/black faceplates and trim rings, allowing custom matching to most boat dash configurations. Hawkeye even throw in a storage sun cover for good measure. The DepthTrax 2B comes standard with Hawkeye's exclusive high-speed, dual-mount transducer that can be transom mounted or glued inside most boat hulls. User selectable imperial or metric readout. SoftGlow Backlit Display and Programming Keys- Low intensity, low-temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing.

Included with the DT2B Display are black, white face plates and black, white bezel trim rings, integrated waterproof plug & play connector and fuse holder, flush mount bracket and thick dash extension. Included with the Dual Mount Transducer are 30' (9.2 meters) with 2-pin connector removable transom mounting arms, pivot bracket, 2 angle shims, cable clam, cable anchors and stainless-steel mounting hardware.

The depth display window measures 1.65 x .87" (42 x 22mm), the display type is a polarized liquid crystal icon, with a green SoftGlow backlighting, requires 11-14 VDC 200mA maximum voltage with a current drain of 40mA, nominal. Maximum depth range is 600' (180 meters) with a minimum range of 2.5' (70cm) and depth readout increments of 1/10th ft./meter. The transducer frequency is 200 kHz with a beam angle of 14 Degree.

Hawkeye by Norcross 2B Digital Depth Sounder Features

  • Hawkeye by Norcross 2B Digital Depth Sounder:
  • Updated Version of DepthTrax 1B
  • Years of Exhaustive R&D and Field Testing
  • Hawkeye Updated SONAR Algorithms of DepthTrax 2B
  • Reach New Depths: Up to 600' (180 meters)
  • Tuned for High Speed Performance
  • Reaches Deeper & Performs Faster Than Any Depth Finder Hawkeye Ever Produced
  • Combination of Performance & Affordability Unrivaled In-Any-Other Depth Sounder
  • Significantly Reduces False Readings & Produces Unmatched Precision
  • Depth Readings Updated Four Times per Second
  • No Glare, Polarized LCD Icon Display w/Storage Sun Cover
  • Spot Free Viewing With-or-Without Sunglasses
  • EasyTouch Programming Allows One-Touch Access to User Adjustable Settings
  • User Programmable Keel Offset Automatically Adjusts Depth Readings for Vessels' Draft
  • User Selectable Imperial or Metric Readout
  • Dual Upper and Lower Depth Alarms
  • Alarms Can Be Set Thru-Out Full Depth Range
  • 3-Stage Advanced Warning System: Clearly Signals an Alarm Condition
    Audible Alarm, LED & LCD Indicators w/One-Touch Alarm Muting
  • Automatic Memory Retention of All User Settings
  • Patented Removable Face System
  • Largest Display Available On In-Dash Depth Sounder
  • SoftGlow Backlit Display:
    Programming Keys- Low Intensity, Low-Temperature Lighting
    Prevents Eye Strain & Condensation
    Provides Unparalleled Nighttime Viewing
  • Flush Mount Extension for Mounting-In-Extra Thick Dash Panels
  • Available with Transom/Glue-In or Thru-Hull Mount Transducers
  • ShootThru Sonar Technology:
    Allows Readings Thru Solid Fiberglass & Up to 1/8" Aluminum Hulls
  • Removable Transom Transducer Bracket for Low-Profile In-Hull Mounting
  • DT2B Display Includes:
    Black & White Face Plate
    Black Bezel & White (Trim Ring)
    Integrated Waterproof Plug & Play Connector & Fuse Holder
    Flush Mount Bracket
    Thick Dash Extension
  • Dual Mount Transducer Includes:
    30' (9.2 meters) Cable with 2-Pin Connector
    Removable Transom Mounting Arms
    Pivot Bracket
    2 Angle Shims
    Cable Clam
    Cable Anchors
    Stainless Steel Mounting Hardware
  • Display Window Dimensions: 1.65 x .87" (42 x 22mm)
  • Type Display: Polarized Liquid Crystal Icon
  • Maximum Voltage: 11-14 VDC 200mA
  • Current Drain: 40mA, Nominal
  • Minimum Depth Range: 2.5' (70cm)
  • Depth Readout Increments: 1/10th ft./meter
  • Transducer Frequency: 200 kHz
  • Beam Angle: 14 Degree

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Get precise depth readings with this Hawkeye depth sounder, from 2.5' to 600'.
  • Ensure safer navigation with real-time data, thanks to the reliable sonar sensor.
  • Enjoy clear visibility in any light with the SoftGlow LCD backlighting feature.
  • Easy to install with included transom mount transducer and mounting hardware.
  • Know the water depth with 1/10th ft./meter resolution on digital display.
  • Long-lasting use with minimal power drain; nominal 40mA current consumption.

What's in the box:

  • Hawkeye by Norcross 2B Digital Depth Sounder
  • Transducer
  • Mounting Hardware
