Hawkeye by Norcross D10DX Digital Depth Sounder
See all HawkEye items

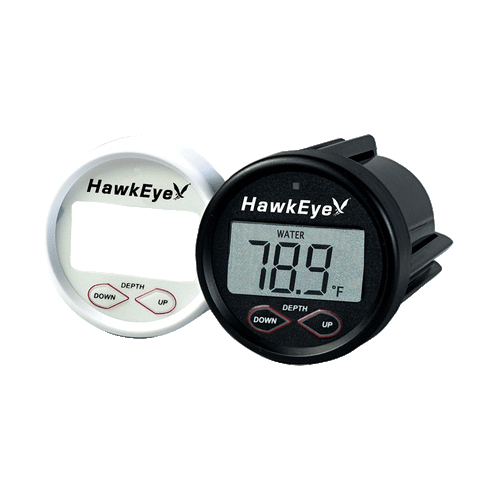

Hawkeye by Norcross D10DX Digital Depth Sounder

SKU: HWKD10DX

This item is no longer available.

Here are Similar Sonar Devices:

Recommended Alternatives

HawkEye : Picture 1 regular
Hawkeye by Norcross 2B Digital Depth Sounder
$99.99
HawkEye : Picture 1 regular
Hawkeye by Norcross DepthTrax 1H Handheld Depth Finder
$99.95
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : is this item new or refurbished?Chris G : The unit I received was new but honestly I wouldn't purchase this model unless you are needing it for speeds of less than 10mph. Anything above that and it does not give an accurate readout on my tritoon. And yes it is set at the right location, level and approach angle...so you can lick it 'operator error'.Michael O : I have no idea if it's new or refurbished they should be able to tell you that I bought mine over 2 years ago and I want to it installed on a jet ski and it is still in the boxJames B : Mine was newGary S : The one I got was brand new...Robert G : Mine was new from Leisure Pro. Easy install. Nice features. Have since sold the Aqua Patio pontoon.
Shopper : does the thickness of the hull bottom a consideration when gluing to hull?KEVIN F : Yes, it is a consideration.
Dan R : DOES THIS DOES COME WITH ALL PARTS, SUN COVER, BLACK BEZEL, THRU HULL, CABLES WIRES, AND IN DASH UNIT?JEFFREY B : Yes. I purchased one of these units and it is a complete assembly. Comes with a black and a white bezel,all wiring,the thru hull transducer, and sunshade. The only thing you will need to purchase separately is under water sealant. I used 3m 4200 so if i ever have a problem it would be removable. Good luck.Frank M : Yes it comes with all of that. All you need are tools and urethane caulk for the thru hull transducer.TIMOTHY M : Yes, It does. unit has worked great
Shopper : Can you use on jet ski ?Frank M : It will work on a jetski if the hull deadrise meets the specs of the transducer. Also, I dont know how waterproof the gauge face is so placement of the gauge might be of concern. You should be able to find all of this info on the manufacturers website.BRODY A : As long as you can mount it, I would say so. I go up to 40mph in my boat and it registers fineTIMOTHY M : I would says yes if you want to drill a large hole in the bottom of the ski. Also not sure if the display is waterproof.
Shopper : What hole size drilled for the thru hull transducer?YAN G : Find more info here: <a href="http://www.hawkeyeelectronics.com/depth-sounder/" target="_blank">http://www.hawkeyeelectronics.com/depth-sounder/</a>

Reviews about this item

Review Summary

2018-07-30T06:55:09

Rated 5 out of 5

Great product, easy install

If you are looking for an inexpensive, accurate, and reliable depth, water temp and air temp gauge then you won't go wrong with selecting this one. Great installation instructions, easy for the novice DIY'er. Fast shipping from Leisure Pro. Highly recommend!

David M.

2016-07-11T11:51:59

Rated 5 out of 5

great unit for the price, 4 years running strong

Had this little depth sounder in my little 22 ft sailboat and it ran great for the 3 years i owned the boat and after speaking to the owner its still good to go. Glued it inside the hull and never gave me any problems, low voltage draw and easy to install.

Capt A.

2014-06-29T20:00:00

Rated 5 out of 5

Easy and efficient

This depth detector is used on a pontoon on mostly inland lake and river applications. No issues were encountered during installation or subsequent operation. It provides quick, accurate depth readings, is backlit for night use, and has a clear, uncluttered display. It was easy to install and with the optional chrome trim ring available from the manufacturer, it blends well with the rest of the gauges in my instrument panel.

Scott

Hawkeye by Norcross D10DX Digital Depth Sounder Specifications

  • Unit Dimensions

    2" x 1.75" (5.1 cm x 4.4 cm)

  • Display Dimensions

    1.65" x .87" (4.2 cm x 2.2 cm)

  • Display Type

    Polarized Liquid Crystal Icon

  • LCD Backlighting

    Yes, Green LED SoftGlow

  • Power Requirements

    11 to 14 Volts DC 200mA Maximum

  • Current Drain

    40mA, Nominal

  • Imperial/Metric

    Yes

  • Depth Range

    2.5' to 200' (.7 to 61 meters)

  • Depth Readout Increments

    1.2" (3 cm)

  • Transducer/Sonar Sensor Type

    Transom/Glue-In or Thru-Hull

  • Cable Length

    30' (9.14 meters)

  • Frequency

    200 kHz

  • Beam Angle

    25° Degrees

  • Alarm Signals

    Audible "Beep", Flashing RED LED, Blinking LCD Icons

  • UPC Code

    818800103964

About Hawkeye by Norcross D10DX Digital Depth Sounder

FEATURED REVIEWS

Easy and efficient

By Scott

This depth detector is used on a pontoon on mostly inland lake and river applications. No issues were encountered during installation or subsequent operation. It provides quick, accurate depth readings, is backlit for night use, and has a clear, uncluttered display. It was easy to install and with the optional chrome trim ring available from the manufacturer, it blends well with the rest of the gauges in my instrument panel.

Great product, easy install

By David M.

If you are looking for an inexpensive, accurate, and reliable depth, water temp and air temp gauge then you won't go wrong with selecting this one. Great installation instructions, easy for the novice DIY'er. Fast shipping from Leisure Pro. Highly recommend!

Instant Depth Readings, Updated 4 Times Per Second... Why the Hawkeye D10DX? Today's high-tech, multipurpose fish finders are designed to produce a range of readings from bottom contour, fish location, and thermocline's, to a variety of other useful sonar data. However, the technology used to decipher between these different signals coupled with the configuration of their specialized transducers greatly reduces their ability to give instant bottom readings. The HawkEye D10DX Depth Sounder is engineered to give precise depth readings from 2.5' to 200' (.7 to 61 meters), at speeds up to 63 mph (101 kph). Say goodbye to the days of not knowing the depth while running your boat on plane. The D10DX also incorporates dual temperature displays. A simple press of a button gives instant access to water or air temperature readings via integrated sensors in both the transducer and head unit.

Algorithmic programming virtually eliminates false depth readings while easy touch programming allows one-touch access to dual depth alarms. The full range keel offset adjusts depth readings for vessel draft. The oversized LCD measuring 1.65" x .87" (4.2 x 2.2) reads depths in feet or meters, and uses Soft-Glow backlighting for unmatched readability at night. The transducer is available in 2 models; 1 transom-mounted or 1 glued in-hull.

The Hawkeye D10DX measures 2" in diameter and 1.75" deep (5.1 x 4.4 cm) with a 30' (9 meter) traducer cable. The traducer frequency is 200 kHz and has a beam angle of 25° degrees. The unit uses 11 to 14 Volts DC 200mA maximum and has a current drain of 40mA nominal. The LCD display is a polarized liquid crystal so even in bright sunlight or when wearing sunglasses reading information is made easy. The warning signaling is audible, red LED and blinking LCD icons. The Hawkeye D10DX include interchangeable black and white bezels and face plates, and also a sun cover to protect the LCD during storage. The D10D comes with a comprehensive operation and installation manual.

Hawkeye by Norcross D10DX Digital Depth Sounder Features

  • Hawkeye by Norcross D10DX Digital Depth Sounder
  • Instant Depth Readings, Updated 4 Times Per Second
  • Algorithmic Programming, Virtually Eliminates False Depth Readings
  • Accurate Readings at Speeds Up to 60 mph (100 kph)
  • Precise Depth Readings from 2.5' to 200' (.7 to 61 meters)
  • Allows One-Touch Access to Dual Depth Alarms
  • LCD Display is Polarized Liquid Crystal
  • LCD Readable in Bright Sun or While Wearing Sunglasses
  • Transducer Frequency 200 kHz
  • Transducer Beam Angle 25° Degrees
  • Reads Depths in Feet or Meters
  • Soft-Glow Backlighting for Unmatched Readability at Night
  • Sonar Beam Angle: 25° Degrees
  • Full Range Keel Offset: Adjusts Depth Readings for Vessel Draft
  • Dual Temperature Displays: Air and Water
  • Oversized LCD: 1.65" x .87" (4.2 cm x 2.2 cm)
  • Reads Depths in Feet or Meters
  • Dimensions: 2" x 1.75" (5.1 cm x 4.4 cm)
  • Transducer Cable Length: 30' (9.14 meters)
  • Power: 11 to 14 Volts DC 200mA Maximum
  • Current Drain 40mA, Nominal
  • Includes:
    Transom/In-Hull Combination Transducer
    Interchangeable Black and White Bezels
    Face Plates
    Sun Cover
    Hardware
    Operation/Installation Manual

Warranty Information

This product has a limited warranty of 24 months.

Best Price Guaranteed + 5% OFF

Submit a price match

30/90 FREE Returns

Worry-free returns

Sell your Used Gear

Get started in 3 easy steps

Key Features

  • Engineered to give precise depth reading
  • Accurate readings, easy touch programming
  • Algorithmic programming eliminates false depth reading
  • Full range keel offset
  • Oversized LCD measuring 1.65 in. x 8.7 in.
  • Green soft glow backlighting

What's in the box:

  • Digital Depth Sounder
  • Transom Mount or Thru Hull Transducer
  • Interchangeable Black and White Bezels and Face Plates
  • Sun Cover and Comprehensive Operation and Installation Manual
