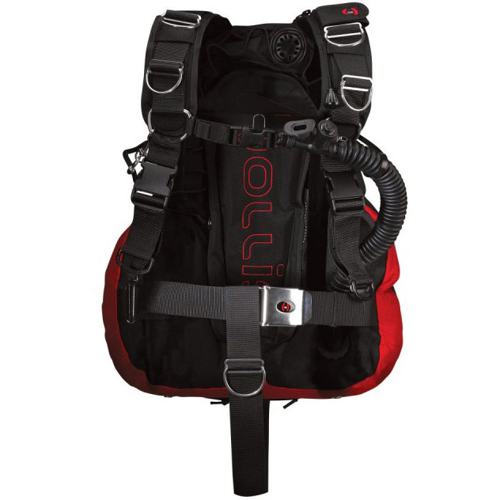

Hollis Side-Mount SMS 75 Complete Large/X-Large

SKU: HLSSM75CLX MFR: 208.1375.005
(2)9 questions, 26 answers
$829.95
OR
$70/mo suggested payments with 12‑month special financing. Learn how.

Key Features

  • Experience superior buoyancy control with this Hollis BCD, ensuring stability underwater.
  • Enjoy a streamlined profile with this side-mount BCD, reducing drag and improving movement.
  • Dive confidently with the durable 1000-Denier Cordura Nylon of this technical BCD.
  • Customize your fit with torso-adjustable straps on this comfortable Hollis side-mount.
  • Rely on the over-pressure valve for safety, a key feature of this Hollis SMS 75 BCD.
  • Benefit from the 35lbs (15.88kg) buoyancy bag, ideal for technical diving configurations.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Protect+.* Learn more

1 Year

$74.99

2 Year

$129.00

3 Year

$169.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

CHRISTOPHER B : Could I use a combo octo inflator with this bcd? Does Hollis make one?Mario C : Thank you Joe, No better answer that i could do.JOE S : Hollis does not make a Octo/Inflator combo. Technically, you could put one on this unit from atomic or Zeagle. However, if you are using it as a side mount or Backplate and doubles, then you would not want to do it. The PI corrugated hose comes from the bottom port on the bladder instead of over the shoulder, so not only would it be in the way, it would be difficult to use. If you are trying to use it for single back mounted tank, then moving the hose to the over the should position might be the way to go. In this case the Octo/Inflator would be appropriate. It would definitely not be ideal to put one on it as it stands though.
ANDREW G : What's the difference in the sizing? Is it just the strap length? They always have way to much excess that has to be trimmed off.Wayne K : It is ok to trim the excess. I just completed fitting my new SMS 75 and had to trim a lot. Keep in mind that customization of your rig is a major benefit sidemount configuration. Hope this helps.DMITRY A : How would a person buying just one of these be able to answer your question? Call them
Luis D : hello, what do i need to buy to use this BC in backmount?Edward M : It already includes two camstraps for side mounted tanks that you can also use to mount one tank on the rear.DARWIN E : Nothing. It comes with 2 cam bands to secure a tank back mount.CHARLES M : If using an aluminum tank, you might need some cheap weight pockets. If you're diving steel you probably don't need anything extra. Depends on your tanks and whether you are diving fresh or salt.Steve A : If you're diving single back-mount you don't need to buy anything...it comes with two cam bands to hold the tank to the back fd the BCEdward H : If you want to use it for a single tank, all you really need is a pair of tank bands, as you would see on a conventional BCD. You could add integrated weight system pockets on the waist band if you wish, or accessory trim pockets on the tank bands, but a simple weight belt would serve your buoyancy needs. Your choice.DMITRY A : Nothing
Shopper : What adapter is needed for the sms75 to use with a back mount single 80AL?DMITRY A : NoneEdward H : Some people use an STA (single tank adapter) to mate with an aluminum 80 and that works fine, since most of them have holes centred on !! inches. But I found that all I had to do was thread tank cam bands through the slots on the SMS75 and it worked fine. You'll have to ease the velcro on the back pad off a bit to make it easier to pass the bands through, but that's simple enough,Edward H : It's possible to mate an STA (single tank adapter) to the SMS75, but I found all it took was to thread a couple of tank bands through the slots in the sidemount. You'll have to pull the pad off the velcro strips a bit to make it easier to pass the bands through, but it works fine.DMITRY A : No adapter needed. Comes with everything to need for rear cylinder.Mauricio S : No adapter is needed. The 2 straps for the cylinders can be mounted in the back of the harness and hold it very well.
ALOYSIUS D : how is this bcd compared to the SMS 50 ? I'm using the SMS 50 now and i am contemplating an upgrade to this as i feel there isn't enough leave on the 50.STANLEY C : SMS 75 is suitable for both alu and stainless steel cylinders, as you know, sms 50's lift is too small. And what's more, sms 75 can be used comfortably as a single tank backmount which is important for some environment not good for sidemount entry & exit water.DARWIN E : Having never used the SMS 50, I can tell you I absolutely love the SMS 75. I am using it as a back mount for my Faber LP 85 with an aluminum 30 pony side mounted. You cannot beat the minimal design with 40 lbs of lift. I added XS scuba weight pockets to the belt.JOE S : The SMS 75 is better for more applications. The SMS50 is mainly for travel with a max load of two AL80 tanks. With 40 lbs of lift, the 75 will accommodate a heavier load and allow you to add a backplate and double tanks if you wish. It will also allow for a single tank which the SMS50 does not.Edward H : Delighted with the SMS75. Much better bungee system than the 50, plus the ability to add Hollis weight plate on the back. More lift capacity, quick release buckles on the shoulder straps, and the inflator is nicely placed. I added rubber D-rings on the waist belt to give me an attachment point that lowers partially consumed tanks. Buy it.

Reviews about this item

Review Summary

2020-07-13T08:23:26

Rated 5 out of 5

Great

Quick and fast shipping item came as described very happy with the service. BCD is great I love it - I can dive both single tank back mount and sidemount with this BCD so it is meeting all my needs while I’m cutting down on gear o have to carry with me on vacation!

JAMIE S.

2015-11-25T12:21:33

Rated 5 out of 5

Best dive-anything rig I could find!

I wanted to have a rig that was suitable for Tec certification classes and could do dual sidemount cylinders vs. just twin back mounted ones. Plenty of those configurations around you say! But I also wanted it to be an all around rig that would be suitable for the majority of our diving, which is Rec back mount. Now the selection out there gets smaller! I ordered the Zeagle Tech, but did not like their dumpable weight system or the gigantic 65lb bladder that I will never use. It also seemed to me like just a regular BC modified, they just added a big bladder and some D rings to it and some grommet holes in the back. I next ordered the SMS75. Now that I dove it, I can say I love it! Perfect trim in the water and low profile with a bladder just the right size. Plenty of attachment points and plenty of room to add pockets and or dumpable weight pockets to the waist belt if you so desire. I've only dove it single cylinder, back mount so far. The crotch strap is wide and very comfortable and keeps the rig from sliding up and down my torso. I ordered a Lg/XL. I'm 6'2", 42" chest 180lbs. I'm pretty thin in the midsection and It fits me well with plenty of waist strap left for you barrel shaped guys. The rig is ready to dive out of the box and after you dive it, there is an amazing amount of adjustment that can be made for a fit that feels like custom! Changing it from a rear mount to a sidemount configuration takes maybe 2 minutes. The cordura is a rugged high quality and so is the sidemount rigging kit it comes with. Just bought one for my wife today!

Dmitry A.

Hollis Side-Mount SMS 75 Complete Specifications

  • Bc Body

    Side-Mount Back Inflation

  • Buoyancy Bag

    35Lbs (15.88Kg)

  • Valves

    Over-Pressure Releif Valve

  • Shoulder Straps

    Torso Adjustable With "Squeeze-Style" Side-Release Buckles

  • Stainless Steel Rings

    Yes, 5, Four Pre-Bent

  • Waist Strap

    2' (5Cm) Nylon Webbing With Stainless Steel "Latch-Style" And Integrated Crotch Strap

  • Chest Buckle

    Yes, Adjustable Sternum With "Squeeze-Style" Side-Release Buckle

  • Oral Inflator

    Hollis Power Inflator

  • Materials

    1000-Denier Cordura Nylon With A Polyurethane Lamination Outer Shell & 15Mm Urethane Internal Bladder

  • UPC Code

    020545207979

Hollis SMS 100 Side-Mount System BCD Size Chart
  SM-MD LG-XL XXL
Height (Ft/In) 5'5"-6' 5'7"-6'2" 6'-6'5"
Weight (lbs) 120-170 150-200 190-260
Chest (in) 30-42 36-48 44-58
Waist (in) 28-38 32-42 36-46

About Hollis Side-Mount SMS 75 Complete

FEATURED REVIEWS

Best dive-anything rig I could find!

By Dmitry A.

I wanted to have a rig that was suitable for Tec certification classes and could do dual sidemount cylinders vs. just twin back mounted ones. Plenty of those configurations around you say! But I also wanted it to be an all around rig that would be suitable for the majority of our diving, which is Rec back mount. Now the selection out there gets smaller! I ordered the Zeagle Tech, but did not like their dumpable weight system or the gigantic 65lb bladder that I will never use. It also seeme...

View full Review

Great

By JAMIE S.

Quick and fast shipping item came as described very happy with the service. BCD is great I love it - I can dive both single tank back mount and sidemount with this BCD so it is meeting all my needs while I’m cutting down on gear o have to carry with me on vacation!

The Hollis Side-Mount SMS75 is an evolution from years of side-mount development, which started with the SMS100. The Hollis Side-Mount System is a product that has been copied, modified and a benchmark for technical side-mount for years. Even more popular has been the lightweight SMS50 line. These two have taken side-mount mainstream and the building blocks this new harness. While it caters more to hardcore cave divers, SMS75 was created to handle all environments. Proper trim is key in side-mount diving and the wing is designed with a trapezoid shape to promote horizontal diving with increased lift towards the hips where it's needed most, and without modification. The SMS75 will also support rear mounted tanks with cam slots for single tank and grommets at 11" (27.9cm) for banded doubles and reversible inflator positions.

The SMS75 Side-Mount System Harness comes equipped with stainless-steel D-rings on the shoulder straps with 4-pre-bent for accessory attachment. The harness has adjustable shoulder and sternum straps equipped with squeeze-style side-release buckles for easy donning and doffing. The Hollis SMS75 Harness has a stainless-steel latch-style waist buckle with adjustable crotch strap. The crotch strap is equipped with an additional stainless-steel D-rings for attachment of accessory or scooter. All hardware is manufactured from 316-marine-grade stainless-steel.

The Hollis SMS75 Side-Mount System with inflator mechanism(s) and overpressure-relief/dump valve, is a 360° elastic bungee system (removable) wing that provides 35 lbs. (15.88 kg) of lift capacity. Bladder has a centrally located inflator mechanism elbow(s) to avoid tank valve/regulator interference, lower left pull dump/overpressure relief valve and the inflator system is made from durable impact resistant plastic with a corrugated rubber hose. The internal components and inlet quick-disconnect nipple are made from chrome plated brass. The SMS75 Side-Mount System is equipped with upper and lower cam band slots for single cylinder mounting.

This bulletproof constructed wing is manufactured using 1000-Denier Cordura nylon with a polyurethane lamination outer shell & 15mm urethane internal bladder. The SMS75 Side-Mount System is streamlined designed for reduced drag and passing through confined spaces. The SMS75 Side-Mount System comes with a low pressure 3/8" threaded quick-disconnect hose, owner's manual, and rigging kit that Includes: Tank bungees, stainless-steel cam bands, stainless-steel bolt snaps and nylon line.

Hollis Side-Mount SMS 75 Complete Features

  • Hollis Side-Mount SMS 75 Complete:
  • Designed for Side-Mount Cave Divers, Beginner, Advanced or Technical Divers
  • Suitable for: Side Mounting Twin or Single Cylinders or Rear Mounted Singles
  • System Uses: Any-Environment from Open-Water to the Overhead Environment
  • System is Ready-to-Dive Out-of-the-Box
  • Bulletproof Constructed System Allows Full Visibility Over-your-Gear
  • Diver Can Perform:
    Gas Checks/Management
    Configure & Monitors All Gauges, Valves & Hoses w/o Assistance
  • Streamlines Profile, Reduces Drag, Increasing Bottom Time
  • Harness:
    5-Stainless Steel D-Rings on Padded Shoulder Straps
    4-Pre-Bent for Accessory Attachment
  • Adjustable Shoulder and Sternum Straps
  • Shoulder &Sternum Straps: Squeeze-Style Side-Release Buckles for Easy Donning & Doffing
  • Stainless Steel Latch-Style Waist Buckle with Adjustable Crotch Strap
  • Crotch Strap: Additional Stainless-Steel D-Rings for Attachment of Accessory or Scooter
  • All Hardware Manufactured from 316- Marine-Grade" Stainless Steel
  • 360° Elastic Bungee System (removable) Wing
  • 35 lbs. (15.88 kg) of Lift Capacity
  • Centrally-Located Inflator Mechanism Elbow: Avoid Tank Valve/Regulator Interference
  • Lower Left Pull Dump/Overpressure Relief Valve
  • Hollis Inflator System:
    Durable Impact Resistant Plastic Housing
    Corrugated Rubber Hose
    Internal Components & Inlet QD Nipple made from Chrome Plated Brass
    Low Pressure 3/8" Threaded Quick-Disconnect Hose
  • Cam Slots for Single Tank and Grommets at 11" (27.9cm) for Banded Doubles
  • Reversible Inflator Positions
  • Owner's Manual

Warranty Information

This product has a limited warranty of 24 months.

Pressure-Free Fit

Comfort guarantee

Best Price Guaranteed + 5% OFF

Submit a price match

30/90 FREE Returns

Worry-free returns

Key Features

  • Experience superior buoyancy control with this Hollis BCD, ensuring stability underwater.
  • Enjoy a streamlined profile with this side-mount BCD, reducing drag and improving movement.
  • Dive confidently with the durable 1000-Denier Cordura Nylon of this technical BCD.
  • Customize your fit with torso-adjustable straps on this comfortable Hollis side-mount.
  • Rely on the over-pressure valve for safety, a key feature of this Hollis SMS 75 BCD.
  • Benefit from the 35lbs (15.88kg) buoyancy bag, ideal for technical diving configurations.

What's in the box:

  • Hollis Side-Mount SMS 75 Complete with Inflator
  • LP Hose
  • Over-Pressure Valve and Owner's Manual
