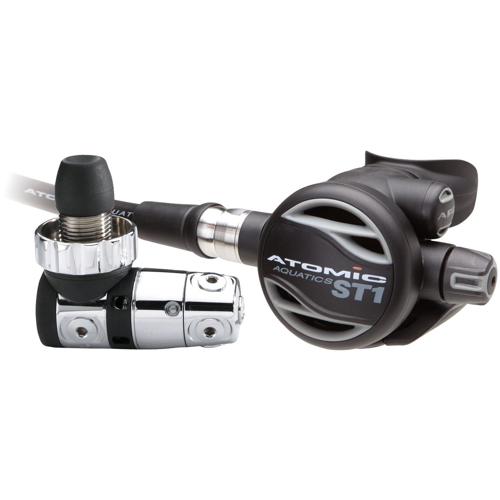

Atomic Aquatics ST1 Swivel Sealed Regulator, DIN

The Atomic Aquatics ST1 Swivel Sealed Regulator has a stainless steel first-stage. Stainless steel delivers virtually the same corrosion resistance as titanium at a lower price. Stainless steel does not require protective chrome or nickel plating processes that can be harmful to the environment and is 100% recyclable. The first-stage is machined from solid 316-grade stainless steel.

The ST1 is a balanced flow-thru piston design using Atomic Aquatics jet seat high flow stainless steel piston. Exclusive high-pressure piston seal system is self-lubricating for low friction and low maintenance. The Atomic Aquatics jet seat system has no sharp edges that can damage the seat over time, like most competitors' first stages. Instead, Atomic Aquatics employs a conical seat and blunt end piston. Atomic Aquatics' valve seats are precision machined from an extremely strong aerospace specification seat material. This design combination is the most reliable seat system in the industry and enables the seat to go 2-years or 300 dives without service. Diving performance is superior at even low tank pressure. The ST1 is also freeze protected with a factory sealed first stage that also prevents contamination such as silt and sand from entering the valve mechanism. The regulator is Nitrox ready for mixtures Up to 40% out-of-the-box. The first-Stage has 2 high-pressure (HP) 7/16" and 5 low-pressure (LP) 3/8" ports. The LP ports are on a swivel turret for ease of hose routing.

The ST1 second stage is a balanced linear flow design for extremely easy breathing at all depths and dive conditions. The ST1 Series second stage is built-to-last with a titanium demand valve body, lever and sealing orifice. The diaphragm is made from high quality silicone rubber. This pneumatically-balanced poppet second-stage has Atomic Aquatics patented seat saving dynamic orifice which unlike most second-stage orifices is a floating valve design which reduces wear on the second-stage poppet seat when the regulator is not pressurized adding life to this important seal.

The ST12 series second-stage regulator is equipped with Atomic Aquatics patented automatic flow control (AFC). This unique diaphragm activated vain automatically controls the flow and venturi-effect of the second-stage for optimum breathing resistance at all depths. The second-stage does have a soft over molded rapid adjustment knob for rare special situations. If you have ever experience the pulling effect" of the regulator second-stage when you turn your head underwater, those days are gone with Atomic Aquatics comfort swivel. Perhaps one of the most admired features of Atomic Aquatics second stages is the patented comfort swivel which allows 30 Degree rotational movement without binding or kinking. The regulator comes equipped with a 3/8" threaded 32" (81.3cm) low-pressure hose. The regulator weighs 2.1 lbs. (964 g) and comes with an owner's manual.
