Reviews about this item

Review Summary

2020-06-12T08:58:58

Rated 5 out of 5

Nice regulator

Got this as a back up and am very pleased with it

EDWARD S.

2019-02-21T10:09:37

Rated 5 out of 5

work well

very good fit for me

TIMOTHY P.

2019-01-07T08:10:44

Rated 5 out of 5

Great regulator

Love this regulator. Bought one for self and wife. Very easy breathing down to 130'. Used in temps from 80s to low 30s.

CORINNA A.

2016-09-05T10:24:31

Rated 5 out of 5

Zeagle Onyx II

Bought one for me and one for the wife. Plenty of features and quality for the price. Extremely easy breathing 2nd stage. Tendency to free flow easily at the surface. Have to use Venturi adjustment and crank the breathing resistance back a bit if you want it to stop. Or just turn it upside down. Have dove several dives already down to 80 feet and temperature of 48 degrees with absolutely no problems. Love this regulator. Changed bite wings out because they were a bit thick for our liking. Nothing wrong with the originals, just a bit short and thick for us.

Jeff A.

2016-08-10T08:24:26

Rated 5 out of 5

Great regulator from Zeagle

very durable, well built regulator with plenty of features. nice, stiff adjustment knob. just dived for a week straight in Key West with zero issues. FYI, Onyz II purge button has a chrome bezel, not blacked out like the photo shows.

MARK C.

Zeagle Onyx II Specifications

  • 1'st Stage Type

    Balanced Diaphragm

  • LP Ports

    5, Thread 3/8"-24 UNF

  • HP Ports

    2, Thread 7/16"-20 UNF

  • Adjustable 2'nd Stage

    Yes, Inhalation Effort and Dive/Pre Dive Venturi (Free Flow) Switch

  • Nitrox Compatible

    Yes Up to 40% O2

  • 2'nd Stage Type

    Pneumatically Balanced Downstream Demand Valve

  • Materials

    First Stage:
    Black Chrome Plated Brass, Stainless Steel, Polymer
    O-Rings: Buna-N
    Second Stage:
    Flexible & Ridged Thermoplastics, Elastomeric Polymers & Silicone Rubber
    O-Rings: Buna-N

  • Hose Thread

    3/8"

  • Hose Length

    30" (76cm)

  • Total Weight

    42.6 oz. (1,208 g)

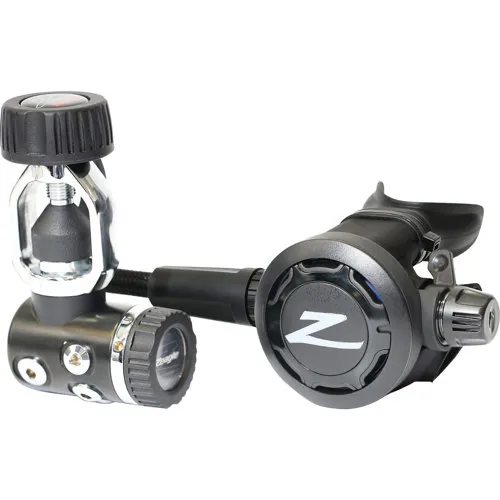

About Zeagle Onyx II Yoke Regulator

FEATURED REVIEWS

Zeagle Onyx II

By Jeff A.

Bought one for me and one for the wife. Plenty of features and quality for the price. Extremely easy breathing 2nd stage. Tendency to free flow easily at the surface. Have to use Venturi adjustment and crank the breathing resistance back a bit if you want it to stop. Or just turn it upside down. Have dove several dives already down to 80 feet and temperature of 48 degrees with absolutely no problems. Love this regulator. Changed bite wings out because they were a bit thick for our liking. Not...

View full Review

Nice regulator

By EDWARD S.

Got this as a back up and am very pleased with it

The Zeagle Onyx II Regulator is a high-performing, reliable diving gear that rivals many more expensive alternatives. Its innovative design allows direct airflow through the first stage, ensuring low turbulence and superior performance. The regulator's conical precision stainless steel high-pressure valve and advanced polymer seat offer increased reliability and durability while enhancing responsiveness and performance across all breathing rates. Manufactured in the USA under stringent quality controls, Zeagle's regulators are made to last.

The first stage regulator is crafted from black chrome plated marine brass with a balanced diaphragm design, which is inherently environmentally sealed. This design prevents water contaminants like salt, sand, and chlorine from entering the internal mechanism, thereby reducing corrosion and mineral deposits. As a result, the regulator's performance remains consistent and long-lasting.

Equipped with two high-pressure (HP) 7/16" threaded ports and five low-pressure (LP) 3/8" threaded ports, this first stage regulator allows for attachment of gauges and other accessories such as inflator hoses and octopus regulators. Its balanced diaphragm design, coupled with high-performance porting and environmental and dry seals, ensures years of reliable, corrosion-free service in cold water conditions.

The Onyx Second Stage is a lightweight, compact, and comfortable regulator featuring adjustable inhalation resistance controls, free-flow control, and an anodized aluminum heat sink with an anti-freezing feature. It's designed to resist free-flow on the surface while providing smooth, effortless breathing underwater. Made from flexible and rigid thermoplastics, elastomeric polymers, and silicone rubber, this pneumatically balanced downstream demand valve second stage regulator is durable and efficient. The complete set weighs 42.6 oz. (1,208 g) with a 30" (76 cm) hose and comes with a detailed owner's manual. It's Nitrox-ready up to 40% straight out of the box, making it perfect for all kinds of diving.

Zeagle Onyx II Yoke Regulator Features

  • Zeagle Onyx II Yoke Regulator:
  • Made in the USA
  • Hose Length: 30" (76cm)
  • Weight: 42.6 oz. (1,208 g)
  • Factory Ready: EAN/ Nitrox to 40% O2
  • Cold Water Design First & Second Stage
  • Comprehensive Owner's Manual
  • First Stage:
  • Balanced Diaphragm Design
  • High Performance Porting
  • Precision Stainless Steel HP Valve with Advanced-Polymer Seat
  • HP Valve: Improves Responsiveness & Performance at All Breathing Rates
  • First Stage Materials:
    Body: Marine Grade Black Chromed Brass
    HP Valve: Stainless Steel
    Seat: Advanced Polymer
    O-Rings: Buna-N
  • Inherently Environmentally Sealed
  • Dry Environmental Seal with Hydro Transmitter
  • 5 Low Pressure Ports (3/8"-24 UNF)
  • 2 High Pressure Ports (7/16"-20 UNF)
  • Second Stage:
  • Pneumatically Balanced Downstream Demand Valve
  • Lightweight, Compact and Comfortable
  • Diver Adjustable Inhalation Resistance
  • Venturi (Free-Flow) Control
  • New Compact Profile
  • Built-In Anti-Freezing Heat Sink Feature
  • Second Stage Materials:
    Cover: Flexible Thermoplastics
    Case: Ridged Thermoplastics
    Heat Sink: Anodized Aluminum
    Diaphragm: Elastomeric Polymer
    Exhaust Valve: Elastomer
    Mouthpiece: Silicone Rubber
    O-Rings: Buna-N
