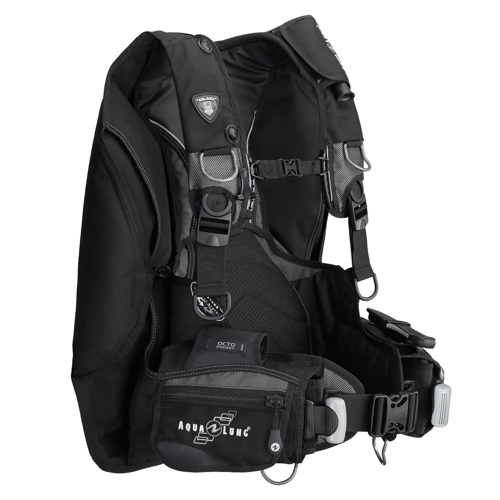

Used Aqualung Dimension I3 BCD, Size X-Large

SKU: US30167 MFR: 308405
Free Shipping

See Options

Protect your gear with Protect+.* Learn more

1 Year

$18.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Jeffery M : What material is the backplate?Mario C : its a hard ( vs soft/no backplate style) backplate the exact material its made from is not described by the manufacturer.. you can try aqualung straight to see if they would know.... <a href="http://www.aqualung.com/" target="_blank">http://www.aqualung.com/</a>
Shopper : How do you blow the bc up manually?Matt S : The is a tube on the left shoulder that you blow intoKURT K : There is a flex tube that is folded and secured on left shoulder via velcro flap. the tube is easily extended for access. the diver then puts mouth piece in mouth and gently pull while exhaling into mouth piece.MARK B : With the foldable manual inflation mouthpiece.
Karol S : Does the Aqua Lung Dimension i3 BC come in any size larger than XL?Mario C : Thank you for your question. The largest size made on the Dimension i3 line is XL
Sheri H : Does this require a specialized low pressure fill hose? It seams that a standard would not be long enough and I don't want to have a regulator setup that couldn't be used on a rented BC in a pinch.Ross M : I bought a standard Reg setup from aqua lung and it fit just fine. It's really a great BCDCLINT C : I originally bought Dimension i3 to replace an old Seaquest Balance which unused for over 15 years but damaged the bladder.. The required LP hose for the i3 is specialized only as to length not to connection. The hose included is longer allowing to feed around the back and side and connect to the i3 inflator. Note that it is possible not to use the i3 inflator and instead connect a standard inflator to the shoulder valve using a standard length hose. I actually wore the BC with both on occasion. Ultimately I did not the like the BC or i3 feature as I found the whole unit bulky and overly bouyant. I used it for less than 30'dives before getting a new Scubapro Hydros which I loveKYLE L : It does require a longer than standard fill hose, but the fill hose needed is included with the BCD.ROBERT M : The BCD does require a longer hose than you typically find in a rental reg and it is included with the purchase. I do not have my own Reg but have not found this to be an issue as I carry the lp fill hose with me. Every shop has been happy to swap out for me. Note: these are not special hoses, just a bit longer than for a standard inflator setup. BTW, the BCD is great. Diving with it right now on Gili Trawangan :-).TERAH H : It does not require a special hose. Your normal reg set up will work. I really, really love this BC, enjoy!KURT K : standard works fine
Shopper : Where are all the dump valves located?VANIA W : On the right shoulder

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Dive into your next Adventure

Protect your favorite Scuba.com pre-owned gear after the retailer warranty ends with an extended protection plan.

Repair or Replacement

Repair or Replacement

If your equipment stops working, we'll repair it at no additional cost! And if we can't fix it, we'll replace it!

Accidental Damage

Extended Protection

Protect your pre-owned gear after the retailer warranty ends.

Failure Protection

Failure Protection

When your gear experiences a mechanical or electrical failure, you’re covered.

Zero Deductible

Zero Deductible

We’ll never charge you a deductible after the purchase of a plan. No fees. No deductibles. No hidden costs.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy with 24/7 online support.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Protect+ powered by Extend is available for purchase to customers in the United States. Not available for international and U.S territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Aqualung Dimension I3 BCD, Size X-Large Specifications

  • BC Body

    Back Inflator

  • Buoyancy Bag

    SM: 35 lbs (15.88 kg)
    MD, ML, LG and XL: 50 lbs (22.68 kg)

  • Valves

    2 Over-Pressure Relief/Dump Valves, 1 Cable Activated Pull Shoulder Dump

  • Pockets

    1, Zippered

  • Shoulder Straps

    Torso Adjustable

  • Stainless Steel Rings

    Yes, 4

  • Waist Strap

    Adjustable Waist Strap with "Squeeze-Style" Quick-Release Buckle

  • Chest Buckle

    Adjustable Sternum

  • Oral Inflator

    Aqua Lung i3 Inflator System

  • Materials

    1000D Armor-Shield Cordura with Internal Urethane Lamination

  • Weight Integrated

    Yes

  • Weight Capacity

    Releasable: 20 lbs (9 kg) Non-Releasable: 10 lbs (4.5 kg)

  • Weight

    7.31 lbs (3.32 kg)

5 Accessories for Aqualung Dimension I3 BCD, Size X-Large

  • All Accessories (5)
  • Equipment Care & Maintenance (2)
  • BCD Accessories (1)
  • Computer Accessories (2)

About Aqualung Dimension I3 BCD, Size X-Large

The Dimension i3 is a feature-rich, back inflation style BC that incorporates Aqua Lung's patented i3 inflation/deflation system. Its amazing comfort and stability come from the integrated Wrapture Harness System. The Dimension i3 is made from durable, fade-resistant materials and comes in a black/charcoal colors combination. Integrated weights are held securely in place with SureLock II mechanical weight system. Wrapture Harness System (pat. pend.) Using patented swivel shoulder buckles and a proprietary, ultra-thin back plate, the Wrapture provides unsurpassed comfort and stability. Wrapture prevents the BC from riding-up" on the surface. Out of the water, the Wrapture keeps the cylinder close to your center of gravity and transfers the weight to your hips. The result is the ability to stand up straight with a cylinder that is perfectly vertical.

i3 Control System (patented) provides easy, one-touch control for inflation and deflation. Eliminates the traditional inflator that dangles at the end of a corrugated hose. i3 is simple and intuitive - just lift-up on the lever to inflate and push down on the same lever to dump air. What's more, when you push the lever down, all the dumps, upper and lower, open at the same time! Inflator comes with a 3/8" threaded low pressure quick-disconnect hose. The pull down oral inflator is easy to deploy, use and stow.

SureLock II Mechanical Weight Release System (patented) provides a safe, single-pull release. Inserting weight is as simple as insert and click". With SureLock, your weights are secure in the BC. Once engaged, the only way to release the weight is to pull on the handle. The Sure-Lock II Mechanical Weight Release System with 20 lbs. (9 kg) Capacity. The Dimension also has fixed non-releasable weight pockets attached to the cylinder band with capacities of 10 lbs. (4.5kg).

A bladder retraction system is used to pull in the sides of the bladder during deflation. This keeps unit streamlined and reduces drag. An adjustable chest strap can be raised or lowered on a rail system. This not only ensures a good fit but also keeps strap from running across top of a dry suit valve. HP and MP hose routings through the back keep your entire kit low profile thus minimizing drag. Flat e-valves are very streamlined and effective. They are also "one-way" which keeps water out. A clever octo-pocket on the right lobe keeps the octopus accessible and out of the sand. The octopus remains visible and accessible throughout the dive. Pocket within a pocket A small security pocket is found on the flap of a larger drop-down pocket. Knife attachment points are found on the left lobe which will accommodate many of the Aqua Lung knives. This location provides easy access to the knife. BC features 4 stainless steel D-rings and 1 plastic D-rings for all your accessories. Right shoulder pull dump provides an additional dumping option. BC provides rolled neck collar for comfort. The Dimensions i3 BCD provides 35 lbs. (15.88 kg) of lift in sizes small and 50 lbs. (22.68 kg) in all other sizes. BCD comes with an owner's manual.
