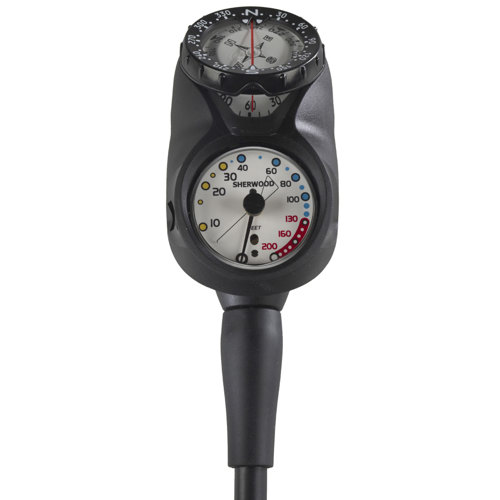

Sherwood CG3206 Navigational Console 200"
SKU: SWDTG6
This item is no longer available.
Here are Similar Triple Gauges:
Recommended Alternatives
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About SHERWOOD SCUBA Gauge
FEATURED REVIEWS
I would buy again
I like the arrangment of the gauges. On one side it has the compass and depth whitch is great because you can see them both at the same time, this is good for us beginners who might have trouble staying at one depth, and the pressure gauge is by itself and easy to see.
great and simples
great and simple as always
The Sherwood Navigational Console is a low profiled and ergonomically designed to fit in the hand comfortably and is easy to read at a glance with its outstanding graphics. The console has an air-filled depth gauge with a 0 to 200' readout and maximum depth indicator. The maximum depth indicator needle will mark your deepest depth reached on a dive. This feature is helpful when logging dive information providing key data for repetitive dives. The colored graphics allow quick glance monitoring with bright depth indicators at strategic positions on the gauge face. The yellow indicators are at 0' to 30'. The depth ranges from 35' to 120' is in blue and then from depths beyond the standard sport diving limits of 130' to 200' is in red. Gauge face is luminescent for night or low light situations.
Pressure gauge has a pressure readout from 0 to 5,000 psi and features a temperature gauge. The pressure gauge like the depth gauge has high visibility graphics with bright red from 0 to 500 psi of reserve air. Yellow indicators above 500 to 1,000 psi for extended reserve Air for deeper dives and blue above 1,000 to 5,000 psi. Pressure gauge face is also luminescent. The temperature gauge has a bright red needle for easy reading. Pressure gauge comes with a 32" high-pressure 7/16" threaded hose. Both the depth and pressure gauges are small 1 75" diameter.
There are no street signs underwater. The reef is not on the corner of 3rd and Elm! Knowing which way to go or finding your way back to the beach or boat is made easy with a compass. Many divers take compasses for granted, considering them just an accessory to an overall dive gauge console system. Trying to navigate with a poorly designed or improperly functioning compass can be one of diving's more frustrating events. The Genesis compass is liquid filled for a quick and responsive movement. With a list of features as functional and convenient as every instrument that bears the Genesis name. A ratchet bezel with compass headings in 30° numbered increments and indicator marks for every 10°. Bezel has twin heading indicators for alignment of compass course and a lubber line across the compass face. The Genesis is a dual-purpose compass. The convenient side window allows quick reference of large, easy-to-read bearing indicators on a luminescent display for gun-sight accuracy. Or, for divers who prefer relative navigation, the ratchet bezel can be rotated easily even with thick neoprene gloves.
The luminous dial of the compass is designed with a half black / half luminous graphic to make quick work of compass direction, especially in dim light. The dial (compass card) rests on a precision jeweled bearing and incorporates extremely strong magnets for super quick response and accuracy. While the compass module itself is very-compact, the housing has a large vertical interior allowing viewing angles that would stop other compasses in their tracks. All instruments are protected by an impact resistant rubber boot that has rubber eyelets for attachment of a lanyard or clip keeping the diver streamline and reef and environment conscious.
SHERWOOD SCUBA Gauge Features
- Sherwood CG3206 Navigational Console 200":
- Complete Analog Instrument Console
- All Instruments with Luminescent Dials for Night or Low Light Situations
- Ergonomic Design Impact Resistant Rubber Boot
- Multiple Attachment Points for Clips or Lanyard
- Depth Gauge:
- 200' Air Filled Depth Gauge
- Maximum Depth Indicator
- High Visibility Graphics
- Color Coded for "At-a-Glance" Reading
- Strategic Color Coded for Safety:
Yellow Indicators; 0' to 30'
Blue Indicators; 35' to 120'
Red Indicators; 130' to 200' - Pressure Gauge:
- 0 to 5,000 psi Read Out
- Color Coded for Added Safety:
Red Safety Reserve 0 to 500 psi½ - Yellow 500 to 1,000 psi for Extended Reserve Air for Deeper Dives
Blue above 1,000 to 5,000 psi - Shock Resistant Bourdon Tube Mechanism
- Gauge Case: Tough Glass-Filled Noryl
- Gauge Face (Lens): Durable Lexan
- Temperature Gauge
- Bright Red Temperature Gauge Needle for Ease-of-Reading
- 32" (81.3 cm) High Pressure Hose with 7/16" Threads
- Compass:
- Liquid Filled Compass
- Top and Side Reading
- Designed for Excellent Navigation
- Gun-Sight Accurate Navigation
- 360° Ratchet Bezel with Direction and Reciprocal Index Points
- Twin Heading Indicators
- Lubber Line
- Precision Jeweled Bearing
- Strong Magnets for Quick Response and Accuracy
- Mounted on Angle for Easy Reading
Warranty Information
This product has a limited warranty of 24 months.
