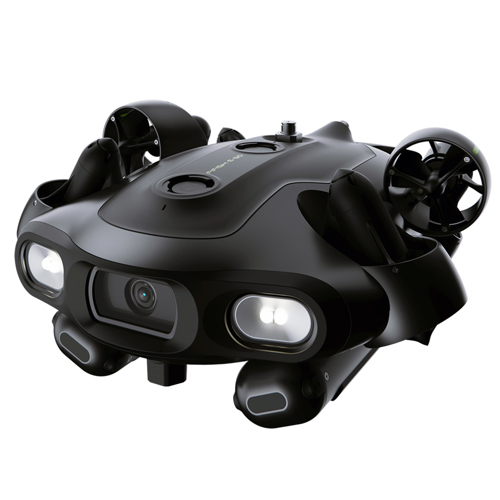

Qysea FIFISH E-GO E200A Underwater ROV Kit with Robotic Arm and 200m Tether

SKU: QYFISHEGE20A MFR: FIFISH E-GO E200A

Key Features

  • Capture stunning underwater 4K video with the FIFISH E-GO's advanced camera system.
  • Explore depths up to 328 feet with this underwater drone, perfect for marine exploration.
  • Enjoy 2.5 hours of dive time with the E-GO's long-lasting, quick-swappable smart batteries.
  • Easily maneuver with 6 degrees of freedom & maintain stability with precise posture lock.
  • Use the robotic arm with parallel gripper for sample collection or underwater repairs.
  • Navigate confidently with obstacle avoidance and real-time positioning for safer dives.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Qysea FIFISH E-GO E200A Underwater ROV Kit with Robotic Arm and 200m Tether Specifications

ROV
  • Number of Propellers

    6 (FIFISH Ring-Wing Motors)

  • Maneuverability

    6 DOF (Degree of Freedom)
    Moving: left & right, up & down, forward & backward
    Rotation: 360 Degree yaw, 360 Degree pitch, 360 Degree roll

  • Posture Lock

    +/- 0.1 Degree pitch angle or +/- 0.1 Degree roll angle and moving in any direction

  • Depth Holding

    Suspending in +/- 1 cm

  • Depth Rating

    328' (100m)

  • Operating Temp.

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Battery

    Operating Time: 2.5 hours (may vary depending on working conditions)
    72Wh x2
    Number of Batteries: 2
    Swappable Battery: Supports quick replacement (Without shutting down machine)
    Smart battery management and detection
    Fast Charging: 90% in 1 hour

LED Beams

Jump to...
  • Brightness

    5000 lumen x2

  • CCT

    5500K

  • Beam Angle

    160 Degree

  • Motor Type

    Bionic Ring

  • Number of Wings

    6 Propeller

  • Blade Material

    Hard Anodized Aluminum Alloy

Charger

Jump to...
  • ROV

    Input: 100-240 V, 50/60 Hz, 2.5 A MAX
    Output: 18V 10A

  • RC

    Input: 100-240 V, 50/60 Hz, 0.5 A MAX
    Output: 5V 3A,DC

Port Interface

Jump to...
  • Quantity

    2 Ports (Expandable to 6 Ports)

  • Interface (Upper)

    11V-24V@5A ETHERNET,UART

  • Interface (Lower)

    12V@5A ETHERNET,UART

  • Adjustable power

    Adaptive voltage range for external accessories

  • Secure plug

    Self-diagnostic tests, leakage prevention

  • Sensor

    1/1.8"

  • Effective Pixels

    8M

  • Aperture

    f/2.5

  • FOV (Underwater)

    H: 120 Degree
    V: 70 Degree
    D: 146 Degree

  • Focus Range

    0.1m to infinity

  • ISO

    Auto, 100, 150, 200, 300, 400, 600, 800, 1600, 3200, 6400

  • White Balance

    2500K, 2700K, 3000K, 3500K, 4000K, 5000K, 5500K, 6000K, 7000K, 8000K

  • Exposure Compensation

    Auto, +3,+2,+1,0,-1,-2,-3

  • Photo Resolution

    3840x2160

  • Photo Format

    JPEG, DNG

  • Video Resolution

    4K30fps (H.264) 4K25fps (H.264/H.265)
    1080p120/100fps 1080p60/50fps 1080p30/25fps
    720p180/150fps 720p120/100fps 720p90/75fps
    720p60/50fps

  • Video Encode

    H.264, H.265

  • Stabilization

    Electronic Stabilization

  • Color System

    NTSC & PAL

  • Internal Storage

    External, expandable up to 256GB (standard 128GB)

  • Camera Function

    Al Vision Station Lock

Remote Controller

Jump to...
  • Wireless Network

    5GHz WiFi,11a,n,ac

  • Battery Usage Time

    Greater than 4 hours

  • File Download Format

    FAT32&EXFAT (maximum storage support of 256GB)

  • HDMI Output

    Requires QYSEA HDMI BOX for connection

Tether & Spool

Jump to...
  • Cable length

    656.1' (200m)

  • Tensile strength

    130kgf

  • Cable diameter

    4.0mm

  • Underwater weight

    Neutral buoyancy

  • Waterproof rating

    IP67

Robotic Arm+Parallel Gripper

Jump to...
  • Size

    140mm

  • Grip

    10kgf

  • Power Supply Voltage

    9-12V

  • Maximum Current

    3A

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Dimensions

    16.92 x 13.58 x 6.69" (430 x 345 x 170mm)

  • Weight

    11.24 lbs (5.1kg)

  • UPC Code

    768434015600

About Qysea FIFISH E-GO E200A Underwater ROV Kit with Robotic Arm and 200m Tether

Elite, Aesthetic & Functional

Optimized Form & Structure
The brand new FIFISH E-GO features a sleek and curved exterior inspired by the hammerhead shark, providing the E-GO with exceptional resistance to underwater currents.

Fluid Dynamic Design & Build
With its biomimetic shark tail fin design and streamlined fluid dynamics, the FIFISH E-GO effortlessly maneuvers through underwater operations, smoothly navigating the oceans.

Advanced Power & Strength
With FIFISH E-GO's new Ring-wing design, experience a 30% increased speed and 50% improved kinetic energy efficiency from previous generations. The E-GO's anodized aluminum alloy blades deliver strong damage resistance, corrosion resistance, and anti-crystallization. Carry out smooth and worry-free operations.

Complete Freedom of Movement
FIFISH E-GO achieves 360 Degree omnidirectional movement and hovering capability, with zero blind spots. Powered by six-axis vector motors, FIFISH E-GO excels in all-dimensional underwater operations.

See Beyond Limits with Ultra-wide Vision
Equipped with a 176 Degree ultra-wide-angle reconnaissance camera, FIFISH E-GO sets the standard as the only robot in its class boasting a 146 Degree fisheye field of view. Experience the forefront of underwater imaging technology.

10cm Underwater Macro Capture
With a macro focus range of 10cm, FIFISH E-GO achieves maximum proximity to targets, allowing for a clear field of view across a range of underwater environments.

Empowered Operations with AI
FIFISH E-GO's AI Vision Station Lock enables effortless one-click target lock of underwater objects. With automatic hovering and current resistance, it provides reliable stability and support for underwater operations.

AI Filtering Algorithms, Operate with Clarity
FIFISH's AI plankton filtering algorithm automatically identifies underwater plankton and enhances image quality through a detailed filtering system, resulting in optimized clarity and visibility of footage.

Powerful Illumination, Conquer the Depths
Equipped with four LED light sources, FIFISH E-GO boasts an industry-leading brightness of 10,000 lumens. With a wide 160 Degree lighting coverage angle, it illuminates the extremely dark underwater environments, enabling explorations with clarity and confidence.

Modular Structure & Design
Integrating four major modules - motor, imaging, lighting, and battery, FIFISH E-GO allows for swift spare parts replacement and maintenance, providing unparalleled convenience and efficiency.

Instant Power Replacement, Achieve Seamless Operations
The FIFSH E-GO features a dual hot-swappable battery system, each with a 72Wh capacity. Its innovative hot-swappable design enables seamless battery replacement without power loss, instantly restoring full power. The upgraded quick-disassembly structure incorporates pressure-resistant, waterproof, and corrosion-resistant connectors for fast and secure battery replacement.

Portable Charging Station, Worry-free Workflows
The portable and powerful Q-Energy Station provides rapid charging, reaching 90% capacity in only 50 minutes. A feature resolving battery life concerns, making it an ideal choice for extended underwater operations.

Dual Accessory Ports, Double Your Efficiency
Experience enhanced versatility with the E-GO's redesigned internal space, featuring dual payload interfaces that allow operators to attach up to six operational tools simultaneously. Unlock a new level of capability and adaptability for a wide range of tasks.

Quick Release Design, Maximize Your Productivity
Optimize your operational efficiency with the E-GO's upgraded quick-release installation and disassembly structure. Attach operational accessories in as fast as 9 seconds, revolutionizing workflow efficiency and maximizing productivity.

Professional Add-ons, Customizable Combinations
The E-GO offers limitless flexibility by supporting a wide range of accessories, allowing operators to create a diverse array of operational setups. Leveraging its professional capabilities, it effortlessly adapts to different operational scenarios, ensuring optimal performance and versatility.

Quick Data Storage & Transfer
Maximize work efficiency with the E-GO's built-in Micro SD card slot. Get fast access to underwater operational data, allowing for efficient storage and retrieval of essential information of up to 256GB.

Expand Your Toolset, Adapt with Ease
With a diverse selection of FIFISH underwater operation tools, the E-GO offers the flexibility to be equipped with various accessories, enabling seamless adaptation to different operational scenarios.

Qysea FIFISH E-GO E200A Underwater ROV Kit with Robotic Arm and 200m Tether Features

  • 4K UHD Camera 176 Degree FOV Lens
  • AI Vision Station Lock
  • 10,000 Lumen Lights 160 Degree Beam Angle
  • Hot Swappable Power System
  • Dual Q-IF Accessory Ports 3.0
  • Modular Quick Release Design
  • Powerful Ring-wing Motors
  • 360 Degree Omnidirectional Movement
  • Next-generation Underwater Operational Robot
  • Underwater Operations Transformed
  • Subsea Robotics Redefined
  • Driving Industry Innovation
  • Unlock & Elevate Your Subsea Capability
  • Operate & Explore without Boundaries

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning underwater 4K video with the FIFISH E-GO's advanced camera system.
  • Explore depths up to 328 feet with this underwater drone, perfect for marine exploration.
  • Enjoy 2.5 hours of dive time with the E-GO's long-lasting, quick-swappable smart batteries.
  • Easily maneuver with 6 degrees of freedom & maintain stability with precise posture lock.
  • Use the robotic arm with parallel gripper for sample collection or underwater repairs.
  • Navigate confidently with obstacle avoidance and real-time positioning for safer dives.

What's in the box:

  • FIFISH E-GO Underwater ROV
  • Robotic Arm with Parallel Gripper
  • 2x 5000 Lumen LED
  • 200m Tether with Manual Waterproof Spool
  • 128GB Storage Card
  • 2x 72Wh Battery
  • Remote Controller
  • 2x Adapters for RC and E-Go
  • 2x Q-Interface
  • Upper Tool Mount
  • Hard Case
  • Hardware Tool and Box
  • MFG 1 Year Limited Warranty
