Questions & Answers

John C : Does it require single tank adapter? If so, does STA come with the package or need to be purchased separately?JEFF S : Mine came with the STA adapter . The tank straps hold the hold the wing in place. You can order the screw couplers as well to keep the wing in place more securely
doug d : can I buy just the bladder? ...price?YAN G : Yes, check here: <a href="http://www.leisurepro.com/p-divbc4700/dive-rite-voyager-exp-wing" target="_blank">http://www.leisurepro.com/p-divbc4700/dive-rite-voyager-exp-wing</a> $280.
Shopper : does cam band come with this? if so, how many?JUNE H : It comes with Dual Cam Straps with Stainless Steel Buckles.
Blaise C : i am 1.67m in height (5"6,7") which falls in between M & L. Is there a major difference that can effect the "perfect fit" between the 2 different sizes??BRIAN H : The only difference in those transpac sizes are the shoulder pads. They are just a bit longer with each size up. I am 5'7'' and because of my chest size I wear an XL. I would opt for the bigger size since this system is designed to be infinitely adjustable for that perfect fit with a wetsuit, drysuit, or no suit.
DONALD H : Sounds like a great BCD. I only dive in warm water (think Cozumel). I use a single steel HP 120. Will this BCD accomodate an HP 120? The description indicates that it will only handle a 95?MICHAEL C : The largest tank size this package can accommodate is a 95 cf tank, it cannot be used with a 120.

Reviews about this item

Review Summary

2018-07-09T20:42:33

Rated 5 out of 5

Well done LP!

By offering the gear in a package we’re presented with great value. Gear is great quality and you can get it for a great price.

IEGOR J.

Dive Rite TransPac Voyager EXP Package Specifications

Harness Assembly

Harness Assembly

Jump to...
  • Materials

    Backpack: 1,000-Denier Ballistic Nylon, Nylon Webbing & Molded Foam
    Hardware: Stainless Steel And Acetyl-Resin

  • Cylinder Capacity

    Single or Double Tanks

  • Stainless Steel D-Rings

    Yes, Shoulders: 2 to 4 (Harness Size Dependent)
    Waist Strap: 2
    Crotch Strap: 1

  • Crotch Strap

    Yes

  • Dry Weight

    XS/SM: 4 lbs 4 oz (1.92kg)
    MD: 4 lbs 8 oz (2.1kg), LG: 4 lbs 12 oz (2.15kg), XL: 4 lbs 14 oz (2.2kg), XXL: 5 lbs (2.23kg)

  • Buckles

    Waist: Latch-Style
    Shoulders & Chest: Squeeze Style Quick-Release Buckles

  • Webbing Tensile Strength

    7,000 lbs (3175kg) Breaking Strength

  • BC Body

    Wing, Back Inflator

  • Buoyancy Bag

    35 lbs (15.8kg)

  • Valves

    Over-Pressure Relief/Dump Valve

  • Oral Inflator

    Dive Rite Power Inflator

  • Materials

    Outer Bag: 1680-Ballistic Nylon
    Bladder: 210-Denier Nylon Urethane Laminated
    Grommets: 316-Stainless Steel

  • Weight

    2.8 lbs (1.13kg)

Weight Pockets

Jump to...
  • Materials

    Pockets: 1680-Denier Ballistic Nylon Fabric
    Buckles; Acetyl
    Grommets: Nickel Plated Brass

  • Weight Capacity

    20 lbs (9.1kg)

  • Releasable

    Yes

  • Closure

    Quick-Release Buckle
    Hook & Loop Fastener

About Dive Rite TransPac Voyager EXP Package

FEATURED REVIEWS

Well done LP!

By IEGOR J.

By offering the gear in a package we’re presented with great value. Gear is great quality and you can get it for a great price.

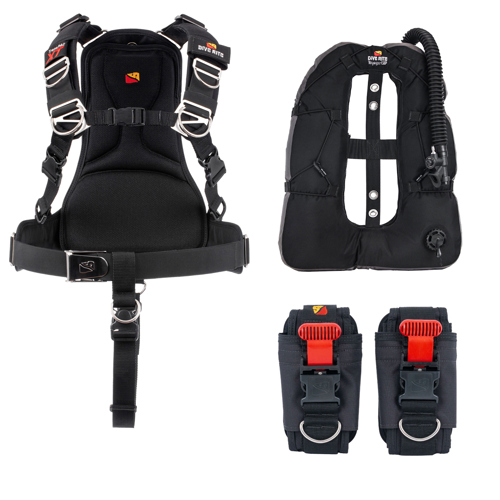

Looking for a Great Tec Harness with Single Tank Wing? Diver Rite has just what you're looking for! The Dive Rite TransPac Voyager EXP Package consists of the following items:

DIVT3300 Dive Rite TransPac XT:
The Package starts with the Dive Rite TransPac XT Harness, exceptionally rugged, yet beautifully streamlined, the TransPac XT redefines expectations about function and comfort in Scuba harnesses. Dive Rites radically updated TransPac XT now provides a true mountaineer backpack design with an integrated hip belt, molded foam lumbar support and ergonomic shoulder pads. Available in multiple sizes with easy customization options at the shoulder and waist plate, the TransPac XT is designed to fit any size diver, including children.

The TransPac XT evenly balances weight across the hips and back distributing the weight of single or double tanks. The wrap-around hip belt made of dual density foam, snugly hugs the lower back giving critical support and cushioning. Narrow, double foam shoulder pads fit perfectly beneath the 2" (5.1cm) shoulder webbing to give chafe free comfort. The high-tech, molded foam lumbar pad is contoured in all the right places with mesh airflow channels for instant draining topside and doubles as a lift bag sleeve with an integrated pocket. Chest support strap provides ultimate load distribution and when used with the removable, 1.5" (3.8cm) crotch strap provides outstanding stability and comfort in the water. Transition plates at the shoulders allow for quick addition/deletion of hardware and finite adjustments. Dual cam straps with stainless-steel buckles are positioned to give plenty of head room for easy maneuvering in the water.

Neutrally buoyant, the TransPac XT weighs less than 5 lbs (2.29kg) and packs flat for travel. Optional weight pockets (see SKU: DIV3216) slide easily onto the waist belt. The soft backpack is 1,000-Denier ballistic nylon and the side plates and hardware are marine grade stainless-steel. The shoulder straps feature pivot rings at chest and Acetyl resin "squeeze style" quick-release buckles for easy don/doff. There are four 2" (5.1cm) D-rings on each shoulder strap on sizes M-XXL and 2 each on XS & SM. The harnesses 2" (5.1cm) nylon webbing is rated to 7,000 lbs (3175kg) breaking strength. The TransPac XT weighs 4.25 lbs to just less than 5 lbs (1.93 to 2.26kg) depending on size. The TransPac XT comes with an owner's manual.

DIVBC4700 Dive Rite Voyager EXP Wing:
The Voyager EXP is an outstanding wing for single tank diving with its low-profile, donut shape design. Streamlined side panels and a minimalist, oval shape creates a higher lift wing that remains unobtrusive instead of bulky. This is ideal for divers with larger statures or those who dive in cold water and/or require more weight. The Voyager accommodates up to one 95 cubic feet (15 liter) tank and provides 35 lbs (15.8kg) of lift.

With its donut shape, the Voyager Wing provides greater stability and control in the water. Donut style or 360-degree wings promote an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim. The Dive Rite Voyager EXP Wing is manufactured from value driven and durable 1680-ballistic nylon EXP material that is resistant to tears and abrasions. The Voyager EXP line's toughness is further enhanced with a heavy-duty, radio frequency (RF) welded 210-denier nylon urethane laminated bladder.

The Voyager EXP has urethane flanges welded in place which makes it easy to switch out corrugated hose and over pressure relief valves without tools. The Voyager EXP comes with either a 16" or 12" (40.6 or 30.5 cm) elbowed inflator and a low-pressure hose for attachment to the first-stage regulator. Wing has a lower left front over pressure relief/dump valve. Two sets of marine grade 316-stainless-steel grommet mounting holes are used to attach the wing to the harness and set divers trim. The Voyager EXP measures approximately (H x W) 22 x 19" (55.8 x 48.3cm) deflated and weighs 2.8 lbs (1.27kg). The Voyager EXP comes with owner's manual.

DIV3216 Dive Rite 16 lbs (7.3kg) QB Weight Pockets:
The Dive Rite 16 lbs (7.3kg) QB Weight Pockets are new and improved! The release handle is now reversed and Dive Rite added a hook and loop tab for extra security, keeping internal pouches from rolling when mounted horizontally.The 16 lbs (7.3kg) quick buckle (QB) weight pockets consist of an insert pocket that easily release when the handle is pulled and a holster that stays securely on the waist belt. Designed for use with the Trans-Pac Harness (see SKU's: DIVT3300, DIVTW), they can be worn vertically or horizontally with each pocket holding up to 8 lbs (3.6kg) of weight securely in position throughout the dive.

Simple, top loading pocket protects divers from an inadvertent buoyancy event by keeping weight securely in place. Worn at an angle on the waist belt for easier access, the right-hand pocket is identified by the Dive Rite Logo while the left-hand pocket is plain, without a Logo. Tall and narrow, Dive Rite's 16 lbs (7.3kg) QB Weight Pockets leaves plenty of room on the waist for other accessories, if desired. weight pockets are made from durable 1680-denier ballistic nylon fabric and is tear and abrasion resistant. Pockets attach to standard 2" (5cm) webbing of harness or BCD waist strap with 2" (5cm) nylon webbing loops on the back of the pockets. Acetyl quick-release buckle is used to easily open and close the pocket. The Dive Rite Weight Pockets come with nickel-plated brass grommets that are resistant to rust and corrosion. Weight pockets measure (H x W x D) 9 x 3.5 x 1.5" (22.9 x 8.9 x 3.8cm) and weigh 12 oz (340.2g) when empty. TransPac Travel XT Package is proudly made in the USA.

Dive Rite TransPac Voyager EXP Package Features

  • TransPac Voyager EXP Package:
  • Complete Harness & Wing System
  • Ideal for Divers w/Larger Statures or Dive in Cold Water
  • Owner Manuals
  • Made-In-U.S.A.
  • Harness: Dive Rite TransPac XT
  • Exceptionally Rugged, Beautifully Streamlined
  • Redefines Expectations of Function & Comfort In-Scuba-Harnesses
  • Mountaineer Backpack Design
  • Integrated Hip Belt, Molded Foam Lumbar Support & Ergonomic Shoulder Pads
  • Easy Customization Options
  • Designed to Fit Any Size Diver, including Children!
  • Evenly Balances Weight Across Hips & Back
  • Harness Usable w/Single or Double Tanks
  • Wrap-Around Hip Belt made of Dual Density Foam
  • Wrap-Around Hip Belt: Snugly Hugs Lower Back Giving Critical Support & Cushioning
  • Narrow, Double-Foam Shoulder Pads for Chafe-Free Comfort
  • Mesh Airflow Channels for Instant Draining
  • Mesh Airflow Channels: Doubles-As Lift-Bag Sleeve w/Integrated Pocket
  • Chest-Support Strap Provides Ultimate Load Distribution
  • Removable 1.5" (3.8cm) Crotch Strap
  • Chest-Support Strap & Crotch Strap: Provide Outstanding Stability & Comfort In-Water
  • Transition Plates: Shoulders for Quick Addition/Deletion of Hardware
  • Transition Plates: Finite Adjustments
  • Dual Cam Straps w/Stainless Steel Buckles
  • Soft Backpack: 1,000-Denier Ballistic Nylon
  • Side Plates & Hardware: Marine Grade Stainless Steel
  • Shoulder Straps w/Pivot Rings at Chest & Acetyl-Resin Squeeze Style Quick-Release Buckles for Easy Don/Doff
  • Four 2" (5.1cm) D-Rings on Each Shoulder Strap, Sizes M-XXL
  • Two 2" (5.1cm) D-Rings On-Each Shoulder Strap, Sizes XS & SM
  • 2" (5.1cm) Nylon Webbing: Rated to 7,000 lbs (3175kg) Breaking Strength
  • Weight: 4.25 lbs to Less than 5 lbs (1.93 to 2.26kg) Depending On-Size
  • Buoyancy: Neutral
  • Available-In Multiple Sizes
  • Back Inflator (Wing): Dive Rite Voyager EXP Wing
  • Ideal for Divers w/Larger Statures or Dive-In Cold Water &/or Require More Weight
  • Lift Capacity: 35 lbs (15.8kg)
  • Accommodates Up to One 95 cu. ft. (15 liter) Tank
  • Donut-Shape Provides Greater Stability & Control In-Water
  • Donut-Style 360-Degree Wing:
    Promote Even-Volume of Inflation On-Top, Sides & Bottom
    Improves Buoyancy Control & Promotes More Efficient, Horizontal Trim
  • Construction:
    Outer Bag Durable 1680-Ballistic Nylon EXP Material
    Resistant to Tears & Abrasions
    Bladder; Heavy-Duty, Radio Frequency (RF) Welded Seams
    210-Denier Nylon Urethane Laminated
  • Welded In-Place Urethane Flanges:
    Easy to Switch-Out Corrugated Hoses & Over Pressurization Valves
    No Tools Required
  • 16" or 12" (40.6cm or 30.5cm) Elbowed Inflator
  • Low Pressure Hose
  • Over-Pressure Relief/Dump Valve
  • Two Sets of Marine-Grade 316-Stainless Steel Grommet Mounting Holes
  • Dimensions (Deflated): Approximately (H x W) 22 x 19" (55.8 x 48.3cm)
  • Weight: 2.8 lbs (1.13kg)
  • 20 lbs (9.1kg) QB Weight Pocket, Set of 2:
  • Designed for TransPac Harness
  • Works w/Any Harness Using 2" (50.8mm) Webbing
  • Consist of:
    Insert Pocket, Easily Releases when Handle Pulled
    Holster, Stays Securely On Waist Belt
  • Improved Design!
  • Release Handle Reversed
  • Hook & Loop Tab for Extra-Security:
    Keeps Internal-Pouches from Rolling when Mounted-Horizontally
  • Insert Pocket Easily-Releases when Handle Pulled
  • Holster Stays Securely-On-Waist Belt
  • Worn-Vertically-or-Horizontally
  • Angled On-Waist Belt for Easier-Access
  • Easy ID Left-&-Right Hand Pocket Design
  • Tall-&-Narrow Design: Plenty-of-Room On-Waist for Accessories
  • Materials:
    Pocket: Durable Tear & Abrasion Resistant 1680-Denier Ballistic Nylon Fabric
    Buckles: Acetyl Quick-Release
    Nickel Plated Brass Grommets: Resistant to Rust & Corrosion
  • 2" (50.8mm) Nylon Webbing Loops for Mounting
  • Attach to Standard 2" (50.8mm) Webbing of Harness or BCD Waist Strap
  • Acetyl Quick-Release Buckle: Easily-Open-&-Close Pocket

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Dive Rite TransPac Package: Enjoy single or double tank dives with ease and comfort.
  • Voyager EXP Wing offers 35 lbs of buoyancy; perfect for various scuba diving conditions.
  • Travel with confidence using durable 1680-Ballistic Nylon; built for rugged dive trips.
  • Quick-release weight pockets hold up to 20 lbs for balanced and safe underwater exploration.
  • Stainless steel D-rings offer secure attachment points for dive gear and accessories.
  • Adjustable harness ensures a snug, custom fit; enhancing your scuba diving experience.
