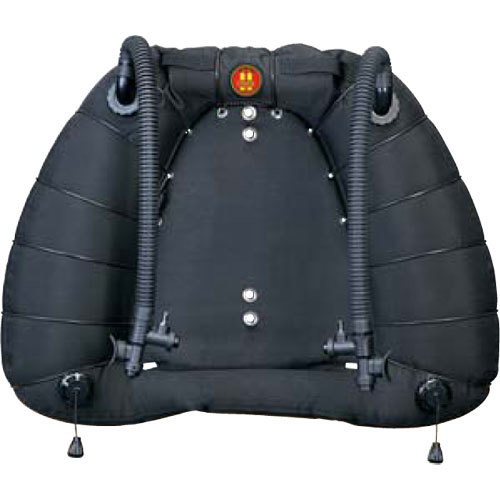

OMS Tesseract 60 lbs. (27.2 kg) Lift Dual Bladder Wing

SKU: OMSTBC

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Matthew S : Two questions actually. Is this wing designed to be used with back mounted doubles? And could it be used with a hybrid harness system like the Scubapro X-Tek Form Tek Harness?Mario C : made for back mounted doubles do not have answers for cross-branding harnessesELJORN N : Yes works well with backmount doubles. Don’t know if it works with those other rigs. Good luck
ELJORN N : Hello I am an experienced technical diver Trimix & full cave. I am diving off boats that don't have my favorite twin 80's doubles available. What I would like to do is have a dual bladder wing in my current backplate which can accomodate sidemount 80's for ease of logistics. Is this wing or something else best suited for this purpose ?Christopher D : This dual bladder would be a great option for that type of diving and should serve you well.
TONY C : can it be used with an OMS al. backplate and single web harness? Also, can it be used with the IQ harness?Monica s : Yes and Yes.
Shopper : Can you use this wing with the IQ pack and back plate, or is it primarily meant for the OMS sidemount setup?Monica s : This information is not clear, best thing to do is contact them directly at <a href="http://www.omsdive.com" target="_blank">www.omsdive.com</a> (845) 692-3600 Thanks

Reviews about this item

Review Summary

OMS Tesseract 60 lbs. (27.2 kg) Lift Dual Bladder Wing Specifications

  • BC Body

    Wing

  • Buoyancy Bag

    60 lbs (27.2 kg)

  • Valves

    Overpressure Relief/Pull Dump

  • Oral Inflator

    OMS Power Inflator

  • Materials

    Outer Bag: 1000-Denier Nylon with 5-6oz (141.75-170.1g) Thermoplastic Polyurethane (TPU) Backing, Bladder: Polyurethane with Ultrasonic Welded Seams

  • UPC Code

    4251088250092

About OMS Tesseract 60 lbs. (27.2 kg) Lift Dual Bladder Wing

The OMS Tesseract 60 lbs. (27.2 kg) lift dual bladder is equipped with elastomeric bands for low drag and is the perfect complement to the OMS Profile side-mount system, or a re-breather. Double Bladder Wings are designed for the diver that prefers a wing with a redundant bladder. The secondary bladder is designed to ensure proper buoyancy control in the event of primary bladder failure. The Tesseract like all other OMS BC's uses rugged 1000 denier nylon backed with 5-6 oz. (141.75-170.1g) thermoplastic polyurethane (TPU) for superior abrasion resistance in all overhead environments on the outer bag. The inner bladder is constructed of tough polyurethane material with ultrasonically welded seams and fittings for added strength. The inflation and dump valves are interchangeable for ease of configuration from top to bottom. Like all OMS BC's the Tesseract integrates with many OMS harnesses where integral pull dump tunnels can be used to route the BC dump valve cords for ease of access.

This Wing is engineered with a "donut design", resulting in superior buoyancy and trim control. The top of the BC (neck area) has a narrower air pathway design and the bottom air tunnel adds 10 lbs. (4.54 kg) of lift (butt area) creating an optimum "heads up" trim position. The Tesseract Wing by design maintains a low profile and drag ratio due to the new and unique retraction band system. Diver's side located inflator and dump assemblies eliminate "hang-ups", impact damage and drag in overhead environments. Both OMS inflators come with low pressure 3/8" threaded quick-disconnect (QD) hoses. The wing comes equipped with four corrosion resistant stainless steel grommets for harness mounting. The OMS Tesseract Dual Bladder Wing comes with an owner's manual.

OMS Tesseract 60 lbs. (27.2 kg) Lift Dual Bladder Wing Features

  • OMS Tesseract Dual Bladder Wing:
  • Lift Capacity: 60 lbs. (27.2 kg)
  • Designed for Diver Preferring Wing with Redundant Bladder
  • Redundant Bladder: Ensure Proper Buoyancy in Event Primary Bladder Fails
  • Durable Elastomeric Silicone Rubber Bungee Tubing:
    Must for Increasing Deflation Rate
    Create Lower Profile, Less Drag
    Handy when Diving Overhead, Cave & Wreck Environments
  • Inflation & Dump Valves: Interchangeable for Ease of Configuration
  • Integrates with OMS Harnesses: Pull Dump Tunnels, Routes Dump Cords for Ease of Access
  • Donut-Style Wing: Allows Easy Movement of Air Side-to-Side
  • Bladder Design: Provides Optimum "Heads Up" Trim Position
  • Diver's Side Inflator & Dump Assemblies:
    Eliminate "Hang-Ups"
    Prevents Impact Damage
    Won't Drag in Overhead Environments
  • OMS Power Inflators
  • 3/8" Threaded Low Pressure Quick-Disconnect Hoses
  • Lower Overpressure Relief/Pull Dump Valves
  • Outer Bag:
    1000-Denier Nylon w/5-6 oz. (141.75-170.1g) Thermoplastic Polyurethane (TPU) Backing
    TPU Backing, Protects Against Abrasion & Punctures
  • Inner Bladder:
    Polyurethane with Ultrasonic Welded Seams
    Zipper Access to Internal Bladder
    Interior Backing for Zipper: Provides Protect for Bladder
  • 4-Stainless Steel Grommets for Harness Mount
  • Owner's Manual

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Wing design with redundant bladder
  • Built with retraction band system
  • Reduces drag and chance of entanglement
  • Donut style wing for otimum trim control
  • Designed to prevent impact damage on reefs

What's in the box:

  • OMS Tesseract 60 lbs (27.2 kg) Lift Dual Bladder Wing
