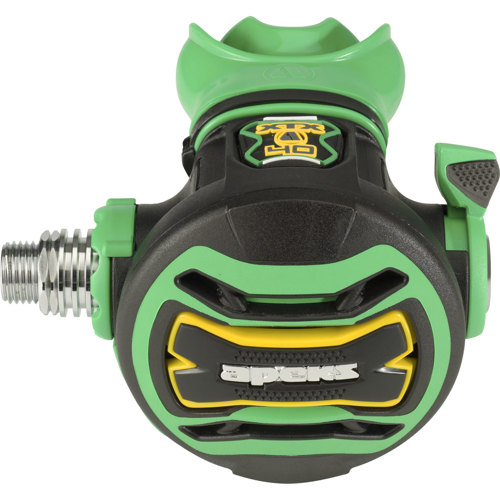

Apeks XTX40/DS4 DIN Oxygen Regulator
SKU: APXXTX4DS4D MFR: RG114113
Earn VIP Reward PointsKey Features
- Apeks XTX40/DS4 regulator ensures reliable, consistent airflow at any depth for safer dives.
- Enjoy effortless breathing with the pneumatically balanced 2nd stage, reducing dive fatigue.
- Cold-water ready, this scuba regulator's environmentally sealed 1st stage prevents freezing.
- Nitrox compatible up to 100% O2, the Apeks regulator enhances safety for enriched air dives.
- Customize your dive with the adjustable breathing resistance on this high-performance regulator.
- Durable chrome-plated brass 1st stage offers lasting performance for years of underwater use.
Free Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Accessories
Specs
Protection
Q&A
About Apeks XTX40/DS4 DIN Oxygen Regulator
The XTX technology is available in an oxygen model, designed for oxygen percentages between 0-100%. This compatibility and reliability make it an ideal choice for technical divers performing high O2 percentage deco stops. With green and yellow cosmetic pieces, the regulator is easily identifiable as dedicated to high-percentage oxygen use. It features a unique over-balanced diaphragm design, providing superior performance at depth. The compact DS4 first stage has four medium-pressure and one high-pressure port, and an environmental dry system to prevent ice build-up and contamination.
The pneumatically balanced second stage ensures smooth and easy breathing. XTX purge buttons offer a 2-stage progressive purge for controlled flow rate or full effect. A large venturi lever with a soft touch rubber grip makes it easy to locate and use. The opening effort control knob ensures divers remain in control, while active protection against infection is provided through an additive in all molded parts.
A silicone exhaust valve enhances the regulator's breathing performance, and the Comfo-Bite mouthpiece virtually eliminates jaw fatigue. The patented heat exchanger dissipates cold caused by gas expansion and draws in ambient water warmth. The optional Diver Changeable Exhaust (DCE) system allows switching between small and large exhaust tees, catering to underwater photographers or those seeking a compact regulator.
The regulator can be converted from a right-handed to a left-handed hose configuration, but this must be done by an Apeks Authorized Service Technician. A braided flexi-hose is included, offering lighter weight, more flexibility, and durability. The regulator weighs 38.8 oz (1100g) and comes with an owner's manual.
Apeks XTX40/DS4 DIN Oxygen Regulator Features
- XTX Technology Available-In Oxygen Model
- Built for Oxygen Percentages: 0 to 100%
- Compatibility Coupled w/Excellent Reliability
- Choice for Technical Divers Doing High O2 Percentage Deco Stops
- Green & Yellow Cosmetic: Clearly ID Regulator Dedicated for High-% Oxygen Use
- Suitable for Cold Water Use Below 50 Degree F (10 Degree C)
- Weight: 38.8 oz (1100g)
- Owner's Manual
- First Stage: DST:
- Unique Over-Balanced Diaphragm First Stage
- Chromed Marine Grade Brass Construction
- Environmentally Sealed to Keep-Out Contaminates
- Delicate Internal Parts Not Exposed to Contaminants: Salt, Sand, Chlorine or Pool Acids
- Requires Less-Maintenance
- Secondary Environmental Diaphragm Membrane:
First Stage Completely-Sealed-Off
Dry Ambient Pressure Chamber
Second-Layer of Corrosion Resistance
Prevention of Freezing-In Cold-Water-Use - Four 3/8" UNF (Unified National Fine) Medium Pressure Ports
- One 7/16" UNF High Pressure Port
- HP & MP Ports Angled for Optimum Hose Routing
- Second Stage: ATX40
- Same Features & Performance as XTX40 Second Stage
- Pneumatically-Balanced Second Stage
- Smooth, Easy Breathing
- Purge Button:
Large & Easy to Operate
2-Stage Progressive Purge
Press Purge On-Side for Lower Flow Rate
Useful for Filling Lift Bags etc.
Press Center for Full Purge
Great for Regulator Clearing etc. - Large Venturi Lever w/Soft Touch Rubber Grip
- Easy-to-Grip Opening Effort Control Knob
- Silicone Exhaust Valve Improves Breathing Performance
- Comfo-Bite Mouthpiece Virtually Eliminates Jaw-Fatigue
- Heat Exchanger (patented):
Dissipates Cold Caused by Gas Expansion
Draws in Warmth of Ambient Water
Helps Prevent Freeze-Ups - Active Protection Against Infection:
Additive that Kills MRSA
Protects Against E-Coli, Bacteria and Fungi
Very Effective Against Viruses, Mold, Yeast and Algae - Optional Innovative Diver Changeable Exhaust System (DCE)
- Supplied w/Narrow Exhaust Tee
- Reversible Second Stage: Left- or Right-Hand Gas Supply Configuration
- Flexible Nylon Braided Hose
Warranty Information
This product has a limited lifetime warranty.
